Toyota CROWN — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

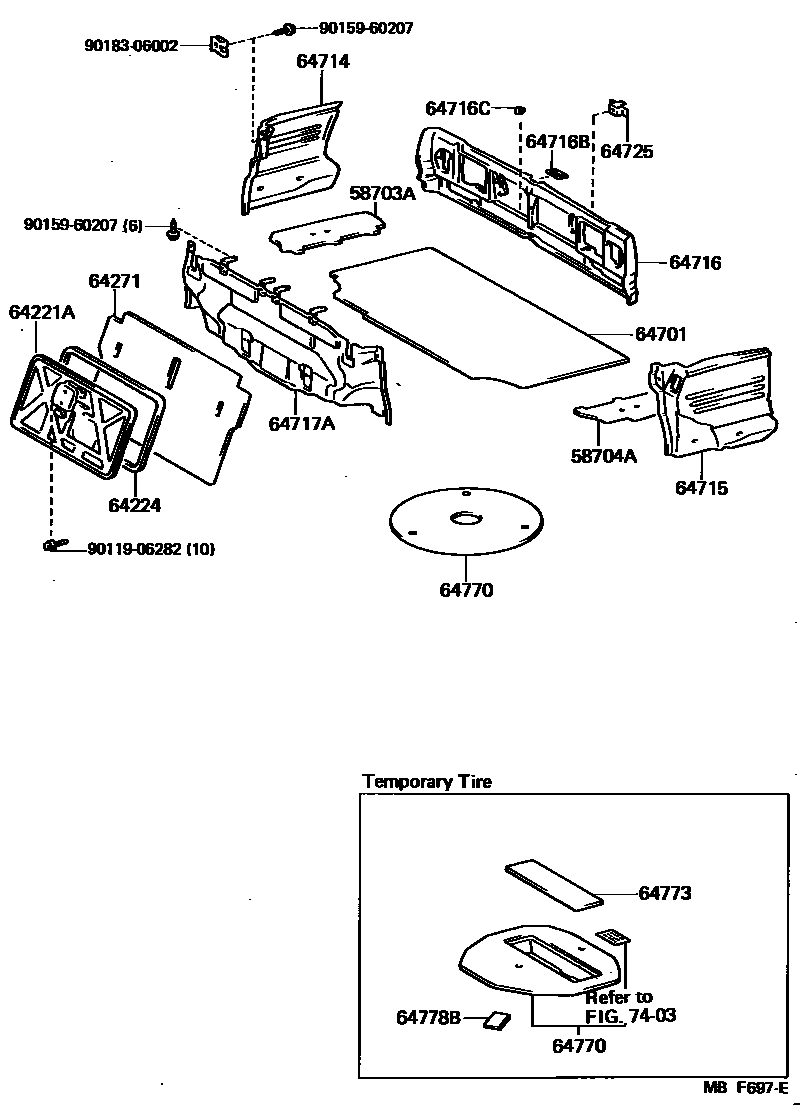

Parts diagram
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58703-30020i198308-198708
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
main58704-30050i198308-198708
64221APANEL, REAR SEAT CUSHION SUPPORT
main64221-30080i198308-198708
main64221-30090i198308-198708
*EXT
64224PAD, REAR SEAT CUSHION SUPPORT PANEL
main64224-30020i198308-198708
64271BOARD, ROOM PARTITION, NO.1
main64271-30100i198308-198708
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
main64711-30240-03i198308-198509
GRAY,GRAY
main64711-30240-13i198509-198708
GRAY,GRAY
main64711-30250-03i198308-198509
GRAY,GRAY
main64711-30250-13i198509-198708
GRAY,GRAY
64714COVER, LUGGAGE COMPARTMENT, RH
main64714-30090-03i198308-198509
GRAY,GRAY
main64714-30090-13i198509-198708
GRAY,GRAY
64715COVER, LUGGAGE COMPARTMENT, LH
main64715-30090-03i198308-198509
GRAY,GRAY
main64715-30090-13i198509-198708
GRAY,GRAY
main64715-30100-03i198308-198509
GRAY,GRAY
main64715-30100-13i198509-198708
GRAY,GRAY
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
main64716-30050-03i198308-198509
GRAY,GRAY
main64716-30050-13i198509-198708
GRAY,GRAY
main64716-30060-03i198308-198509
GRAY,GRAY
main64716-30060-13i198509-198708
GRAY,GRAY
main64716-30070i198509-198708
*EXT
main64716-30080i198509-198708
64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER
main64749-30010-03i198308-198509
GRAY,GRAY
main64749-30010-13i198509-198708
GRAY,GRAY
main64749-30020-03i198308-198509
GRAY,GRAY
main64749-30020-13i198509-198708
GRAY,GRAY
main64749-30030i198509-198708
*EXT
main64749-30040i198509-198708
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05004-33×7i198509-198708
GRAY,GRAY
main90467-06161-03×9i198308-198509
GRAY,GRAY
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-30100-03i198308-198509
GRAY,GRAY
main64717-30100-13i198509-198708
GRAY,GRAY
main64717-30110i198308-198509
main64717-30111i198509-198708
*EXT
64725RETAINER, LUGGAGE COMPARTMENT COVER, NO.1
main64725-30070×2i198308-198708
64770COVER ASSY, SPARE WHEEL
main64770-30050i198308-198412
main64770-30060i198308-198408
W/TEMPORARY TYPE
main64770-30070i198408-198708
W/TEMPORARY TYPE
64773COVER, SPARE WHEEL, NO.2
main64773-30020i198308-198509
W/TEMPORARY TIRE
64778BPROTECTOR, SPARE WHEEL
main64778-14020i198308-198509
W/TEMPORARY TIRE
7403CAUTION PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 74-03
9011906282
main90119-06282
9015960207
main90159-60207
9018306002
main90183-06002

20 parts on this diagram · 2 diagrams in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CROWN

This section contains 26 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CROWN. Key components include: COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, LH, PANEL, REAR SEAT CUSHION SUPPORT.
