Toyota CROWN — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

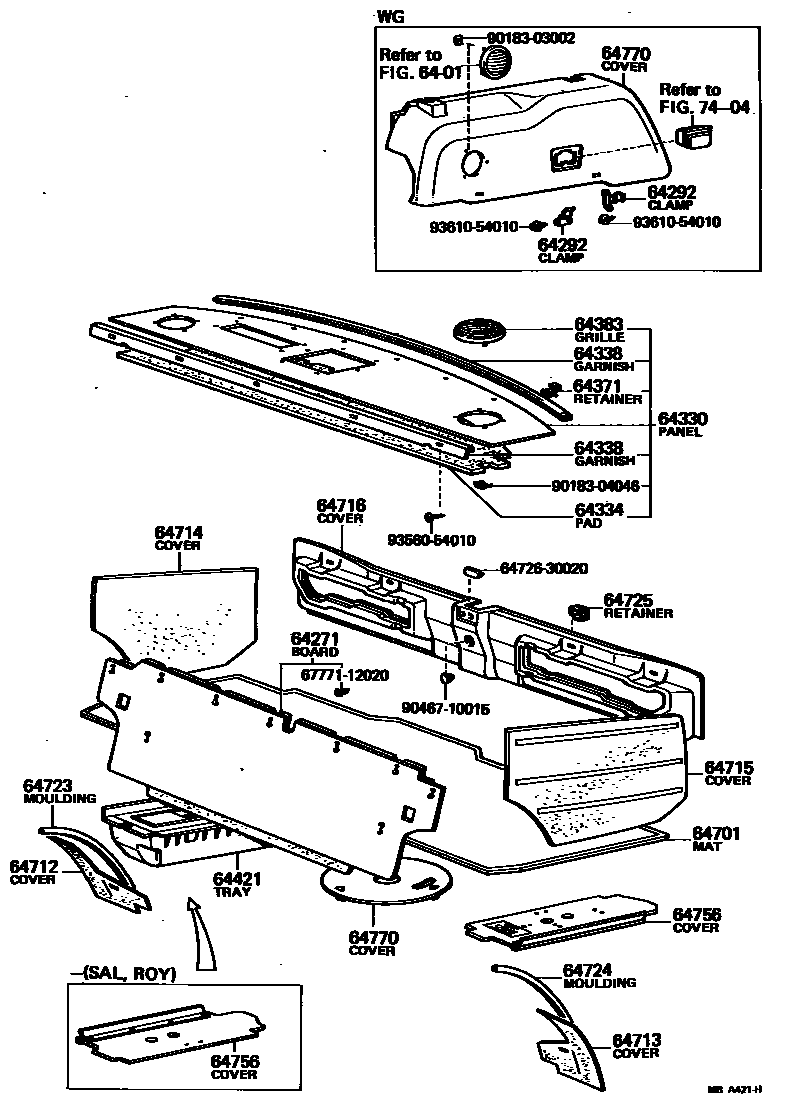

Parts diagram
6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
→ Go to FIG 64-01
64271BOARD, ROOM PARTITION, NO.1
main64270-30040i197909-198307
64292CLAMP, JACK HANDLE
main64761-91701×2i197909-198307
FR
main64762-91701i197909-198307
RR
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-30360-04i197909-198108
BLUE,BLUE,TRIM8#
main64330-30360-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64330-30361-03i198108-198307
GRAY,GRAY,TRIM1#
main64330-30361-05i198108-198307
BEIGE,BEIGE,TRIM4#
main64330-30370-04i197909-198108
BLUE,BLUE,TRIM8#
main64330-30370-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64330-30380-02i197909-198108
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main64330-30380-04i197909-198108
W/*SPG,BLUE,BLUE,TRIM8#
main64330-30380-05i197909-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main64330-30381-03i198108-198307
GRAY,GRAY,TRIM1#
main64330-30381-04i198108-198307
BLUE,BLUE,TRIM8#
main64330-30381-05i198108-198307
BEIGE,BEIGE,TRIM4#
main64330-30390-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main64330-30390-04i197909-198108
BLUE,BLUE,TRIM8#
main64330-30390-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64330-30391-03i198108-198307
GRAY,GRAY,TRIM1#
main64330-30391-04i198108-198307
BLUE,BLUE,TRIM8#
main64330-30391-05i198108-198307
BEIGE,BEIGE,TRIM4#
main64330-30420-02i198010-198108
W/RR POWER SEAT,DARK WINE,RED/MAROON,TRIM3#
main64330-30420-04i198010-198108
W/RR POWER SEAT,BLUE,BLUE,TRIM8#
main64330-30420-05i198010-198108
W/RR POWER SEAT,GREIGE,BEIGE,TRIM4#
main64330-30421-03i198108-198307
GRAY,GRAY,TRIM1#
main64330-30421-04i198108-198307
BLUE,BLUE,TRIM8#
main64330-30421-05i198108-198307
BEIGE,BEIGE,TRIM4#
main64330-30430-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main64330-30430-04i197909-198108
BLUE,BLUE,TRIM8#
main64330-30430-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64330-30431-03i198108-198307
GRAY,GRAY,TRIM1#
main64330-30431-04i198108-198307
BLUE,BLUE,TRIM8#
main64330-30431-05i198108-198307
BEIGE,BEIGE,TRIM4#
main64330-30440-02i197909-198108
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main64330-30440-04i197909-198108
W/*SPG,BLUE,BLUE,TRIM8#
main64330-30440-05i197909-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main64330-30441-03i198108-198307
GRAY,GRAY,TRIM1#
main64330-30441-04i198108-198307
BLUE,BLUE,TRIM8#
main64330-30441-05i198108-198307
BEIGE,BEIGE,TRIM4#
main64330-30450-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main64330-30450-04i197909-198108
BLUE,BLUE,TRIM8#
main64330-30450-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64330-30451-03i198108-198307
*EXT,GRAY,GRAY,TRIM1#
main64330-30451-04i198108-198307
*EXT,BLUE,BLUE,TRIM8#
main64330-30451-05i198108-198307
*EXT,BEIGE,BEIGE,TRIM4#
main64330-30460-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main64330-30460-04i197909-198108
BLUE,BLUE,TRIM8#
main64330-30460-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64330-30470-02i197909-198108
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main64330-30470-04i197909-198108
W/*SPG,BLUE,BLUE,TRIM8#
main64330-30470-05i197909-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main64330-30471-03i198108-198307
GRAY,GRAY,TRIM1#
main64330-30471-04i198108-198307
BLUE,BLUE,TRIM8#
main64330-30471-05i198108-198307
BEIGE,BEIGE,TRIM4#
main64330-30480-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main64330-30480-04i197909-198108
BLUE,BLUE,TRIM8#
main64330-30480-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64330-30481-03i198108-198307
GRAY,GRAY,TRIM1#
main64330-30481-04i198108-198307
BLUE,BLUE,TRIM8#
main64330-30481-05i198108-198307
BEIGE,BEIGE,TRIM4#
main64330-30500-03i198108-198307
W/LEATHER SEAT,GRAY,GRAY,TRIM1#
main64330-30500-04i198108-198307
W/LEATHER SEAT,BLUE,BLUE,TRIM8#
main64330-30500-05i198108-198307
W/LEATHER SEAT,BEIGE,BEIGE,TRIM4#
main64330-30520-03i198108-198307
*EXT,GRAY,GRAY,TRIM1#
main64330-30520-04i198108-198307
*EXT,BLUE,BLUE,TRIM8#
main64330-30520-05i198108-198307
*EXT,BEIGE,BEIGE,TRIM4#
64334PAD, PACKAGE TRAY TRIM SILENCER
main64334-30050i198005-198307
main64334-30070i198005-198307
64338GARNISH, PACKAGE TRAY PANEL TRIM
main64337-30040-02i197909-198108
FR,DARK WINE,RED/MAROON,TRIM3#
main64337-30040-03i198108-198307
FR,GRAY,GRAY,TRIM1#
main64337-30040-04i198108-198307
FR,BLUE,BLUE,TRIM8#
main64337-30040-05i197909-198108
FR,GREIGE,BEIGE,TRIM4#
main64337-30040-15i198108-198307
FR,BEIGE,BEIGE,TRIM4#
main64337-30060-03i198108-198307
*EXT,FR,GRAY,GRAY,TRIM1#
main64337-30060-04i198108-198307
*EXT,FR,BLUE,BLUE,TRIM8#
main64337-30060-15i198108-198307
*EXT,FR,BEIGE,BEIGE,TRIM4#
main64339-30020-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main64339-30020-03i198108-198307
GRAY,GRAY,TRIM1#
main64339-30020-04i197909-198108
BLUE,BLUE,TRIM8#
main64339-30020-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64339-30020-15i198108-198307
BEIGE,BEIGE,TRIM4#
main64339-30030-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main64339-30030-03i198108-198307
GRAY,GRAY,TRIM1#
main64339-30030-04i198108-198307
BLUE,BLUE,TRIM8#
main64339-30030-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64339-30030-15i198108-198307
BEIGE,BEIGE,TRIM4#
main64339-30040-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main64339-30040-03i198108-198307
GRAY,GRAY,TRIM1#
main64339-30040-04i198108-198307
BLUE,BLUE,TRIM8#
main64339-30040-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64339-30040-15i198108-198307
BEIGE,BEIGE,TRIM4#
main64339-30050-04i197909-198108
BLUE,BLUE,TRIM8#
main64339-30050-05i197909-198108
GREIGE,BEIGE,TRIM4#
64371RETAINER, PACKAGE TRAY TRIM
main64371-30040×6i197909-198307
64383GRILLE, SPEAKER, REAR
main64383-30030-02×2i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main64383-30030-03×2i198108-198307
GRAY,GRAY,TRIM1#
main64383-30030-04×2i198108-198307
BLUE,BLUE,TRIM8#
main64383-30030-05×2i197909-198108
GREIGE,BEIGE,TRIM4#
main64383-30030-15×2i198108-198307
BEIGE,BEIGE,TRIM4#
64421TRAY SUB-ASSY, LUGGAGE COMPARTMENT
main64490-30010i197909-198307
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
main64711-30180i197909-198307
main64711-30190i197909-198307
main64711-30200i197909-198307
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
main64721-30050i197909-198307
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
main64722-30040i197909-198307
64714COVER, LUGGAGE COMPARTMENT, RH
main64714-30080i197909-198307
64715COVER, LUGGAGE COMPARTMENT, LH
main64715-30080i197909-198307
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
main64716-30020i197909-198108
main64716-30030i197909-198108
main64716-30031i198108-198307
main64716-30040i198108-198307
64723MOULDING, LUGGAGE COMPARTMENT TRIM, RH
main64724-30040i197909-198307
64724MOULDING, LUGGAGE COMPARTMENT TRIM, LH
main64724-30040i197909-198307
64725RETAINER, LUGGAGE COMPARTMENT COVER, NO.1
main64725-30070×6i197909-198307
64756COVER, LUGGAGE COMPARTMENT SIDE
main58703-30010i197909-198307
RH
main58704-30030i197909-198307
LH
64770COVER ASSY, SPARE WHEEL
main64770-30050i197909-198307
main64770-91591-04i198108-198307
BLUE,BLUE,TRIM8#
main64770-91591-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64770-91591-15i198108-198307
BEIGE,BEIGE,TRIM4#
main64770-91592-04i198108-198307
BLUE,BLUE,TRIM8#
main64770-91592-15i198108-198307
BEIGE,BEIGE,TRIM4#
7404ASH RECEPTACLE
→ Go to FIG 74-04
6472630020PAD, HOUSING SPARE WHEEL SILENCER, FRONT
main64726-30020
6777112020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12020
9018303002
main90183-03002
9018304046
main90183-04046
9046710015
main90467-10015
9356054010
main93560-54010
9361054010
main93610-54010

28 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CROWN

This section contains 28 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CROWN. Key components include: INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING, BOARD, ROOM PARTITION, NO.1, CLAMP, JACK HANDLE, PANEL ASSY, PACKAGE TRAY TRIM, PAD, PACKAGE TRAY TRIM SILENCER.
