Toyota CROWN — NIGHT VIEW

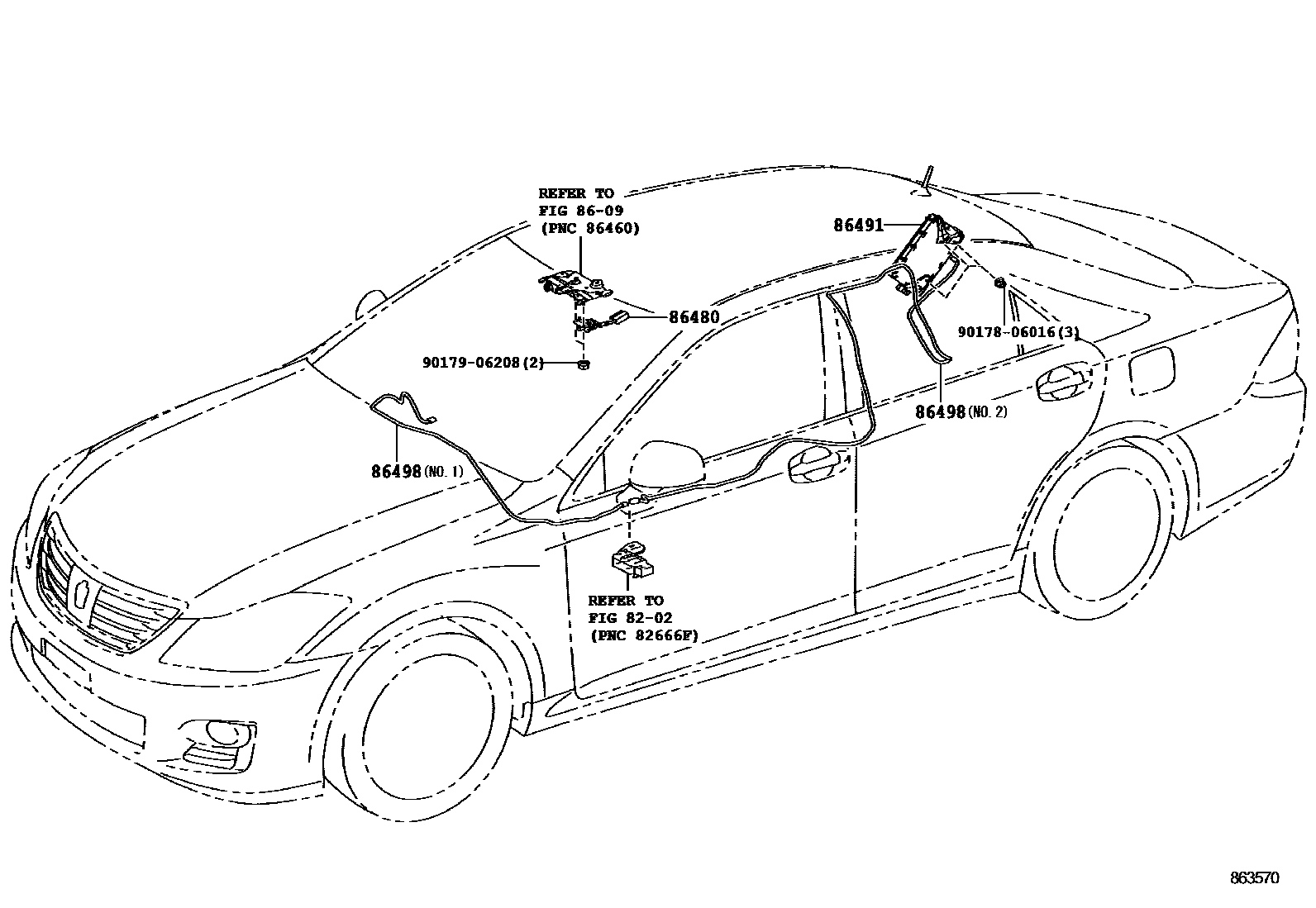

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

8609LANE-KEEPING ASSIST

→ Go to FIG 86-09

86480CAMERA ASSY, NIGHT VIEW

main86480-30030i200805-201002

86491COMPUTER, NIGHT VIEW, NO.1

main86491-30010i200805-201002

86498WIRE, NIGHT VIEW

main86498-30010i200805-201002

main86498-30020i201002-201212

9017806016

main90178-06016

9017906208

main90179-06208

7 parts on this diagram · 1 diagram in section

NIGHT VIEW for Toyota CROWN

This section contains 7 genuine Toyota parts for the NIGHT VIEW system of the Toyota CROWN. Key components include: WIRING & CLAMP, LANE-KEEPING ASSIST, CAMERA ASSY, NIGHT VIEW, COMPUTER, NIGHT VIEW, NO.1, WIRE, NIGHT VIEW.
