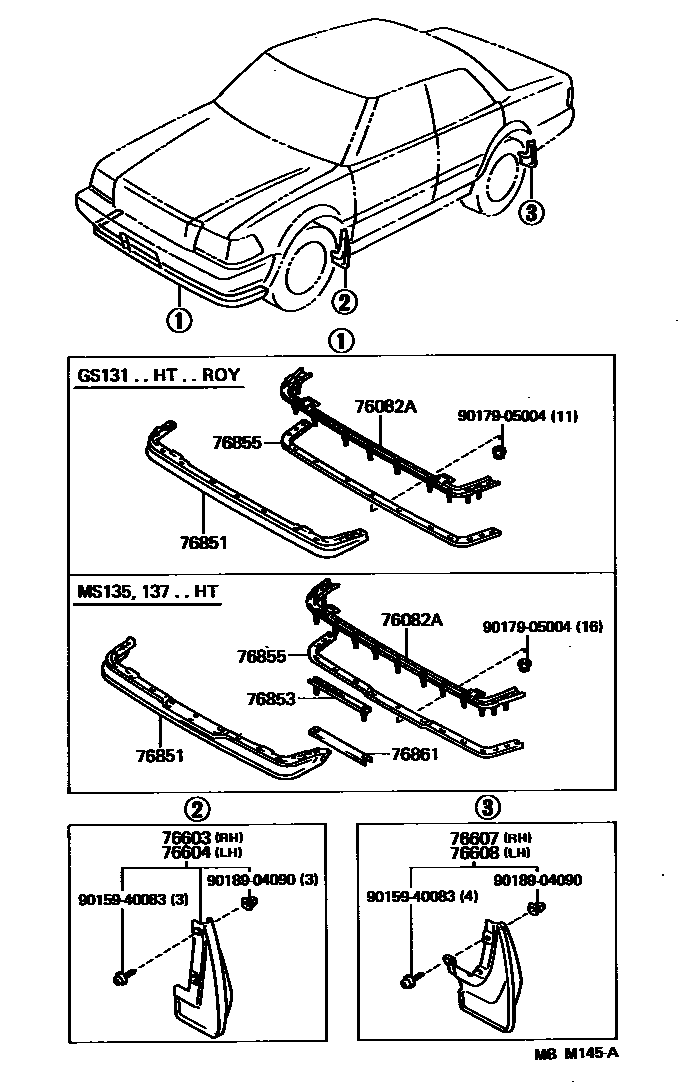

Toyota CROWN — MUDGUARD & SPOILER
76082ARETAINER SET, FRONT SPOILER
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
BLACK,202
GRAY MICA.M,170
DARK BLUE M,869
WARM SILVER METALLIC,24G
SUPER WHITE 4,050
DARK BLUISH GRAY M,26N
SUPER SILVER 2 M,166
main76621-39125-01iGS130,131,LS130..(HT,SED)..(SAL,SALEX,SPE,SSL); GS130,LS130..SED..SDX198709-198809
BLACK,103 ,167 ,202 ,3H3 ,606 ,869; BLACK,167 ,202 ,3H3 ,869
GRAY MICA.M,170
SUPER WHITE 2,040
WARM SILVER METALLIC,24G
BLACK,167 ,202 ,3H3 ,869
GRAY MICA.M,170
SUPER WHITE 2,040
WARM SILVER METALLIC,24G
main76621-39165-01iGS130,LS130..SED..SDX..(DSL,HTWC,TD,TDE); GS131,LS131..SAL,SALEX,SPE,SSL198908-199110
BLACK,103 ,202 ,606; BLACK,202
DARK RED MICA,3H3
main76621-39165-03iGS130,131,LS130,131..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE)198908-199110
BLUISH GRAY M,182
DARK BLUE M M,869
SUPER WHITE 4,050
GRAY MICA M,170
WARM SILVER M,24G
DARK BLUISH GRAY M,26N
SUPER SILVER 2 M,166
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
DARK RED MICA,3H3
GRAY MICA.M,170
DARK BLUE M,869
WARM SILVER METALLIC,24G
SUPER WHITE 4,050
DARK BLUISH GRAY M,26N
SUPER SILVER 2 M,166
main76622-39125-01iGS130,131,LS130..HT..(SALEX,SPE,SSL); GS130,LS130..SED..(SAL,SALEX); GS130,LS130..SED..SDX198809-198908
BLACK,103 ,166 ,167 ,202 ,3H3 ,606 ,869; BLACK,166 ,167 ,202 ,3H3 ,869; BLACK,167 ,202 ,3H3 ,869
GRAY MICA.M,170
SUPER WHITE 2,040
WARM SILVER METALLIC,24G
BLACK,167 ,202 ,3H3 ,869
GRAY MICA.M,170
SUPER WHITE 2,040
WARM SILVER METALLIC,24G
main76622-39165-01iGS130,LS130..SED..SDX..(DSL,HTWC,TD,TDE); GS131,LS131..SAL,SALEX,SPE,SSL198908-199110
BLACK,103 ,202 ,606; BLACK,202
DARK RED MICA,3H3
main76622-39165-03iGS130,131,LS130,131..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE)198908-199110
BLUISH GRAY M,182
DARK BLUE M,869
main76622-39165-08iGS130,131,LS130,131..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE)198908-199008
SUPER WHITE 4,050
main76622-39165-13iGS130,131,LS130,131..(HT,SED)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE)198908-199008
GRAY MICA M,170
WARM SILVER M,24G
DARK BLUISH GRAY M,26N
SUPER SILVER 2 M,166
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
main76625-39185-01iGS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX); GS130,131,LS130..HT; GS130,LS130..SED..SDX198809-198908
BLACK,103 ,166 ,167 ,202 ,3H3 ,606 ,869; BLACK,166 ,167 ,202 ,3H3 ,869; BLACK,167 ,202 ,3H3 ,869
main76625-39185-02iGS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC)..NOB; GS130..SDX..TWLPG198908-199110
main76625-39185-03iGS130,MS130..SDX..(LPG,TWLPG); GS131..NOB;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB198709-199110
main76625-39185-04iGS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC)..NOB; GS130..SDX..TWLPG198908-199110
main76625-39185-08iGS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..NOB; MS130..SDX198709-198908
WARM SILVER METALLIC,24G
main76625-39185-18iGS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC)..NOB; GS130..SDX..TWLPG198908-199110
main76625-39185-23iGS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC)..NOB; GS130..SDX..TWLPG198908-199110
DARK BLUISH GRAY M,26N
main76625-39185-43iGS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,HTWC,SPC,TD,TDE,TWC); GS130..SDX..TWLPG198908-199110
BLACK,167 ,202 ,3H3 ,869
GRAY MICA.M,170
SUPER WHITE 2,040
WARM SILVER METALLIC,24G
DARK RED MICA,3H3
SUPER SILVER 2 M,166
DARK BLUE M,869
SUPER WHITE 4,050
GRAY MICA M,170
WARM SILVER M,24G
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
main76626-39185-01iGS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL)..NOB; GS130,LS130..SED..SDX; MS130..SDX198709-198809
main76626-39185-02iGS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC)..NOB; GS130..SDX..TWLPG198908-199110
main76626-39185-03iGS130,MS130..SDX..(LPG,TWLPG); GS131..NOB;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB198709-199110
main76626-39185-04iGS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC)..NOB; GS130..SDX..TWLPG198908-199110
main76626-39185-08iGS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..NOB; MS130..SDX198709-198908
WARM SILVER METALLIC,24G
main76626-39185-18iGS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC)..NOB; GS130..SDX..TWLPG198908-199110
main76626-39185-23iGS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC)..NOB; GS130..SDX..TWLPG198908-199110
DARK BLUISH GRAY M,26N
main76626-39185-43iGS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,HTWC,SPC,TD,TDE,TWC); GS130..SDX..TWLPG198908-199110
BLACK,167 ,202 ,3H3 ,869
GRAY MICA.M,170
SUPER WHITE 2,040
WARM SILVER METALLIC,24G
DARK RED MICA,3H3
SUPER SILVER 2 M,166
DARK BLUE M,869
SUPER WHITE 4,050
GRAY MICA M,170
WARM SILVER M,24G
76851COVER, FRONT SPOILER
76853RETAINER, FRONT SPOILER, UPPER RH
76855RETAINER, FRONT SPOILER, LOWER NO.1 CENTER
76861RETAINER, FRONT SPOILER, LOWER NO.1
9015940083
main90159-40083
9017905004
main90179-05004
9018904090
main90189-04090
12 parts on this diagram · 2 diagrams in section
MUDGUARD & SPOILER for Toyota CROWN
This section contains 28 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota CROWN. Key components include: RETAINER SET, FRONT SPOILER, MUDGUARD SUB-ASSY, FRONT FENDER, RH, MUDGUARD SUB-ASSY, FRONT FENDER, LH, MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH, MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH.
