Toyota CROWN — MOUNTING

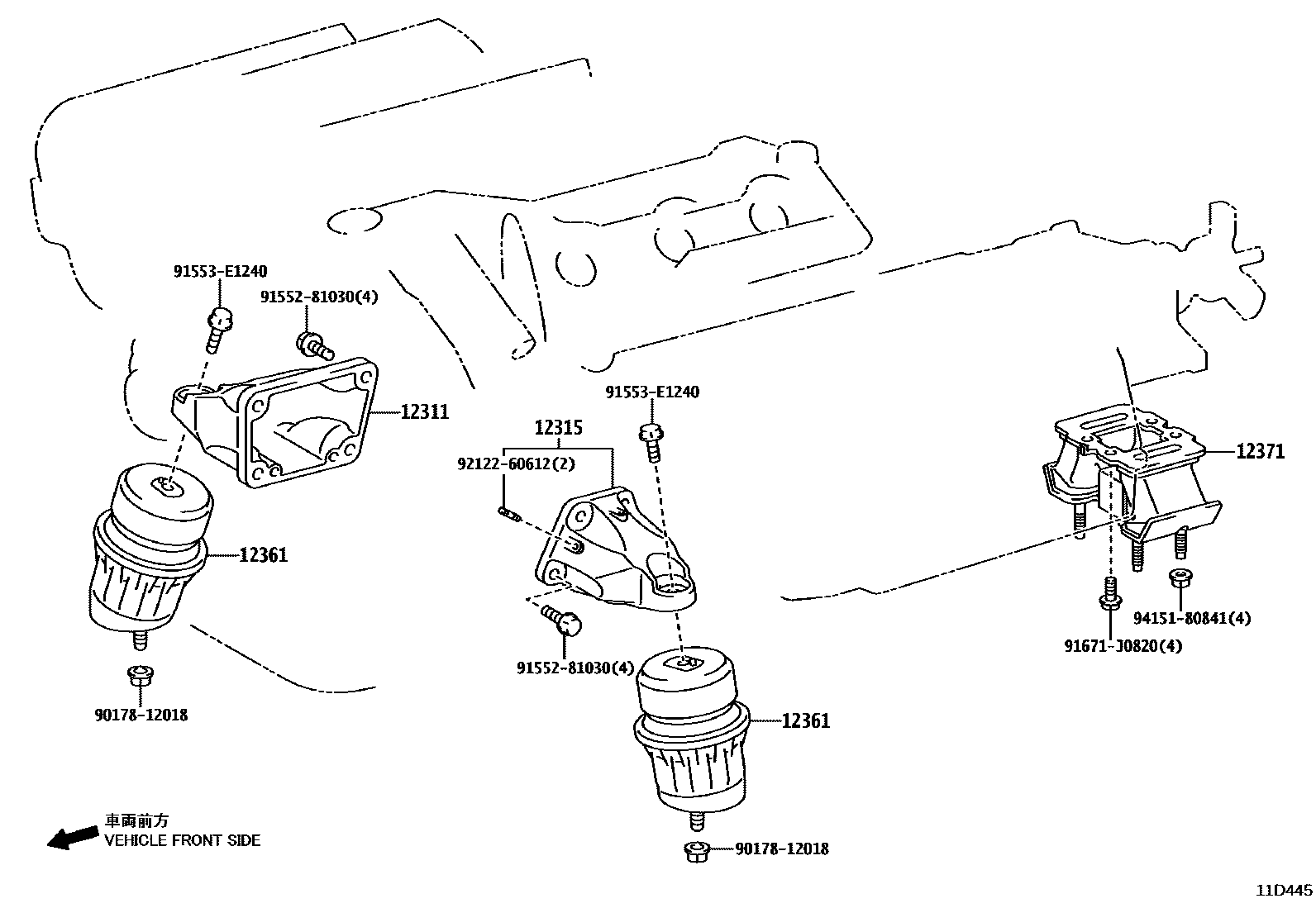

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31040i200802-201002

main12311-31050i201002-201212

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-31010i201002-201212

main12302-31020i201002-201212

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31100×2i201002-201212

main12361-31110×2i200802-200905

main12361-31111×2i201002-201212

main12361-31200×2i201002-201212

main12361-31250×2i200802-201002

main12361-31251×2i201207-201212

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31070i201002-201212

main12371-31081i201002-201212

9017812018

main90178-12018

9155281030

main91552-81030

91553E1240

main91553-E1240

91671J0820

main91671-J0820

9212260612

main92122-60612

9415180841

main94151-80841

10 parts on this diagram · 3 diagrams in section

MOUNTING for Toyota CROWN

This section contains 21 genuine Toyota parts for the MOUNTING system of the Toyota CROWN. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, BRACKET, ENGINE MOUNTING, REAR NO.2, INSULATOR, ENGINE MOUNTING, FRONT.
