Toyota CROWN — MOUNTING

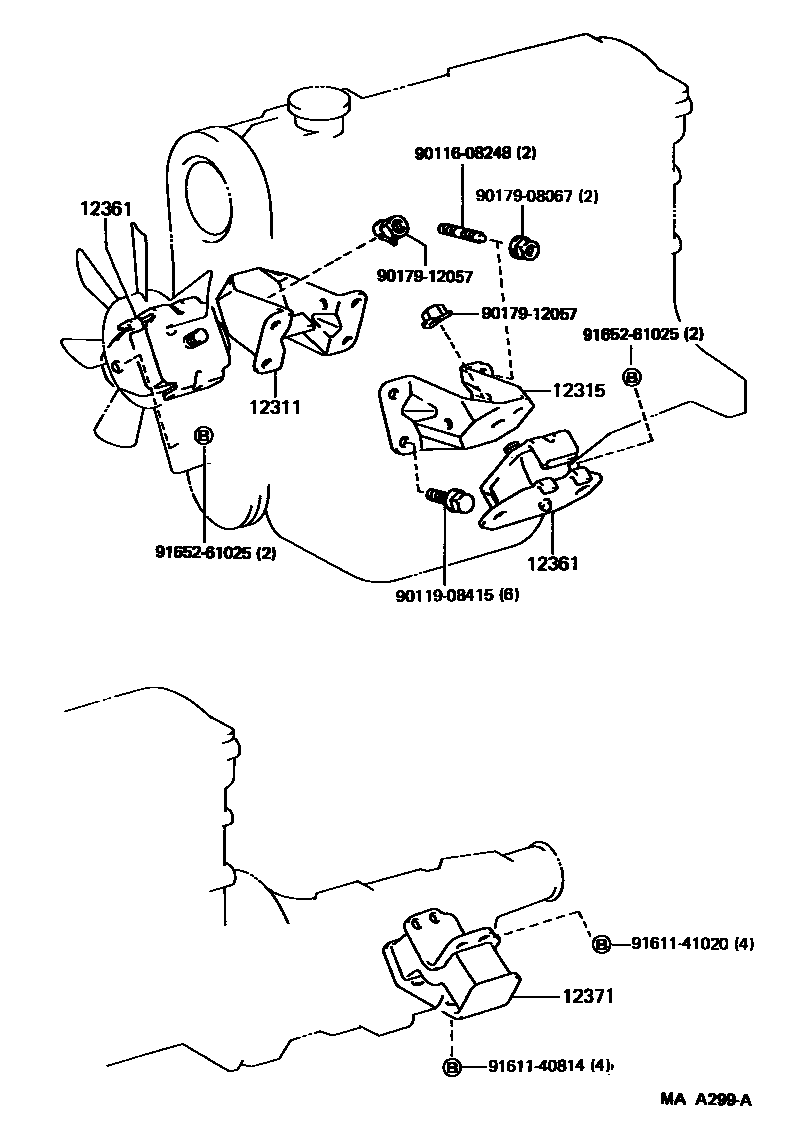

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-41080198709-199110

main12311-46030199008-199110

main12311-50030198908-199110

main12311-54090198709-198908

main12311-54160198908-199110

main12311-70060198709-198908

main12311-70100198709-199110

main12311-71010198709-199110

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-41090198709-199110

main12315-46030199008-199110

main12315-50020198908-199110

main12315-70040198709-198908

main12315-70070198709-199110

main12315-71010198709-199110

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-41120198709-199110

main12361-46030199008-199110

main12361-50030198908-199110

main12361-54130198709-199001

main12361-54131199001-199110

main12361-70080198709-199110

main12361-70110198709-198908

main12361-70140198809-198911

main12361-70141198911-199011

main12361-70142199011-199110

main12361-73020198709-198906

main12361-73030198906-199110

main12362-46020199008-199110

main12362-50010198908-199110

main12362-54020198709-199001

main12362-54021199001-199110

main12362-73030198709-198906

main12362-73040198906-199110

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020198709-199110

main12371-34030198709-199106

main12371-41070198709-198908

main12371-46010199008-199110

main12371-50020198908-199110

main12371-54023198709-199110

main12371-70030198908-199110

main12371-73010199106-199110

9011608248

main90116-08248

9011908415

main90119-08415

9017908067

main90179-08067

9017912057

main90179-12057

9161140814

main91611-40814

9161141020

main91611-41020

9165261025

main91652-61025

11 parts on this diagram · 10 diagrams in section

MOUNTING for Toyota CROWN

This section contains 49 genuine Toyota parts for the MOUNTING system of the Toyota CROWN. Key components include: ABSORBER SUB-ASSY, ENGINE MOUNTING, BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1.
