Toyota CROWN — MOUNTING

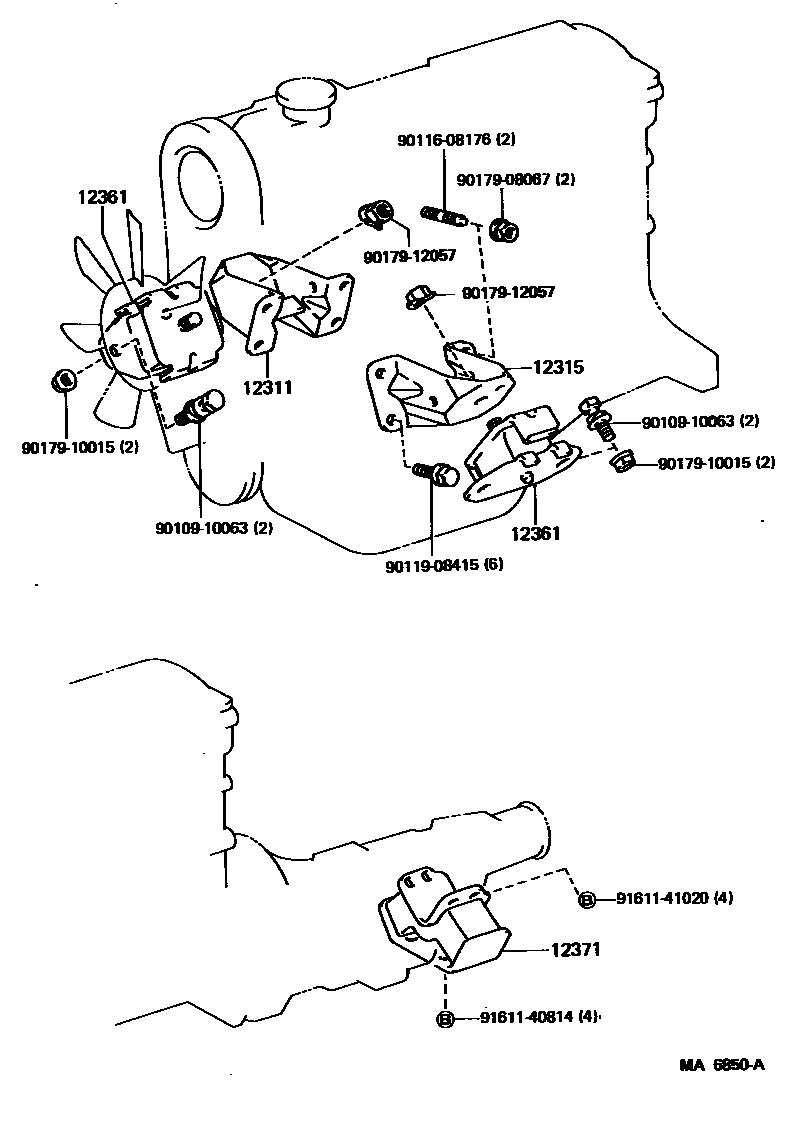

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-41070i198308-198408

main12311-42010i198408-198708

main12311-54090i198308-198708

main12311-70030i198308-198509

main12311-70060i198509-198708

main12311-71010i198308-198708

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54020i198308-198509

W/O PS

main12315-41080i198308-198408

main12315-42010i198408-198708

main12315-70030i198308-198509

main12315-70040i198509-198708

main12315-71010i198308-198708

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-41100×2i198308-198408

main12361-42010×2i198408-198708

main12361-54130i198308-198708

RH

main12361-70010×2i198308-198509

main12361-70011×2i198509-198708

main12361-70040×2i198509-198708

main12361-73010i198308-198708

RH

main12362-54020i198308-198708

LH

main12362-73010i198308-198708

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i198308-198708

main12371-34030i198308-198708

main12371-41070i198308-198708

main12371-54022i198308-198512

main12371-54023i198512-198708

9010910063

main90109-10063

9011608176

main90116-08176

9011908415

main90119-08415

9017908067

main90179-08067

9017910015

main90179-10015

9017912057

main90179-12057

9161140814

main91611-40814

9161141020

main91611-41020

12 parts on this diagram · 7 diagrams in section

MOUNTING for Toyota CROWN

This section contains 36 genuine Toyota parts for the MOUNTING system of the Toyota CROWN. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
