Toyota CROWN — MOUNTING

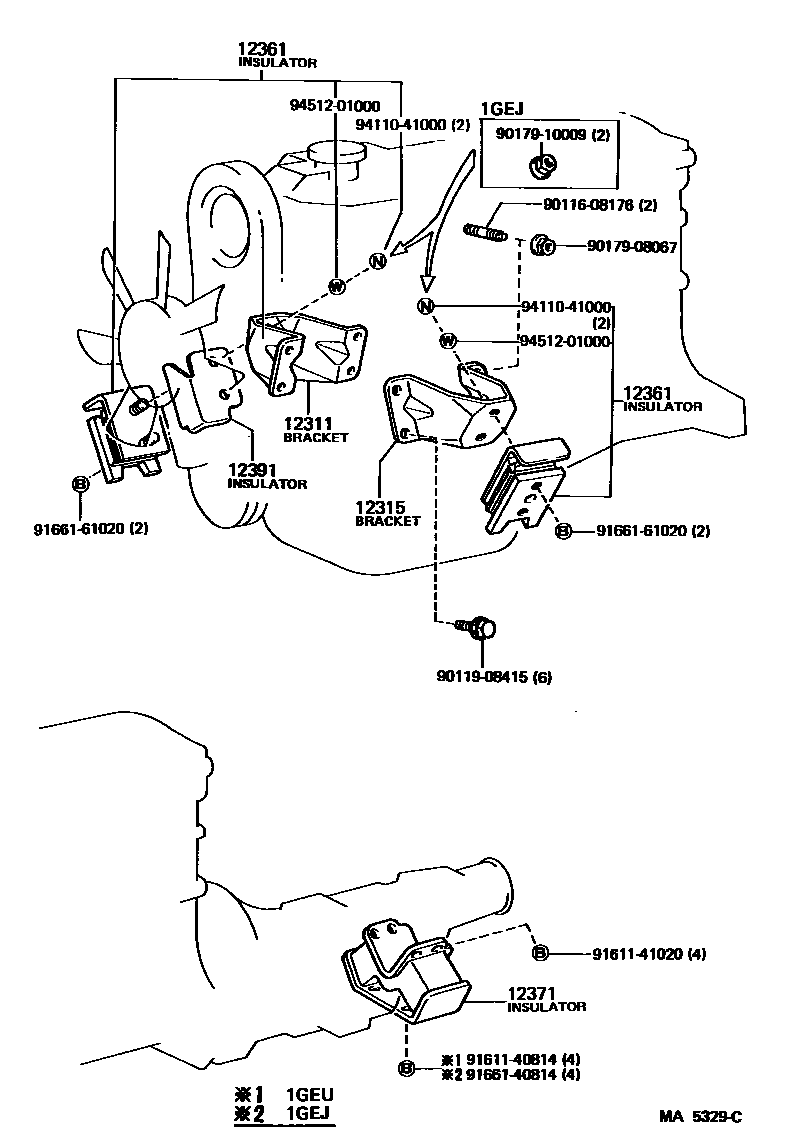

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-41060i197909-198307

main12311-44010i197909-198307

main12311-54010i197909-198208

main12311-54060i198208-198307

main12311-70020i198108-198307

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54011i197909-198307

W/O POWER STEERING

main12315-41050i197909-198307

main12315-44010i197909-198307

main12315-70020i198108-198307

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-44040×2i198012-198307

main12361-49016×2i197909-198012

main12361-49026×2i197909-198307

main12361-54012i198007-198307

RH

main12361-59046i197909-198007

RH

main12362-54012i198007-198307

LH

main12362-59016i197909-198007

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i198010-198307

main12371-41070i198108-198307

main12371-43010i198007-198307

main12371-44020i198012-198307

main12371-45011i197909-198010

main12371-54021i197909-198208

main12371-54022i198208-198307

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-41010i197909-198307

9011608176

main90116-08176

9011908415

main90119-08415

9017908067

main90179-08067

9017910009

main90179-10009

9161140814

main91611-40814

9161141020

main91611-41020

9166140814

main91661-40814

9166161020

main91661-61020

9411041000

main94110-41000

9451201000

main94512-01000

15 parts on this diagram · 5 diagrams in section

MOUNTING for Toyota CROWN

This section contains 30 genuine Toyota parts for the MOUNTING system of the Toyota CROWN. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
