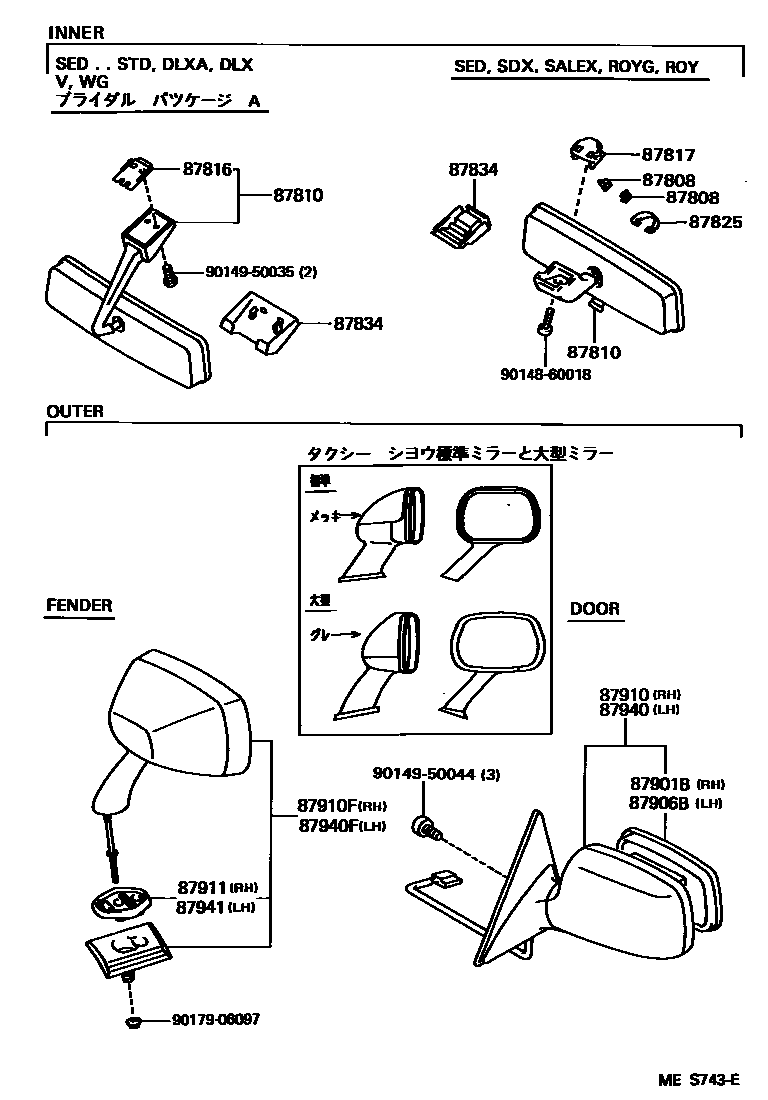

Toyota CROWN — MIRROR
87808HOLDER SUB-ASSY, INNER MIRROR
87810MIRROR ASSY, INNER REAR VIEW
LI.GRAY,TRIM1#
QUARTZ,TRIM4#
LI.BLUE,TRIM8#
LI.GRAY,TRIM1#
main87810-30240-E0iGS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512
QUARTZ,TRIM4#
LI.BLUE,TRIM8#
87816SPRING, INNER REAR VIEW MIRROR
87817SPACER, INNER REAR VIEW MIRROR
87825SPRING, INNER REAR VIEW MIRROR SETTING
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
QUARTZ,TRIM4#
LI.BLUE,TRIM8#
LI.GRAY,TRIM1#
QUARTZ,TRIM4#
LI.BLUE,TRIM8#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
WARM GRAY PEARL MICA,29T
SUPER WHITE 4,050
SUPER WHITE 2,040
WHITE PM,2BU
SUPER SILVER 3 M,176
main87910-30780-B1iGS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC); JZS130,LS130..WG199110-199308
DK.BL.GRAY ME,183; DK.BL.GRAY ME,20U
SILVER ME,199
main87910-30780-C0iGS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512
BLACK,202
MEDIUM BEIGE M,4H6
BEIGE MM,4K9
DK.GREEN M,6K2
main87910-30780-H0iGS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC)199308-199512
DK.TURQUISE.MC,742
main87910-30780-J0iGS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512
DK.BLUE MICA FP,8J5
DK.BLUE MC.,2BQ
87910FMIRROR ASSY, FENDER, RH
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
WARM GRAY PEARL MICA,29T
SUPER WHITE 4,050
SUPER WHITE 2,040
WHITE PM,2BU
SUPER SILVER 3 M,176
main87940-30710-B1iGS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC); JZS130,LS130..WG199110-199308
DK.BL.GRAY ME,183; DK.BL.GRAY ME,20U
SILVER ME,199
main87940-30710-C0iGS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512
BLACK,202
MEDIUM BEIGE M,4H6
BEIGE MM,4K9
DK.GREEN M,6K2
main87940-30710-H0iGS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC)199308-199512
DK.TURQUOISE.MC,742
main87940-30710-J0iGS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512
DK.BLUE MICA FP,8J5
DK.BLUE MC.,2BQ
87940FMIRROR ASSY, FENDER, LH
87941GASKET, OUTER REAR VIEW MIRROR, LH
9014860018
main90148-60018
9014950035
main90149-50035
9014950044
main90149-50044
9017906097
main90179-06097
18 parts on this diagram · 1 diagram in section
MIRROR for Toyota CROWN
This section contains 18 genuine Toyota parts for the MIRROR system of the Toyota CROWN. Key components include: HOLDER SUB-ASSY, INNER MIRROR, MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, SPACER, INNER REAR VIEW MIRROR, SPRING, INNER REAR VIEW MIRROR SETTING.
