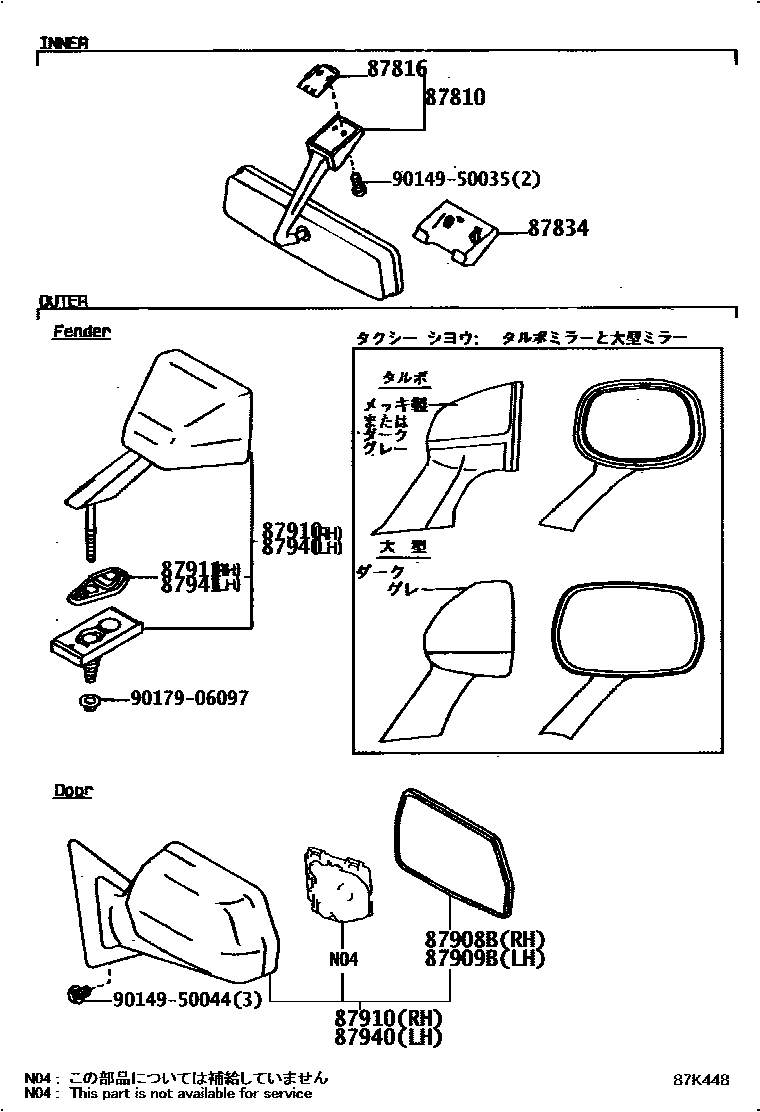

Toyota CROWN — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
BLUE,TRIM8#
main87810-30220-06iGS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE)198709-199110
SABLE,TRIM3#,4#
main87810-30220-06iGS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE)198709-199110
SABLE,TRIM3#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
BLUE,TRIM8#
SABLE,TRIM3#
main87834-30080-04iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX)198709-199110
BLUE,TRIM8#
main87834-30080-06iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX)198709-199110
SABLE,TRIM3#,4#
BLUE,TRIM8#
main87834-30090-06iGS131..HT..ROY..SPC;GS130,131,LS130,MS135,137..HT..(EFI,HTWC,TD,TDE,TWC)198902-198908
SABLE,TRIM3#,4#,8#
SABLE,TRIM3#,4#
87908BMIRROR SUB-ASSY, RH
main87931-30490iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC)198709-199110
87909BMIRROR SUB-ASSY, LH
main87961-30440iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC)198709-199110
87910MIRROR ASSY, OUTER REAR VIEW, RH
87911GASKET, OUTER REAR VIEW MIRROR, RH
main87911-30180iGS136..SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130..(SED,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)198709-199110
87940MIRROR ASSY, OUTER REAR VIEW, LH
*DRC
*DRC
*FRC
*FRC
*FRC
87941GASKET, OUTER REAR VIEW MIRROR, LH
9014950035
main90149-50035
9014950044
main90149-50044
9017906097
main90179-06097
12 parts on this diagram · 1 diagram in section
MIRROR for Toyota CROWN
This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota CROWN. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, RH, MIRROR SUB-ASSY, LH.
