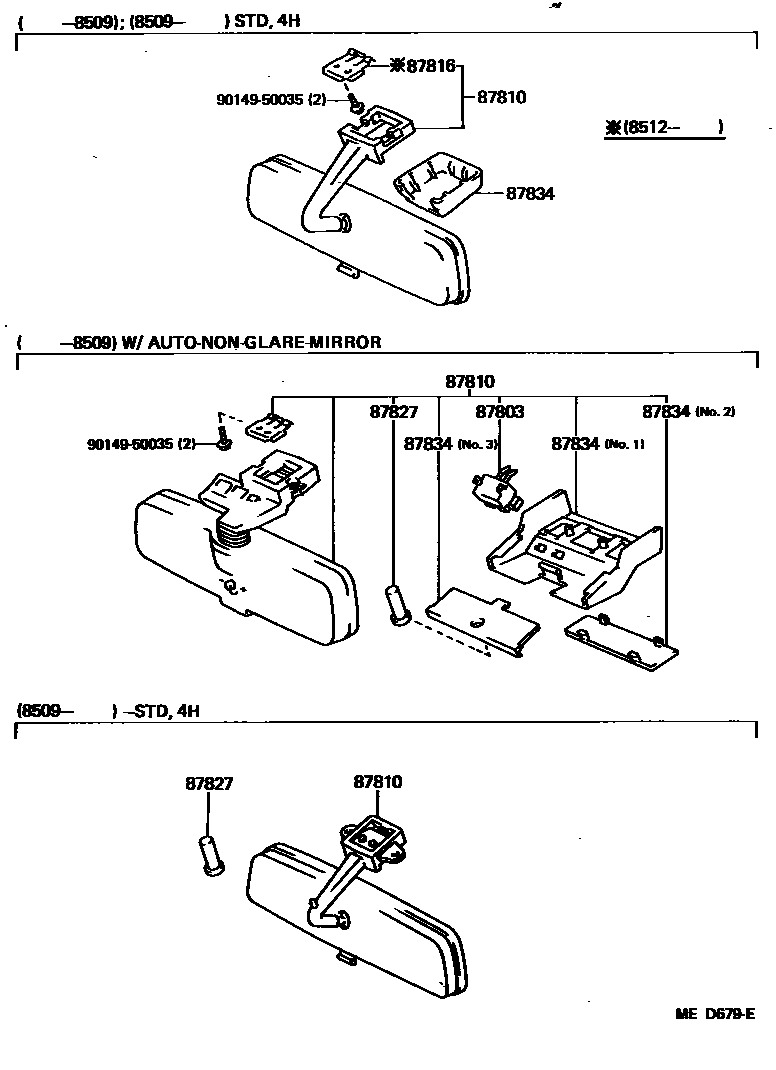

Toyota CROWN — MIRROR
87803SWITCH SUB-ASSY, INNER MIRROR
87810MIRROR ASSY, INNER REAR VIEW
main87810-30190-06iLS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198509-198708
BROWN,BROWN,TRIM4#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
main87810-30190-32iLS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198509-198708
MAROON,MAROON,TRIM3#
W/AUTO-NON-GLARE,DEEP MAROON,RED/MAROON,TRIM3#
W/AUTO-NON-GLARE,BLUE,BLUE,TRIM8#
W/AUTO-NON-GLARE,BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
87816SPRING, INNER REAR VIEW MIRROR
main74372-30030iLS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198512-198708
87827ABSORBER, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
NO.2,W/AUTO-NON-GL.DEEP MAROON,RED/MAROON,TRIM3#
NO.2,W/AUTO-NON-GLARE,BLUE,BLUE,TRIM8#
NO.2,W/AUTO-NON-GLARE,BEIGE,BEIGE,TRIM4#
main87834-20080-14iGS120,126,LS12#,MS120,YS120..DLX,SDX,STD; GS121,MS123,125..ROY;GS120,LS120,MS120..HT..SAL198308-198509
BLUE,BLUE,TRIM8#; W/MOON ROOF,BLUE,BLUE,TRIM8#
main87834-20080-35iGS120,126,LS12#,MS120,YS120..DLX,SDX,STD; GS121,MS123,125..ROY;GS120,LS120,MS120..HT..SAL198308-198509
BEIGE,BEIGE,TRIM4#; W/MOON ROOF,BEIGE,BEIGE,TRIM4#
BRIDAL PACKAGE,BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
NO.1,W/AUTO-NON-GL.DEEP MAROON,RED/MAROON,TRIM3#
NO.1,W/AUTO-NON-GLARE,BLUE,BLUE,TRIM8#
NO.1,W/AUTO-NON-GLARE,BEIGE,BEIGE,TRIM4#
NO.3,DEEP MAROON,RED/MAROON,TRIM3#
NO.3,BLUE,BLUE,TRIM8#
NO.3,BEIGE,BEIGE,TRIM4#
9014950035
main90149-50035
6 parts on this diagram · 2 diagrams in section
MIRROR for Toyota CROWN
This section contains 17 genuine Toyota parts for the MIRROR system of the Toyota CROWN. Key components include: SWITCH SUB-ASSY, INNER MIRROR, MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER.
