Toyota CROWN — MIRROR

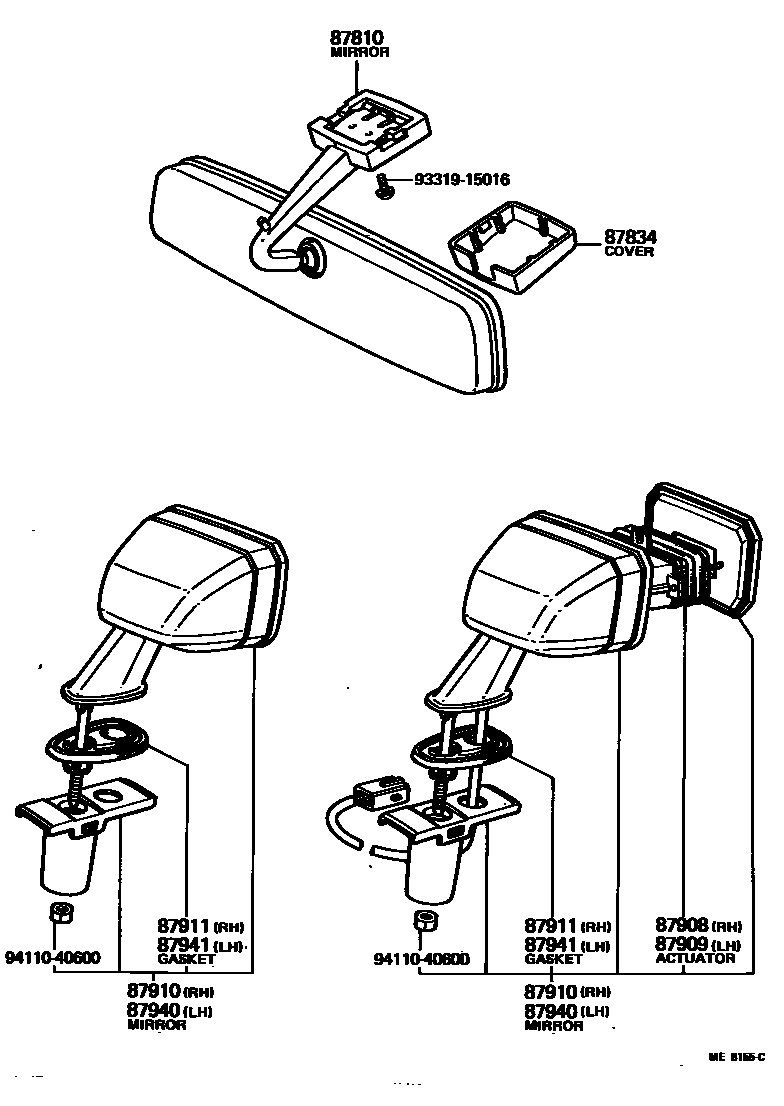

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-30190-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main87810-30190-03i198108-198307
GRAY,GRAY,TRIM1#,8#
main87810-30190-04i197909-198108
BLUE,BLUE,TRIM8#
main87810-30190-05i197909-198108
GREIGE,BEIGE,TRIM4#
main87810-30190-15i198108-198307
BEIGE,BEIGE,TRIM4#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-20080-04i197909-198108
BLUE,BLUE,TRIM8#
main87834-20080-08i197909-198108
IVORY,IVORY,TRIM3#,4#
main87834-20080-23i198108-198307
GRAY,GRAY,TRIM1#,8#
main87834-20080-25i198108-198307
BEIGE,BEIGE,TRIM4#
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-30021i197909-198307
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87908-30021i197909-198307
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-39175i197909-198108
main87910-39176i198108-198307
main87910-39185i197909-198108
main87910-39186i198108-198307
main87910-39206i197909-198108
REMOTE CONTROL TYPE
main87910-39207i198108-198307
REMOTE CONTROL TYPE
main87910-39216i197909-198108
REMOTE CONTROL TYPE
main87910-39217i198108-198307
REMOTE CONTROL TYPE
87911GASKET, OUTER REAR VIEW MIRROR, RH
main87911-30060i197909-198108
main87911-30061i198108-198307
main87911-30070i197909-198108
main87911-30071i198108-198307
main87911-30080i197909-198108
main87911-30081i198108-198307
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-39135i197909-198108
main87940-39136i198108-198307
main87940-39145i197909-198108
main87940-39146i198108-198307
main87940-39166i197909-198108
REMOTE CONTROL TYPE
main87940-39167i198108-198307
REMOTE CONTROL TYPE
main87940-39176i197909-198108
REMOTE CONTROL TYPE
main87940-39177i198108-198307
REMOTE CONTROL TYPE
87941GASKET, OUTER REAR VIEW MIRROR, LH
main87941-30030i197909-198108
main87941-30031i198108-198307
main87941-30040i197909-198108
main87941-30041i198108-198307
main87941-30050i197909-198108
main87941-30051i198108-198307
9331915016
main93319-15016
9411040600
main94110-40600

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota CROWN

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota CROWN. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
