Toyota CROWN — METER

0001 1�������� 0003 1�����������

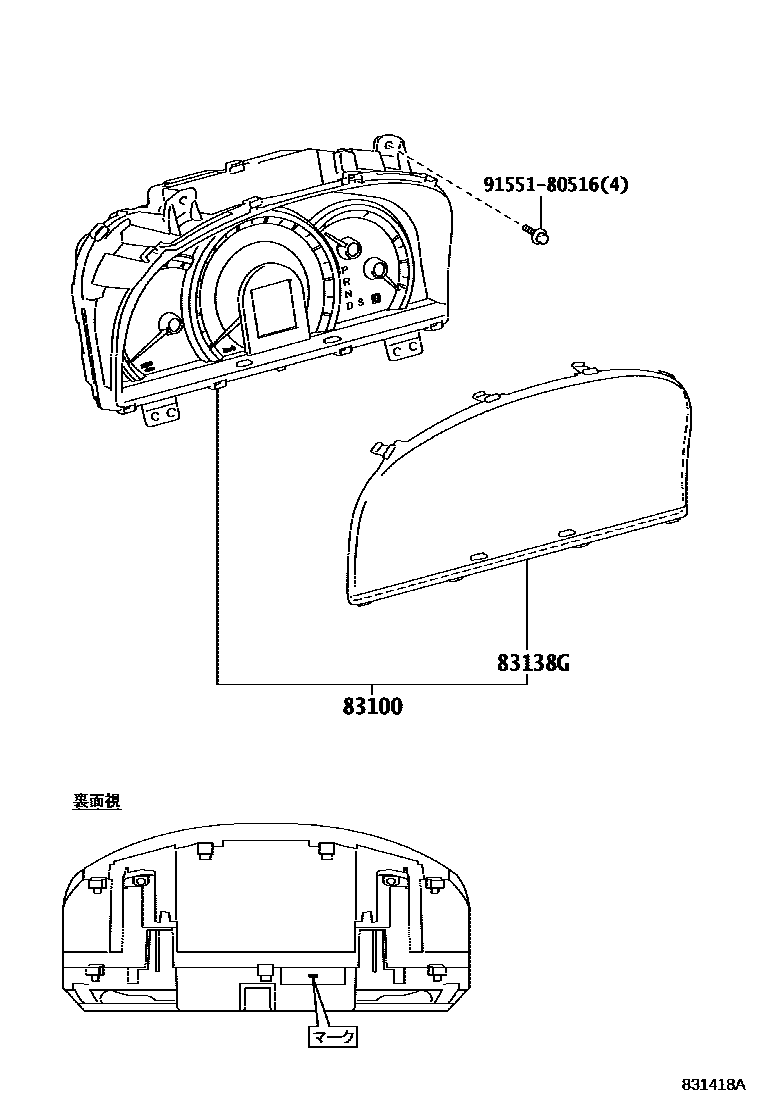

83100METER ASSY, COMBINATION

main83800-30A70iGRS200,201,202,203..(ROY,ROYG)..CBU200802-200811

main83800-30A71iGRS200,201,202,203..(ROY,ROYG)..CBU200812-200906

main83800-30A72iGRS200,201,202,203..(ROY,ROYG)..CBU200906-201002

main83800-30K70iGRS200,201..ATH200802-200811

main83800-30K71iGRS200,201..ATH200812-200906

main83800-30K72iGRS200,201..ATH200906-201002

main83800-30L00iGRS204200802-200811

main83800-30L01iGRS200..ATH200812-200906

main83800-30L02iGRS200..ATH200906-201002

main83800-3A350iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201212

main83800-3A360iGRS200,201..ATH201002-201212

main83800-3A370iGRS204201002-201212

main83800-3A380supersedes 83800-3A320iGWS204201002-201008

83138GGLASS, COMBINATION METER

main83852-30A70iGRS20#,GWS204200802-201002

9155180516

main91551-80516

3 parts on this diagram · 2 diagrams in section
