Toyota CROWN — METER

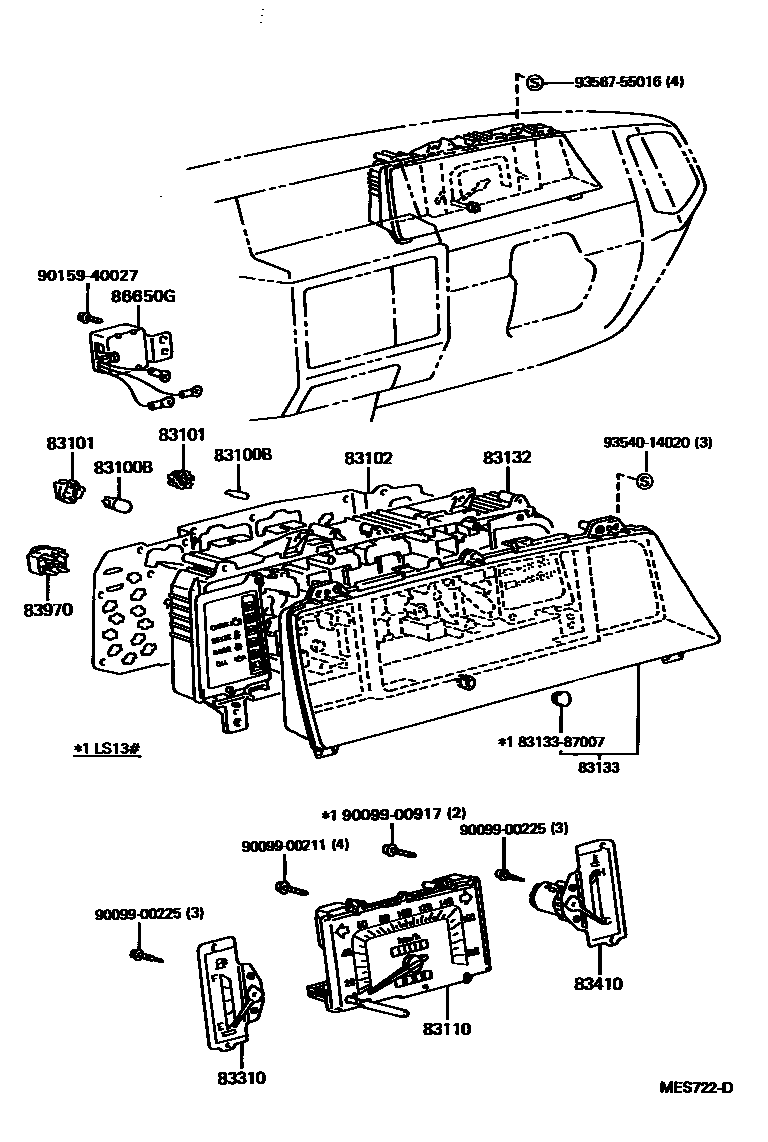

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83109-24030i199110

main83109-30050i199110-199512

main83109-30060i199110-199512

main83109-30070i199110-199703

main83119-24130i199110-199512

main83119-24410i199112-199512

main83119-32010i199110

main83119-50050i199112-199512

main83120-24010i199809

main90981-11018i199110-199709

main99132-12034i199110

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030i199110-199512

BULB:3.4W

main83101-14030i199512

BULB 3.4W

main83101-14040i199110-199709

BULB:1.4W

main83101-14040i199110-199204

main83101-14040i199204-199210

main83101-14040i199512

BULB 1.4W

main83101-30050i199110-199512

2.0W OR 3.0W,OD=11.3

main83101-30050i199110-199709

BULB:2.0W OR 3.0W

main83101-32020i199110-199512

2.0W OR 3.0W,OD=12.2

main83101-32020i199512

BULB 2.0W OR 3.0W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83149-30040i199110-199308

main83149-30041i199512-199609

main83149-30060i199308-199512

main83149-30060i199110-199308

main83149-30080i199112-199412

main83149-30100i199110-199308

main83149-30120i199204-199210

main83149-30120i199110-199204

main83149-30300i199110-199512

main83149-30320i199110-199512

main83149-30340i199112-199412

main83149-30360i199112-199412

main83149-30400i199110-199409

main83149-30420i199110-199409

main83149-30440i199110-199709

main83149-30441i199709

main83149-30500i199110-199512

main83149-30580i199110-199308

main83149-30600i199112-199512

main83149-30620i199110-199512

main83149-3A810i199110-199512

main83149-3A850i199110-199512

main83149-3A851i199512-199701

main83149-3A890i199110-199512

main83149-3F530i199412-199512

main83861-30280i199512-199709

main83861-30281i199701-199709

main83861-30282i199709

main83861-30290i199609-199701

main83861-30291i199701-199709

main83861-30292i199709

main83861-30300i199609-199701

main83861-30301i199701

main83861-43180i199701-199801

main83861-43181i199801

83110SPEEDOMETER ASSY

main83110-3A790i199110

main83110-3A810i199110

main83110-3A820i199110

main83110-3A830i199110-199308

main83110-3A831i199308

main83110-3A840i199110-199308

main83110-3A841i199308-199409

main83110-3A890i199110-199512

main83110-3F030i199204-199210

main83110-3F030i199110-199204

83132CASE, COMBINATION METER

main83132-30020i199112-199308

main83132-30021i199308-199412

main83132-30060i199110-199308

main83132-30061i199308-199409

main83132-30080i199110-199308

main83132-30081i199308-199409

main83132-30120i199110-199308

main83132-30121i199308-199709

main83132-30122i199709-199809

main83132-30123i199809

main83132-30200i199110-199308

main83132-30220i199112-199308

main83132-30221i199308-199512

main83132-30240i199110-199308

main83132-30241i199308-199512

main83132-30340i199110-199308

main83132-30341i199308-199512

main83132-3A620i199110-199512

main83132-3A660i199110-199609

main83132-3A700i199609

main83132-3A700i199110-199509

main83132-3A720i199112-199512

main83132-3A740i199110

main83132-3A780i199110-199609

main83132-3A840i199110-199308

main83132-3A841i199308-199512

main83132-3A842i199512-199709

main83132-3A842i199512-199701

main83132-3A843i199709-199809

main83132-3A844i199809

main83132-3A860i199110-199308

main83132-3A861i199308-199512

main83132-3A880i199112-199308

main83132-3A881i199308-199412

main83841-30280i199512-199701

main83841-30281i199701-199709

main83841-30282i199709-199809

main83841-30283i199809

main83841-30290i199609

main83841-3A480i199701-199709

main83841-3A481i199709-199809

main83841-3A482i199809

83133PLATE, COMBINATION METER, NO.1

main83133-30410i199110

main83133-30430i199110

main83133-30490i199110-199409

main83133-30510i199110

main83133-3A250i199110-199512

main83133-3A270i199112-199512

83310GAGE ASSY, FUEL RECEIVER

main83243-3A230i199110-199308

main83243-3A231i199308-199512

main83243-3A232i199512-199609

main83243-3A250i199110-199308

main83243-3A290i199110-199308

main83243-3A310i199110-199308

main83243-3A311i199308-199512

main83243-3A330i199112-199308

main83243-3A331i199308-199412

main83243-3A350i199110-199204

main83243-3A350i199204-199210

main83243-3A450i199110-199308

main83243-3A451i199308

main83243-3A470i199110-199308

main83243-3A471i199308

main83243-3A510i199110-199308

main83243-3A530i199110-199308

main83243-3A550i199110-199512

main83243-3A610i199308-199512

main83243-3A611i199512-199801

main83243-3A690i199412-199512

main83882-43040i199512

main83882-43180i199801

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-3A050i199110-199308

main83244-3A051i199308-199512

main83244-3A090i199110-199308

main83244-3A091i199308-199701

main83244-3A110i199110-199308

main83244-3A111i199308-199509

main83244-3A130i199204-199210

main83244-3A130i199110-199204

main83244-3A210i199110-199308

main83244-3A211i199308

main83883-30290i199609-199701

main83883-30291i199701

main83883-30300i199609-199701

main83883-30301i199701

main83883-43130i199701

83970BUZZER ASSY, REVERSE WARNING

main83244-3A090i199110-199308

main83970-20010i199110-199308

REVERSE

main83970-20010i199110-199308

main83970-20010i199110-199112

86650GBUZZER ASSY

main86650-12030i199110-199512

main86650-30140i199110-199512

8313387007PLATE, COMBINATION METER, NO.1

main83133-87007

9009900211

main90099-00211

9009900225

main90099-00225

9009900917

main90099-00917

9015940027

main90159-40027

9354014020

main93540-14020

9356755016

main93567-55016

17 parts on this diagram · 4 diagrams in section

METER for Toyota CROWN

This section contains 33 genuine Toyota parts for the METER system of the Toyota CROWN. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, SPEEDOMETER ASSY, CASE, COMBINATION METER.
