Toyota CROWN — METER

0001 1������������ 0002 1������������:��(�����) 0004 1������������:��(�����) 0006 1������������:��(�����) 0007 1������������(������) 0008 1����� & ���� 0009 1����� & ����:��(�����) 0011 1����� & ����:��(�����) 0013 1����� & ����:��(�����) 0014 1����� & ����(���������) 0015 1 0016 1

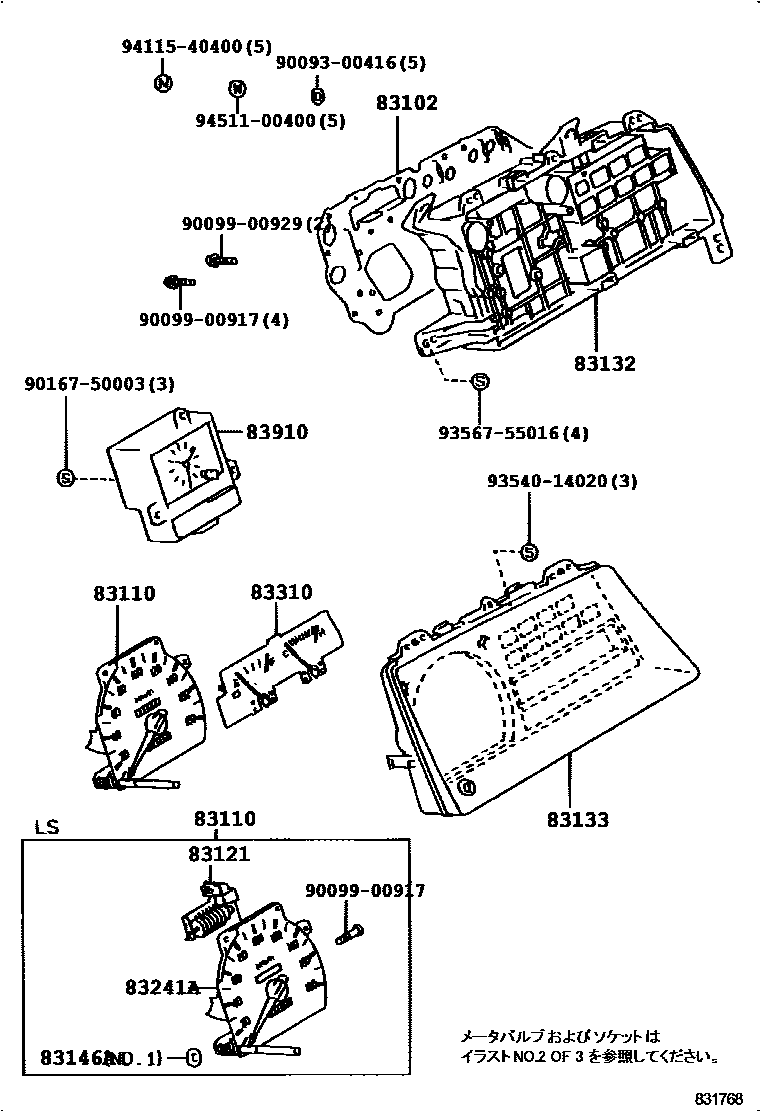

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83149-30010iGS130..(SED,WG)..4FC..(EFI,HTWC)198809-198908

main83149-30030iMS130..4FC198809-198908

main83149-30050iLS136..4FC198809-198908

main83149-30110iGS130,131..HT..5F..HTWC198809-198908

main83149-30170iJZS131..4FC..WIB198908-199110

NO.3

main83149-30190iGS130,LS130..HT..4FC198809-198908

NO.3

main83149-30210iGS131..4HC..HTWC;GS131..SED..4FC..HTWC;GS130,LS136..ATM..(DSL,HTWC,TWLPG)198908-199110

main83149-30230iUZS131..4HC..WIB198908-199005

main83149-30250iMS137..4HC;MS137..4FC..NOB198908-199012

main83149-30270iMS137..4HC;MS137..4FC..NOB198908-199012

main83149-30290iJZS131..4HC;MS135..4HC..WIB;JZS131..4FC..NOB198908-199110

main83149-30310iMS135..NOB198908-199110

main83149-30330iJZS131..4HC;MS135..4HC..WIB;JZS13#..4FC..NOB198908-199110

main83149-30370iGS131..4HC..SPC;GS131..SED..4FC..SPC198908-199110

main83149-30390iGS131..4HC..SPC;GS130,131..(SED,WG)..4FC..SPC198908-199110

main83149-30410iLS130,131..(SED,WG)..(TD,TDE)198908-199110

main83149-30430iJZS131..4HC;MS135..4HC..WIB;JZS131..4FC..NOB199008-199110

main83149-30450iMS135..NOB198908-199008

main83149-30470iJZS131..4HC;MS135..4HC..WIB;JZS131..4FC..NOB199008-199110

main83149-30570iGS130..ATM..HTWC;GS131..4HC..HTWC;GS131..SED..4FC..HTWC198908-199110

main83149-30590iGS130,131..(SED,WG)..MTM..(DLX,SAL,SALEX,SDX)..HTWC198908-199110

main83149-30610iGS130..ATM..TWLPG198908-199110

main83149-30630iGS130..4H..TWLPG198908-199110

main83149-30650iLS130..(DLX,SDX)..DSL198908-199110

main83149-30670iLS136..4FC198908-199110

main83149-30690iLS136..5F198908-199110

main83149-30710iGS136..DLX,SDX198908-199110

main83149-30810iGS130..STD198908-199110

main83149-30830iYS130..4HC198908-199110

main83149-30850iYS130..MTM198908-199110

main83149-30890iLS136..STD198908-199110

main83149-3A030iGS131..SED..TWC198908-199110

main83149-3A050iJZS131,MS135..4HC..WIB198908-199110

main83149-3A070iGS131..SSL..SPC198908-199008

main83149-3A090iGS131..HT..4FC..(HTWC,TWC)198908-199110

main83149-3A110iGS131..HT..5F198908-199110

main83149-3A130iLS131..HT..TDE198908-199110

main83149-3A150iLS131..TD198908-199110

main83149-3A170iGS131..HT..4FC..ROY..SPC199007-199008

NO.2

main83149-3A210iMS135..4HC..WIB198908-199008

main83149-3A230iYS130..4HC198908-199110

main83149-3A250iYS130..MTM198908-199110

main83149-3A270iMS135..SALEX198908-199110

main83149-3A310iMS135..SALEX;JZS131..4FC..WIB;GS131..HT..4FC..SPC199008-199110

main83149-3A330iGS131..4HC..SPC;GS131..SED..4FC..SPC199008-199110

main83149-3A350iGS131..4HC..SPC;GS131..SED..4FC..SPC199008-199110

main83149-3A370iGS131..HT..4FC..ROY..SPC199008-199110

main83149-3A390iJZS131..4FC..ROY..WIB199008-199110

main83149-3A410iJZS131..4FC..WIB199008-199110

NO.1

main83149-3A430iJZS131..4FC..ROY..WIB;GS131..HT..4FC..ROY..SPC199008-199110

main83149-3A450iUZS131..4HC;UZS131..4FC..NOB199012-199110

main83149-3A470iMS137..4HC;MS137..4FC..NOB199012-199110

main83247-3A040iGS130,131..4HC..(EFI,HTWC)198809-198908

main83247-3A060iGS130..MTM..(DLX,SAL,SALEX,SDX)198709-198908

main83247-3A080iMS130..4HC198809-198908

main83247-3A100iGS136,MS130..MTM..(DLX,SDX)198709-198908

main83247-3A120iLS130..(DLX,SDX)..DSL198709-198908

main83247-3A140iLS136..4FC198709-198809

main83247-3A160iLS136..5F198709-198908

main83247-3A280iGS131,MS135,137..4HC..(SPC,TWC)198809-198908

main83247-3A300iGS130,131..HT..(4FC,5F)..(EFI,TWC)198709-198809

main83247-3A320iGS131..HT..4FC..SPC198709-198809

main83247-3A360iLS130..HT198709-198809

main83247-3A380iGS131..SSL..SPC198908-199008

main83247-3A400iGS131..HT..4FC..ROY..SPC;GS131,LS131..HT..(4FC,5F)..(HTWC,TD,TDE,TWC)199007-199008

main83247-3A420iGS131..HT..4FC..(SPC,TWC)198709-198809

main83247-3A440iGS130,131,LS130..HT..4FC..(EFI,TDE)198709-198809

main83247-3A480iMS135,137,UZS131..4FC..(ROY,ROYG)..WIB198709-199008

main83247-3A500×2iGS131..HT..4FC..SPC..NOB198709-199008

main83247-3A540iLS130..(SED,WG)..TDE198709-198809

main83247-3A560iGS130..STD198709-198908

main83247-3A580iYS130;GS136..STD198709-198908

main83247-3A620iLS130..STD198709-198908

main83247-3A640iLS136..STD198709-198908

main83247-3A670iMS137..4HC;MS137..4FC..NOB198709-198908

main83247-3A680iGS131..4HC..EFI;GS130,LS136,MS130..(SED,V,WG)..ATM..(DSL,EFI,LPG)198709-198809

main83247-3A690iMS137..4HC;MS137..4FC..NOB198709-198908

main83247-3A700iMS135..4FC..ROY..WIB198908-199008

main83247-3A710iMS135..4HC..WIB198709-198908

main83247-3A730iMS135..NOB198709-198908

main83247-3A740iGS130,131..HT..4FC..(EFI,HTWC,TWC)198809-198908

main83247-3A750iMS135..4HC..WIB198709-198908

main83247-3A760iGS131..HT..4FC..SPC198809-198908

main83247-3A770iGS131..SED..TWC198709-198908

main83247-3A780iLS130..HT..TDE198809-198908

main83247-3A790iGS131..4HC..SPC;GS131..SED..4FC..SPC198709-198908

main83247-3A810iGS131..4HC..SPC;GS130,131..(SED,WG)..4FC..SPC198709-198908

main83247-3A830iLS130..SDX..TD198709-198908

main83247-3A840iMS135..SALEX;GS131..HT..4FC..SPC..NOB198908-199008

main83247-3A860iGS131..HT..4HC..SPC;JZS131,MS13#,UZS131..4HC;JZS131,MS13#,UZS131..4FC..NOB;GS130,131,JZS130..(SED,WG)..ROY198908-199110

main83247-3A880iLS130,131..(SED,WG)..TDE198809-199110

83110SPEEDOMETER ASSY

main83110-3A020iMS135,137..4HC;GS131..HT..4HC..SPC;MS135,137..4FC..NOB;GS130,131..(SED,WG)..ROY198709-198908

sub83110-3F150

main83110-3A021iGS131..HT..4HC..SPC;JZS131,MS13#,UZS131..4HC;JZS131,MS13#,UZS131..4FC..NOB;GS130,131,JZS130..(SED,WG)..ROY198908-199102

main83110-3A022iGS131..HT..4HC..SPC;JZS131,MS13#,UZS131..4HC;JZS131,MS13#,UZS131..4FC..NOB;GS130,131,JZS130..(SED,WG)..ROY199102-199104

main83110-3A023iGS131..HT..4HC..SPC;JZS131,MS13#,UZS131..4HC;JZS131,MS13#,UZS131..4FC..NOB;GS130,131,JZS130..(SED,WG)..ROY199104-199110

main83110-3A061iLS130,131..(SED,WG)..(TD,TDE)198908-199110

main83110-3A400iGS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,MS130..DLX,SAL,SALEX,SDX198709-199110

main83110-3A490iGS130,131..HT..(4FC,5F)198709-198908

sub83110-3F160

main83110-3A491iMS135..SALEX;GS131,JZS131..HT..(4FC,5F)198908-199102

main83110-3A492iMS135..SALEX;GS131,JZS131..HT..(4FC,5F)199102-199104

main83110-3A493iMS135..SALEX;GS131,JZS131..HT..(4FC,5F)199104-199110

main83110-3A501iLS131..HT198908-199110

main83110-3A510iYS130;GS130,136..STD198709-198908

main83110-3A511iYS130;GS130,136..STD198908-199110

main83110-3A520iLS13#..STD198709-198908

main83110-3A521iLS130,136..STD198908-199110

main83110-3A690iJZS131..4FC..ROY..WIB;GS131..HT..4FC..ROY..SPC199008-199102

main83110-3A691iJZS131..4FC..ROY..WIB;GS131..HT..4FC..ROY..SPC199102-199104

main83110-3A692iJZS131..4FC..ROY..WIB;GS131..HT..4FC..ROY..SPC199104-199110

83121COUNTER, TOTAL

main83121-30230iGS131..HT..4FC..SPC;JZS131,MS13#,UZS131..4FC..WIB199008-199110

main83121-30270iLS130..HT;LS13#..DSL198709-198908

main83121-30310iLS130,131..(SED,WG)..(TD,TDE)198709-199110

83132CASE, COMBINATION METER

main83132-3A020iLS136..4FC198809-199110

main83132-3A060iGS131..HT..5F198908-199110

main83132-3A080iLS131..TD198908-199110

main83132-3A100iGS130,131..4HC..(EFI,HTWC)198809-198908

main83132-3A120iMS130..4HC198809-198908

main83132-3A140iMS137,UZS131..4HC;MS137,UZS131..4FC..NOB198908-199110

main83132-3A160iGS13#..(SED,V,WG)..MTM..(DLX,SAL,SALEX,SDX)..HTWC198908-199110

main83132-3A180iGS130..4H..TWLPG198908-199110

main83132-3A190iMS137..4HC;MS137..4FC..NOB198709-198908

main83132-3A200iLS130..(DLX,SDX)..DSL198908-199110

main83132-3A210iMS135..NOB198908-199008

main83132-3A220iLS136..5F198908-199110

main83132-3A230iJZS131..4HC;JZS131..4FC..NOB;GS131,MS135..HT..4HC..ROY;GS130,131,JZS130,LS130,131..(SED,WG)..(SPC,TD,TDE,TWC)198709-199110

main83132-3A260iGS130..STD198908-199110

main83132-3A270iGS130..STD198709-198908

main83132-3A280iYS130;GS136..STD198908-199110

main83132-3A290iYS130;GS136..STD198709-198908

main83132-3A310iLS130..STD198709-198908

main83132-3A320iLS136..STD198908-199110

sub83132-3A300

main83132-3A330iLS136..STD198709-198908

main83132-3A350iGS131..HT..4FC..TWC198709-198809

main83132-3A360iMS135..SALEX;JZS131..4FC..WIB198908-199110

main83132-3A370iGS130,131..HT..5F..(EFI,TWC)198709-198908

main83132-3A380iJZS131..4FC..ROY..WIB;GS131..HT..4FC..ROY..SPC199008-199110

main83132-3A390iGS130,131..HT..4FC..EFI198709-198809

main83132-3A410iGS131..HT..4FC..SPC198709-198809

main83132-3A430iLS130..HT..TD198709-198908

main83132-3A450iLS130..HT..TDE198709-198809

main83132-3A470iGS131..4HC..EFI;GS130..(SED,WG)..ATM..EFI198709-198809

main83132-3A490iGS130..MTM..(DLX,SAL,SALEX,SDX)198709-198908

main83132-3A510iMS130..ATM198709-198809

main83132-3A530iGS136,MS130..MTM..(DLX,SDX)198709-198908

main83132-3A550iLS130..(DLX,SDX)..DSL198709-198908

main83132-3A570iLS136..4FC198709-198809

main83132-3A590iLS136..5F198709-198908

main83132-3A730iGS131..WIB198908-199008

main83132-3A750iGS131..HT..4FC..TWC198809-198908

main83132-3A770iGS130,131..HT..4FC..(EFI,HTWC)198809-199110

main83132-3A790iGS131..SSL..SPC199007-199008

main83132-3A810iLS130,131..HT..TDE198809-199110

main83132-3A870iGS130..(SED,WG)..4FC..(EFI,HTWC)198809-198908

main83132-3A890iMS130..4FC;GS130..ATM..TWLPG198809-199110

83133PLATE, COMBINATION METER, NO.1

main83133-30410iGS131..HT..4HC..SPC;JZS131,MS135,137,UZS131..4HC;GS130,131,JZS130..(SED,WG)..ROY;JZS131,MS135,137,UZS131..4FC..NOB198709-199110

main83133-30430iLS130,131..(SED,WG)..(TD,TDE)198709-199110

main83133-30490iLS130,136..(DLX,SDX)..DSL198709-199110

main83133-30510iGS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,MS130..DLX,SAL,SALEX,SDX198709-199110

main83133-30570iGS131,JZS131..HT..(4FC,5F);GS130,MS135..HT..(SALEX,SPE)198709-199110

main83133-30590iLS130,131..HT198709-199110

main83133-30610iGS130..STD;YS130..LPEFI;GS136..STD..HTWC198709-199110

main83133-30630iYS130;GS136..STD198709-198908

main83133-30750iGS131..HT..4FC..SPC;JZS131,MS13#,UZS131..4FC..WIB199008-199110

main83133-3A010iLS130,136..STD198709-199110

main83133-3A050×5iGS131..WIB198908-199008

main83133-3A070×2iGS131..HT..4FC..SPC;JZS131,MS13#,UZS131..4FC..WIB199008-199110

83146ACOVER, SPEEDMETER

main83146-30710iGS130,131,LS130,MS135,137..(SED,WG)..4FC..(SPC,TDE,TWC)198809-198908

NO.2

main83146-30890iGS131,MS135,137..4HC..(SPC,TWC)198809-198908

main83153-30800×2iLS130..STD198709-198908

83241ABODY ASSY, SPEEDOMETER

main83241-30630iLS130..HT198709-198908

main83241-30631iLS131..HT198908-199110

main83241-30650iLS130..(SED,WG)..(TD,TDE)198709-198908

main83241-30651iLS130,131..(SED,WG)..(TD,TDE)198908-199110

main83241-30670iLS13#..(DLX,SDX)..DSL198709-198908

main83241-30731iLS136..STD198908-199110

83310GAGE ASSY, FUEL RECEIVER

main83243-30450iMS135,137..4HC;GS131..HT..4HC..SPC;MS135,137..4FC..NOB;GS130,131..(SED,WG)..ROY198709-198908

main83243-30470iLS130..(SED,WG)..(TD,TDE)198709-198908

main83243-30570iGS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,LS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC)198709-199110

main83243-30590iGS136..DLX,SDX;GS130,LS136,MS130..(DLX,SDX)..(DSL,LPG,TWLPG)198709-199110

main83243-30670iYS130;GS136..STD198709-198908

main83243-30690iGS130..STD198709-198908

main83243-30710iLS130..STD198709-198908

main83243-30730iLS136..STD198709-198908

main83243-30750iGS130..STD198908-199110

main83243-30770iYS130198908-199110

main83243-30790iLS130..STD198908-199110

main83243-3A050iGS131,JZS131..HT..(4FC,5F);LS131,MS135..HT..(SALEX,SPE,SSL)198908-199110

main83243-3A070iLS136..STD198908-199110

main83243-3A090iGS131..HT..4HC..SPC;JZS131,MS13#,UZS131..4HC;JZS131,MS13#,UZS131..4FC..NOB;GS130,131,JZS130..(SED,WG)..ROY198908-199110

main83243-3A110iLS130,131..(SED,WG)..(TD,TDE)198908-199110

main83243-3A170iYS130198908-199110

main83243-3A630iGS130,131,LS130..HT..(4FC,5F)198709-198908

83910CLOCK ASSY

main83910-30451iMS137..4HC;MS137..4FC..NOB198709-198712

main83910-30452iMS137..4HC;MS137..4FC..NOB198712-198908

main83910-30453iMS137,UZS131..4HC;MS137,UZS131..4FC..NOB198908-199110

main83910-30460iGS131,MS135..4HC;GS131,MS135..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SALEX)198709-198712

main83910-30461iGS131,MS135..4HC;GS131,MS135..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SALEX)198712-198809

main83910-30462iGS131,JZS131,MS135..4HC;GS131,JZS131,MS135..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SALEX)198908-199110

main83910-30470iGS130,136,LS13#,MS130..DLX,SAL,SDX198709-198712

main83910-30471iGS130,136,LS13#,MS130..DLX,SAL,SDX198712-198809

main83910-30472iGS130,136,LS130,136..DLX,SDX198908-199110

main83910-30480iYS130..MTM;GS130,136,LS130,136..STD198709-199110

main83910-30490iYS130..4HC198709-198809

main83910-30491iYS130..4HC198809-199110

main83910-30501iMS137..4FC..WIB198709-198908

main83910-30502iMS137,UZS131..4FC..WIB198908-199110

main83910-30510iGS130,131,LS130,MS135..HT..(4FC,5F)198709-198908

main83910-30511iGS131,JZS131,LS131,MS135..HT..(4FC,5F)198908-199110

9009300416

main90093-00416

9009900917

main90099-00917

9009900929

main90099-00929

9016750003

main90167-50003

9354014020

main93540-14020

9356755016

main93567-55016

9411540400

main94115-40400

9451100400

main94511-00400

17 parts on this diagram · 12 diagrams in section
