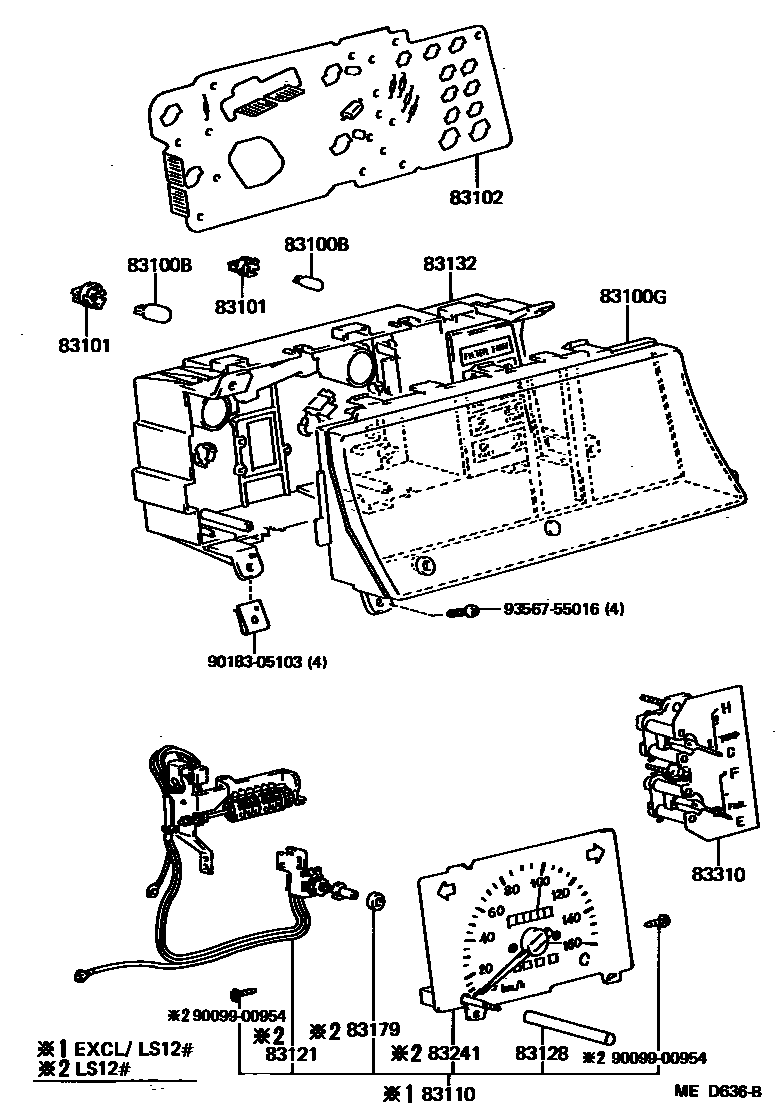

Toyota CROWN — METER

0001 1 0002 1 0003 1 0005 1 0006 1 0008 1 0009 1

83100BBULB, COMBINATION METER, NO.1

main83109-24030×5iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)198308-198708

main83109-24040×2iGS120,121,LS120,MS120..HT..(4FC,5F)198308-198708

main83109-30030×2iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

12V 3.4W LONG LIFE,W/GREEN CAP

main83109-30040iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

12V 2.0W LONG LIFE,W/GREEN CAP

main90981-11018×12iGS12#,LS12#,MS12#,YS120198308-198708

main90981-11036iLS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198509-198708

main99132-12034×4iMS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120198308-198708

83100GGLASS, COMBINATION METER

main83138-3A010iGS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX)198308-198509

main83138-3A030iLS12#..(4FC,5F)..DLX198308-198509

main83138-3A050iGS121..HT..4HC;MS123,125..4HC;MS123,125..SED..4FC;GS121,MS120..SED..(TBO,TWC)198308-198509

main83138-3A070iLS120..(SED,WG)..(TD,TDE)198308-198509

main83138-3A110iGS120,121,MS120..HT..(4FC,5F)198308-198708

main83138-3A130iLS120..HT198308-198708

main83138-3A150iGS121,MS12#..HT..(4FC,5F)..(ROY,SAL)198308-198708

W/*DS

main83138-3A210iYS120;GS120..4H;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG)198308-198509

main83138-3A230iLS12#..STD;LS120..4H..DLX198308-198509

main83138-3A270iLS12#..STD;LS120..4H..DLX198509-198708

main83138-3A290iYS120;GS120..4H;GS120..5F..STD;GS126,MS120..4FC,4H,4HC198509-198708

main83138-3A310iLS120..(SED,WG)..(TD,TDE)198509-198708

main83138-3A330iGS121..SED;MS125..4HC;GS121..HT..4HC;MS125..SED..4FC198509-198708

main83138-3A370iLS120..(4FC,5F)..(DLX,SDX)..DSL198509-198708

main83138-3A390iGS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX)198509-198708

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×5iMS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120198308-198708

12V 3.4W,BLACK

main83101-14040×12iGS12#,LS12#,MS12#,YS120198308-198708

12V 1.4/1.7W,BLACK

main83101-28010×5iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)198308-198708

12V 3.4W,GREEN

main83101-30020×2iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

12V 3.4W LONG LIFE,BLUE

main83101-30030iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

12V 2.0W LONG LIFE,BLUE

main83101-87001×2iGS120,121,LS120,MS120..HT..(4FC,5F)198308-198708

12V 1.4W,GREEN

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-30410iGS126..5F198308-198708

main83247-30430iGS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX)198308-198708

main83247-30450iLS126..DLX198308-198708

main83247-30470iLS120..(4FC,5F)..(DLX,SDX)..DSL198509-198708

main83247-30530iGS121,MS123,125..4FC..TWC;GS121,MS123,125..SED..4HC..TWC198308-198708

main83247-30610iGS121..HT..(4FC,5F)..ROY198308-198509

W/*AL,W/O*DS

main83247-30630iGS121..HT..4FC..SPC198509-198708

main83247-3A010iLS120..HT198308-198708

main83247-3A030iGS120,121..HT..(4FC,5F)..(EFI,TWC)198308-198708

main83247-3A070iLS126..STD198308-198708

main83247-3A090iGS126..4H198308-198708

main83247-3A110iGS120..4H;GS120..5F..STD198308-198708

main83247-3A130iMS120,YS120..LPG198308-198708

main83247-3A150iLS120..STD;LS120..4H..DLX198308-198708

main83247-3A330iGS121..SPE198405-198509

W/*DS

main83247-3A390iMS120..SED..TBO198308-198509

main83247-3A510iMS125..HT..4FC198509-198708

G SPEC,W/*DS

main83247-3A530iMS125..HT..4FC198509-198708

W/*DS

main83247-3A550iGS121..HT..4FC..ROY..SPC198509-198708

W/*AL & *DS

main83247-3A570iGS121..HT..4FC..ROY..SPC198509-198708

W/*AL,W/O*DS

main83247-3A590iMS125..SED..4FC198509-198708

G SPEC

83110SPEEDOMETER ASSY

main83110-3A080iGS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)198308-198408

main83110-3A081iGS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX)198408-198509

main83110-3A082iGS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX)198509-198708

main83110-3A110iMS120..SED..TBO198308-198408

main83110-3A111iMS120..SED..TBO198408-198509

main83110-3A112iGS121..SED;MS125..4HC;GS121..HT..4HC;MS125..SED..4FC198509-198708

main83110-3A220iGS120,126..4H;GS120..5F..STD198308-198408

main83110-3A221iGS120,126..4H;GS120..5F..STD198408-198509

main83110-3A222iGS120,126..4H;GS120..5F..STD198509-198708

main83110-3A270iMS120,YS120..LPG198308-198408

main83110-3A271iMS120,YS120..LPG198408-198509

main83110-3A272iMS120,YS120198509-198708

main83110-3A300iGS120,121,MS120..HT..(4FC,5F)198308-198408

main83110-3A301iGS120,121,MS120..HT..(4FC,5F)198408-198509

main83110-3A302iGS120,121..HT..(4FC,5F)198509-198708

83121COUNTER, TOTAL

main83121-30050iGS121..HT..(4FC,5F)..ROY198509-198708

W/*DS

main83121-30070iLS120..(4FC,5F)..(DLX,SDX)..DSL198509-198708

main83121-30110iLS120..(SED,WG)..(TD,TDE)198308-198708

main83121-30130iLS12#..STD;LS120..4H..DLX198308-198708

main83121-30170iLS120..HT198308-198708

main83121-30210iMS125..HT..4FC198509-198708

W/*DS

83128KNOB, TRIP COUNTER

main83128-16110iLS12#..STD;LS120..4H..DLX198308-198708

main83128-30710iGS121,MS12#..HT..(4FC,5F)..(ROY,SAL)198308-198708

W/*DS

main83128-32010iGS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX)198308-198708

83132CASE, COMBINATION METER

main83132-30290iGS126,LS126..4FC,5F198308-198708

main83132-30310iLS120..(4FC,5F)..(DLX,SDX)..DSL198509-198708

main83132-30330iLS120..(SED,WG)..(TD,TDE)198308-198708

main83132-30370iGS121..HT..(4FC,5F)..ROY198308-198509

W/*AL,W/O*DS

main83132-30390iGS120,121,MS120..HT..(4FC,5F)198308-198509

main83132-30410iLS120..HT198308-198509

main83132-30430iLS126..STD198308-198509

main83132-30450iYS120;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG)198308-198509

main83132-30470iGS120..4H;GS120..5F..STD198308-198509

main83132-30490iLS120..STD;LS120..4H..DLX198308-198509

main83132-30530iGS121,MS12#..HT..(4FC,5F)..(ROY,SAL)198308-198509

W/*DS

main83132-30750iGS120,121..HT..(4FC,5F)198509-198708

main83132-30770iGS121..HT..4FC..ROY..SPC198509-198708

W/*AL,W/O*DS

main83132-30790iMS125..HT..4FC198509-198708

W/*DS

main83132-3A010iLS120..STD;LS120..4H..DLX198509-198708

main83132-3A030iLS126..STD198509-198708

main83132-3A050iYS120;GS126,MS120..4FC,4H,4HC198509-198708

main83132-3A070iGS120..4H;GS120..5F..STD198509-198708

main83132-3A130iLS120..HT198509-198708

83179COVER, COMBINATION METER, HOLE

main83146-30850iLS12#198308-198509

main83153-30800iLS12#..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SDX)198705-198708

83241METER SUB-ASSY, SPEED

main83241-30230iLS12#..(4FC,5F)..DLX198308-198408

main83241-30231iLS12#..(4FC,5F)..DLX198408-198509

main83241-30290iLS120..(SED,WG)..(TD,TDE)198308-198408

main83241-30291iLS120..(SED,WG)..(TD,TDE)198408-198509

main83241-30310iLS120..HT198308-198408

main83241-30311iLS120..HT198408-198509

main83241-30330iLS12#..STD;LS120..4H..DLX198308-198408

main83241-30331iLS12#..STD;LS120..4H..DLX198408-198509

main83241-30450iLS120..(4FC,5F)..(DLX,SDX)..DSL198509-198708

main83241-30530iLS120..(SED,WG)..(TD,TDE)198509-198708

main83241-30550iLS120..HT198509-198708

main83241-30570iLS12#..STD;LS120..4H..DLX198509-198708

83310GAGE ASSY, FUEL RECEIVER

main83243-30030iGS126,LS126..4FC,5F198308-198509

main83243-30050iGS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX)198308-198509

main83243-30070iLS120,MS120..(SED,WG)..(TBO,TD,TDE)198308-198509

main83243-30110iGS120,121,LS120,MS120..HT..(4FC,5F)198308-198509

main83243-30130iLS12#..STD;LS120..4H..DLX198308-198509

main83243-30150iYS120;GS120..4H;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG)198308-198509

main83243-30230iGS120,121,LS120..HT..(4FC,5F)198509-198708

main83243-30250iLS120..(SED,WG)..(TD,TDE)198509-198708

main83243-30310iLS120..(4FC,5F)..(DLX,SDX)..DSL198509-198708

main83243-30330iGS126,LS126..4FC,5F198509-198708

main83243-30370iLS12#..STD;LS120..4H..DLX198509-198708

main83243-30390iYS120;GS120..4H;GS120..5F..STD;GS126,MS120..4FC,4H,4HC198509-198708

9009900954

main90099-00954

9018305103

main90183-05103

9356755016

main93567-55016

14 parts on this diagram · 7 diagrams in section
