Toyota CROWN — MAT & CARPET

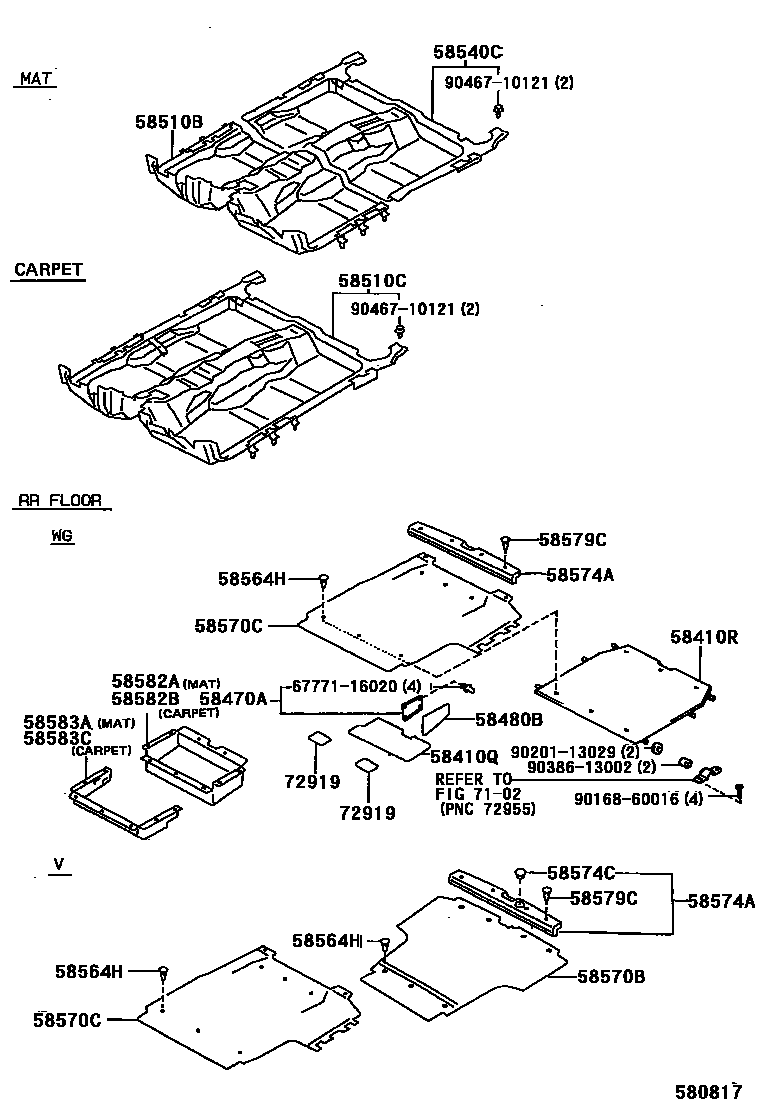

Parts diagram
58410QBOARD ASSY, 3RD SEAT FLOOR
main58410-91703-E1i199110-199512
QUARTZ,TRIM4#
main58410-91703-J1i199110
DK.BLUE,TRIM8#
main58410-91704-B0i199110-199512
SHADOW GRAY,TRIM1#
main58410-91704-B1i199512
SHADOW GRAY,TRIM1#
main58410-91704-E0i199110
QUARTZ,TRIM4#
main58410-91704-J0i199110-199512
DK.BLUE,TRIM8#
58410RBOARD ASSY, DECK
main58410-31010-B0i199512
SHADOW GRAY,TRIM1#
main58410-31010-E0i199512
QUARTZ,TRIM12,4#; QUARTZ,TRIM4#
main58410-31010-J0i199512
DK. BLUE,TRIM8#
58470ABOARD ASSY, REAR FLOOR, NO.1
main58470-91702-B0i199110-199512
SHADOW GRAY,TRIM1#
main58470-91702-B1i199512
SHADOW GRAY,TRIM1#
main58470-91702-E0i199308
QUARTZ,TRIM4#
main58470-91702-E1i199308-199512
DK.ROSE,TRIM4#
main58470-91702-J0i199308-199512
DK.BLUE,TRIM8#
main58470-91702-J1i199308
DK.BLUE,TRIM8#
58480BBOARD ASSY, REAR FLOOR, NO.2
main58480-91702-B0i199110-199512
SHADOW GRAY,TRIM1#
main58480-91702-B1i199512
SHADOW GRAY,TRIM1#
main58480-91702-E0i199110-199308
QUARTZ,TRIM4#
main58480-91702-E1i199308-199512
DK.ROSE,TRIM4#
main58480-91702-J0i199110-199308
DK.BLUE,TRIM8#
main58480-91702-J1i199308
DK.BLUE,TRIM8#
58510BMAT, FRONT FLOOR, FRONT
main58510-3F360-C0i199110-199512
BLACK,TRIM8#
main58510-3F370-C0i199112-199512
main58510-3F380-C0i199110-199112
BLACK,TRIM8#
main58510-3F390-C0i199112-199512
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-31010-B0i199110-199512
SHADOW GRAY,TRIM1#
main58510-31010-E0i199110-199512
QUARTZ,TRIM4#
main58510-31010-J0i199110-199512
DK.BLUE,TRIM8#
main58510-31020-E0i199110-199512
QUARTZ,TRIM4#
main58510-31020-J0i199110-199512
DK.BLUE,TRIM8#
main58510-31030-E0i199110-199512
QUARTZ,TRIM4#
main58510-31030-J0i199110-199512
DK.BLUE,TRIM8#
main58510-31040-B0i199110-199512
SHADOW GRAY,TRIM1#
main58510-31040-E0i199110-199512
QUARTZ,TRIM4#
main58510-31040-J0i199110-199512
DK.BLUE,TRIM8#
main58510-31050-E0i199110-199512
QUARTZ,TRIM4#
main58510-31050-J0i199110-199512
DK.BLUE,TRIM8#
main58510-31060-B0i199512-199704
GRAY,TRIM1#
main58510-31060-E0i199512-199704
QUARTZ,TRIM4#
main58510-31070-B0i199512-199704
GRAY,TRIM1#
main58510-31070-E0i199512-199704
QUARTZ,TRIM4#
main58510-31080-B0i199512-199704
GRAY,TRIM1#
main58510-31080-E0i199512-199704
QUARTZ,TRIM4#
main58510-31090-J0i199704
DK.BLUE,TRIM8#
main58510-31100-B0i199704
GRAY,TRIM1#
main58510-31100-E0i199704
QUARTZ,TRIM4#
main58510-31110-B0i199704
GRAY,TRIM1#
main58510-31110-E0i199704
QUARTZ,TRIM4#
main58510-31120-B0i199704
GRAY,TRIM1#
main58510-31120-E0i199704
QUARTZ,TRIM4#
main58510-31130-J0i199704
DK. BLUE,TRIM8#
main58510-3F410-J0i199112-199512
DK.BLUE,TRIM8#
main58510-3F420-B0i199110-199512
main58510-3F420-E0i199110-199512
main58510-3F420-J0i199110-199512
main58510-3F430-B0i199110-199512
SHADOW GRAY,TRIM1#
main58510-3F430-E0i199110-199512
QUARTZ,TRIM4#
main58510-3F430-J0i199110-199512
DK.BLUE,TRIM8#
main58510-3F440-B0i199110-199512
SHADOW GRAY,TRIM1#
main58510-3F440-E0i199110-199512
QUARTZ,TRIM4#
main58510-3F440-J0i199110-199512
DK.BLUE,TRIM8#
main58510-3F450-E0i199110-199512
QUARTZ,TRIM4#
main58510-3F450-J0i199210-199512
main58510-3F460-E0i199110-199512
QUARTZ,TRIM4#
main58510-3F460-J0i199112-199512
main58510-3F470-J0i199112-199512
DK.BLUE,TRIM8#
main58510-3F480-B0i199110-199512
main58510-3F480-E0i199110-199512
main58510-3F480-J0i199110-199512
main58510-3F500-E0i199110-199512
QUARTZ,TRIM4#
main58510-3F500-J0i199110-199512
DK.BLUE,TRIM8#
main58510-3F560-E0i199210-199512
main58510-3F560-J0i199110-199512
DK.BLUE,TRIM8#
main58510-3F700-E0i199110-199512
QUARTZ,TRIM4#
main58510-3F700-J0i199110-199512
DK.BLUE,TRIM8#
main58510-3F890-E0i199210-199512
QUARTZ,TRIM4#
main58510-3F890-J0i199210-199512
DK.BLUE,TRIM8#
58540CMAT ASSY, FLOOR, REAR
main58540-3A071-C0i199110-199512
BLACK,TRIM8#
main58540-3A081-C0i199112-199512
BLACK,TRIM8#
main58540-91766-C0i199110-199512
BLACK,TRIM8#
main58540-91767-C0i199110
BLACK,TRIM8#
58564HCLIP(FOR REAR FLOOR CARPET)
main90467-06016-C0×7i199308-199512
BLACK,TRIM1#,4#; BLACK,TRIM4#
main90467-06016-E0×6i199110-199308
QUARTZ,TRIM4#
main90467-06016-W3×7i199110-199512
DK.BLUE,TRIM8#
main90467-07042-B2×9i199512
MD.GRAY,TRIM1#
main90467-07042-E2×10i199512
QUARTZ,TRIM4#
main90467-07042-J0×3i199512
DARK BLUE,TRIM8#
58570BMAT ASSY, REAR FLOOR
main58570-31110-J0i199512
DK.BLUE,TRIM8#
main58570-91708-J0i199110-199512
DK.BLUE,TRIM8#
58570CCARPET ASSY, REAR FLOOR
main58570-31010-E1i199110-199512
main58570-31010-J1i199110-199512
main58570-31020-B1i199110-199512
SHADOW GRAY,TRIM1#
main58570-31020-E1i199110-199512
QUARTZ,TRIM4#
main58570-31020-J1i199110-199512
DK.BLUE,TRIM8#
main58570-31030-E1i199110-199512
QUARTZ,TRIM4#
main58570-31030-J1i199110-199512
DK.BLUE,TRIM8#
main58570-31040-B0i199512
GRAY,TRIM1#
main58570-31040-E0i199512
QUARTZ,TRIM4#
main58570-31050-B0i199512
GRAY,TRIM1#
main58570-31050-E0i199512
QUARTZ,TRIM4#
main58570-31060-B0i199512
GRAY,TRIM1#
main58570-31060-E0i199512
QUARTZ,TRIM4#
main58570-31070-J0i199512
DK.BLUE,TRIM8#
main58570-31080-B0i199512
main58570-31080-E0i199512
main58570-31090-B0i199512
main58570-31090-E0i199512
main58570-31101-J0i199512
DK.BLUE,TRIM8#
main58570-91709-J1i199110-199512
DK.BLUE,TRIM8#
main58570-91710-E1i199110-199512
QUARTZ,TRIM4#
main58570-91710-J1i199110-199512
DK.BLUE,TRIM8#
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
main58574-31010-B0i199110-199512
GRAY,TRIM1#
main58574-31010-E0i199512
QUARTZ,TRIM4#
main58574-31010-J0i199110-199512
DK.BLUE,TRIM8#
main58574-31020-J0i199110
DK.BLUE,TRIM8#
58574CPLUG, REAR FLOOR MAT SUPPORT PLATE HOLE
main90950-01289-J0i199110-199512
DK.BLUE,TRIM8#
58579CCLIP, REAR FLOOR CARPET SET
main90467-08114-B0×5i199110-199512
GRAY,TRIM1#
main90467-08114-E0×5i199110-199512
QUARTZ,TRIM4#
main90467-08114-J0×5i199512
DK.BLUE,TRIM8#
58582AMAT, 3RD SEAT FLOOR, NO.1
main58582-31010-B1i199512
SHADOW GRAY,TRIM1#
main58582-31010-E0i199512
DK. ROSE,TRIM4#
main58582-91707-E2i199110-199512
QUARTZ,TRIM4#
main58582-91707-J1i199110-199512
DK.BLUE,TRIM8#
58582BCARPET, 3RD SEAT FLOOR, NO.1
main58582-31010-B1i199512
SHADOW GRAY,TRIM1#
main58582-31010-E0i199512
DK. ROSE,TRIM4#
main58582-31020-J0i199512
DK.BLUE,TRIM8#
main58582-91708-B1i199110-199512
SHADOW GRAY,TRIM1#
main58582-91708-B2i199512
SHADOW GRAY,TRIM1#
main58582-91708-E3i199110-199512
QUARTZ,TRIM4#
main58582-91708-J2i199110-199512
DK.BLUE,TRIM8#
58583AMAT, 3RD SEAT FLOOR, NO.2
main58583-31010-B1i199512
SHADOW GRAY,TRIM1#
main58583-31010-E0i199512
DK. ROSE,TRIM4#
main58583-91704-E2i199110-199512
QUARTZ,TRIM4#
main58583-91704-J1i199110-199512
DK.BLUE,TRIM8#
58583CCARPET, 3RD SEAT FLOOR, NO.2
main58583-31010-B1i199512
SHADOW GRAY,TRIM1#
main58583-31010-E0i199512
DK. ROSE,TRIM4#
main58583-31020-J0i199512
DK.BLUE,TRIM8#
main58583-91705-B1i199110-199512
SHADOW GRAY,TRIM1#
main58583-91705-B2i199512
SHADOW GRAY,TRIM1#
main58583-91705-E3i199110-199512
QUARTZ,TRIM4#
main58583-91705-J2i199110-199512
DK.BLUE,TRIM8#
7102REAR SEAT & SEAT TRACK
→ Go to FIG 71-02
72919STOPPER, 3RD SEAT CUSHION
main72919-91701×2i199110-199512
6777116020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16020
9016860016
main90168-60016
9020113029
main90201-13029
9038613002
main90386-13002
9046710121
main90467-10121

24 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota CROWN

This section contains 24 genuine Toyota parts for the MAT & CARPET system of the Toyota CROWN. Key components include: BOARD ASSY, 3RD SEAT FLOOR, BOARD ASSY, DECK, BOARD ASSY, REAR FLOOR, NO.1, BOARD ASSY, REAR FLOOR, NO.2, MAT, FRONT FLOOR, FRONT.
