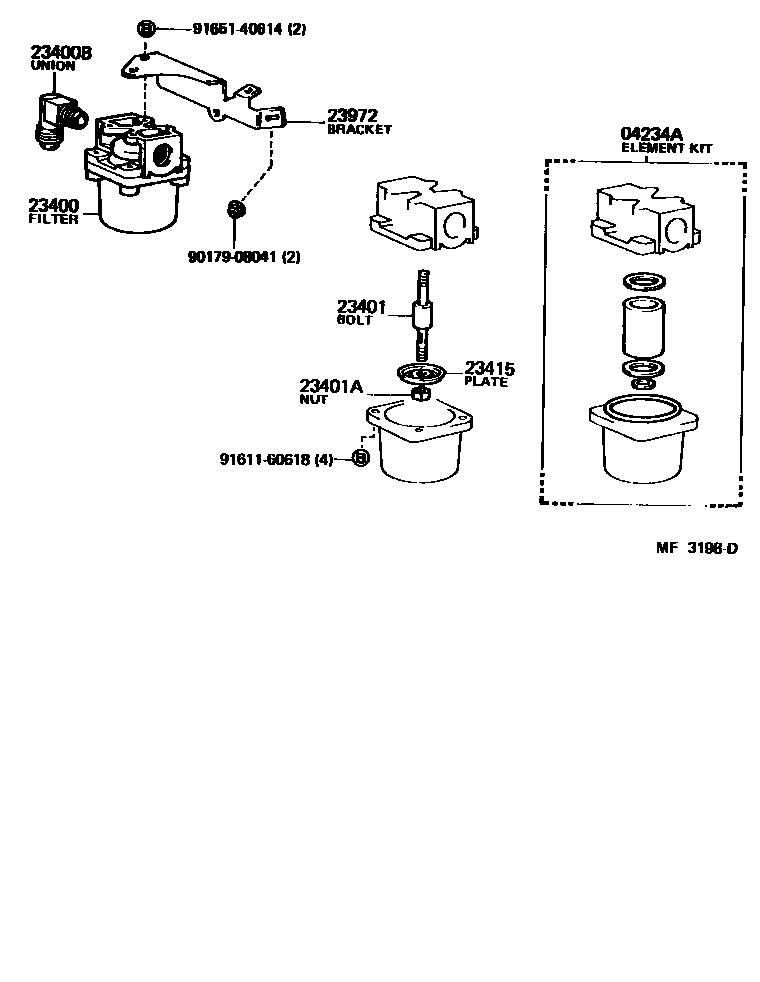

Toyota CROWN — LPG FILTER

04234AELEMENT KIT, LPG

main04234-44012i1GGP..GS130199112-199512

23400FILTER ASSY, LPG

main23400-40024i1GGP..GS130199112-199512

23400BUNION, LPG FILTER INLET

main90407-14023i1GGP..GS130199112-199512

23401BOLT SUB-ASSY, STUD(FOR LPG FILTER)

main23401-40020i1GGP..GS130199112-199512

23401ANUT(FOR LPG FILTER STUD BOLT SET)

main94115-40500i1GGP..GS130199112-199512

23415PLATE, ELEMENT

main23415-40010i1GGP..GS130199112-199512

23972BRACKET, FILTER & SOLENOID VALVE

main23972-73060i1GGP..GS130199112-199512

9017908041

main90179-08041

9161160618

main91611-60618

9165140614

main91651-40614

10 parts on this diagram · 1 diagram in section
