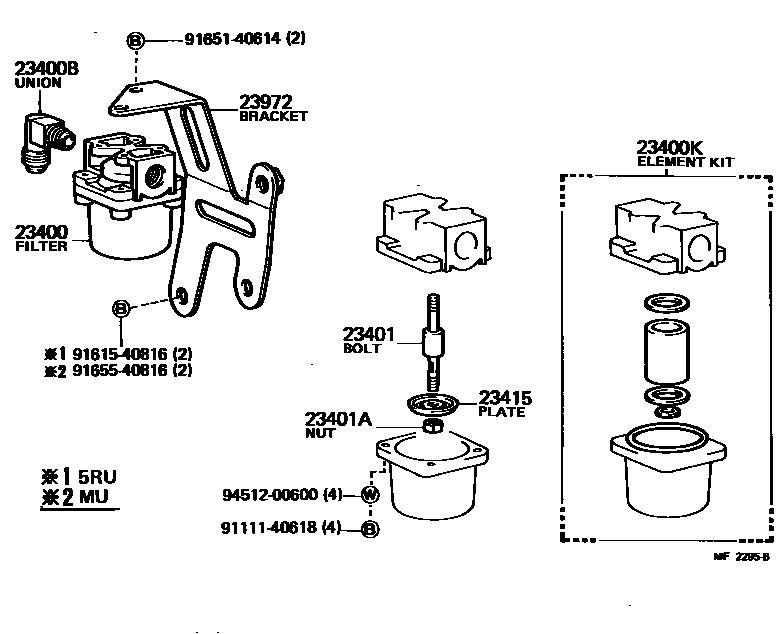

Toyota CROWN — LPG FILTER

23400FILTER ASSY, LPG

main23400-40024iMU..MS110..LPG197909-198307

23400BUNION, LPG FILTER INLET

main90407-14023iMU..MS110..LPG197909-198307

23400KELEMENT KIT, LPG

main04234-44012iMU..MS110..LPG197909-198307

23401BOLT SUB-ASSY, STUD(FOR LPG FILTER)

main23401-40020iMU..MS110..LPG197909-198307

23401ANUT(FOR LPG FILTER STUD BOLT SET)

main94115-40500iMU..MS110..LPG197909-198307

23415PLATE, ELEMENT

main23415-40010iMU..MS110..LPG197909-198307

23972BRACKET, FILTER & SOLENOID VALVE

main23972-44050iMU..MS110..LPG197909-198307

9111140618

main91111-40618

9161540816

main91615-40816

9165140614

main91651-40614

9165540816

main91655-40816

9451200600

main94512-00600

12 parts on this diagram · 1 diagram in section
