Toyota CROWN — LOCK CYLINDER SET

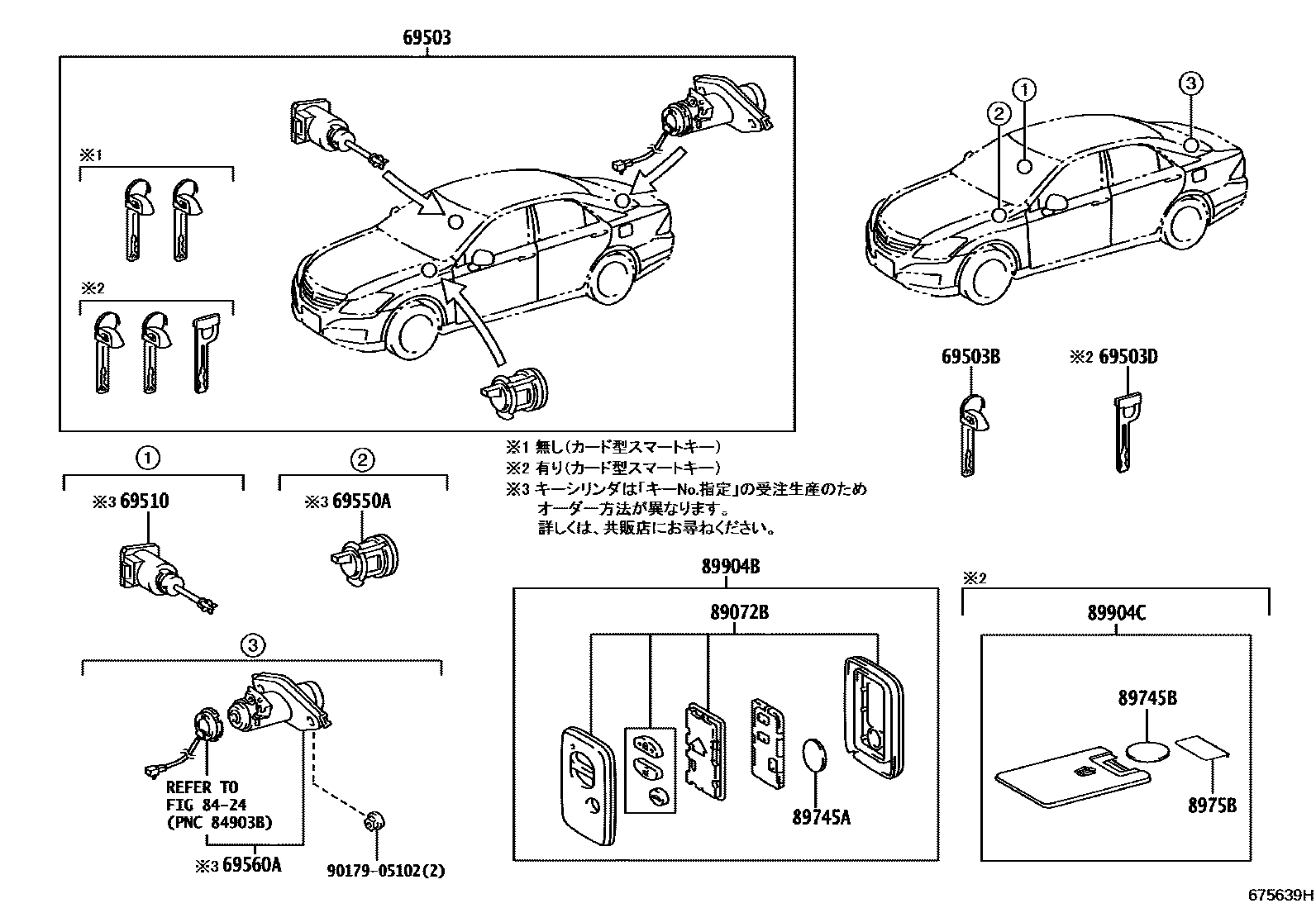

Parts diagram

69503CYLINDER SET, LOCK

main69005-30C11i201002-201212

main69005-30C20i200802-201001

main69005-30C21supersedes 69005-30C11i201002-201212

main69005-30C10i200805-201001

69503BKEY, CUT

main69515-30340×2i200802-201001

main69515-30341×2i201002-201212

69503DKEY, CUT(CARD KEY)

main69515-30330i200802-201002

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-30290i201002-201212

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040i200802-201002

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-30350i200802-201002

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-30600×2i200802-201002

main89072-30610×2i201012-201204

main89072-30620×2i201111-201204

main89072-30650×2i201012-201212

89745ABATTERY, TRANSMITTER

main89745-52020i200802-201002

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030i201002-201212

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-30010i201002-201212

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-30540×2i200802-201002

main89904-30710×2i201002-201106

main89904-30F30×2i201106-201212

main89904-30E10×2i201012-201106

main89904-30E20×2i201012-201106

main89904-30E30×2i201012-201106

main89904-30F40×2i201106-201204

main89904-30F50×2i201106-201204

main89904-30F60×2i201106-201212

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-30550i200802-201002

main89904-30720i201002-201106

main89904-30F70i201106-201212

9017905102

main90179-05102

14 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota CROWN

This section contains 14 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CROWN. Key components include: CYLINDER SET, LOCK, KEY, CUT, KEY, CUT(CARD KEY), CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK.
