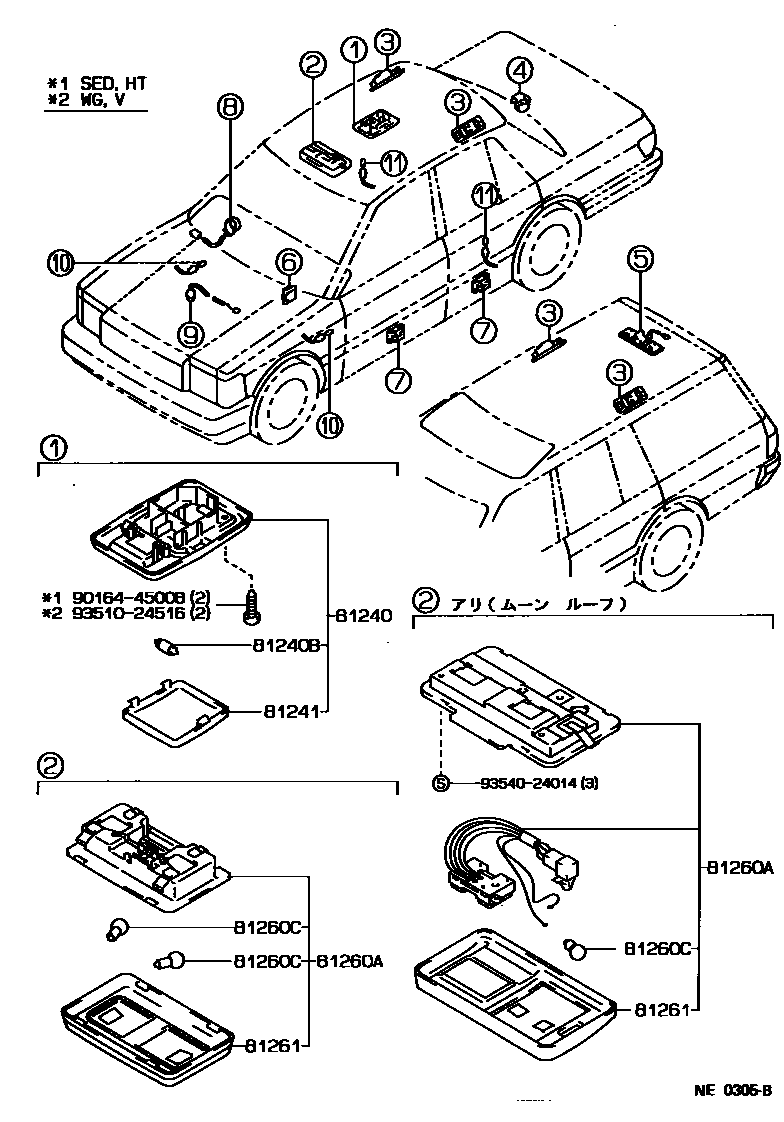

Toyota CROWN — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
SABLE,TRIM3#
BLUE,TRIM8#
BLUE,TRIM8#
main81240-30100-06iGS130,131,LS130,MS135..(HT,SED)..(ROY,SAL,SALEX,SPE,SSL); GS130..SED..(4HC,5F)..SDX..HTWC;GS130..SED..(4FC,4H)..(DLX,SDX)..HTWC;GS130,LS130,MS130,YS130..SED..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE)198709-198908
SABLE,TRIM3#; SABLE,TRIM3#,4#
BLUE,TRIM8#
SABLE,TRIM3#,4#
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81260LAMP ASSY, GLOVE BOX
main81260-30160iGS136..SDX;GS130,131,LS130,131,MS130,YS130..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWLPG)198709-199110
81260ALAMP ASSY, MAP
BLUE,TRIM8#
SABLE,TRIM3#
main81260-30140-04iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL; GS130,MS130..SDX..(LPG,TWLPG)198709-199110
main81260-30140-06iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL; GS130,MS130..SDX..(LPG,TWLPG)198709-199110
81260CBULB(FOR MAP LAMP)
main90981-12014×2iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL; GS130,MS130..SDX..(LPG,TWLPG); GS131..HT..ROY..SPC;JZS131,MS135,137,UZS131..(ROY,ROYG)..WIB198709-199110
81261LENS AND COVER, MAP LAMP
main81261-30140-04iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL; GS130,MS130..SDX..(LPG,TWLPG)198709-199110
main81261-30140-06iGS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL; GS130,MS130..SDX..(LPG,TWLPG)198709-199110
9016445008
main90164-45008
9351024516
main93510-24516
9354024014
main93540-24014
10 parts on this diagram · 3 diagrams in section
INTERIOR LAMP for Toyota CROWN
This section contains 36 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CROWN. Key components include: BULB, ASH RECEPTACLE LAMP, LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP, LAMP ASSY, ROOM, NO.1.
