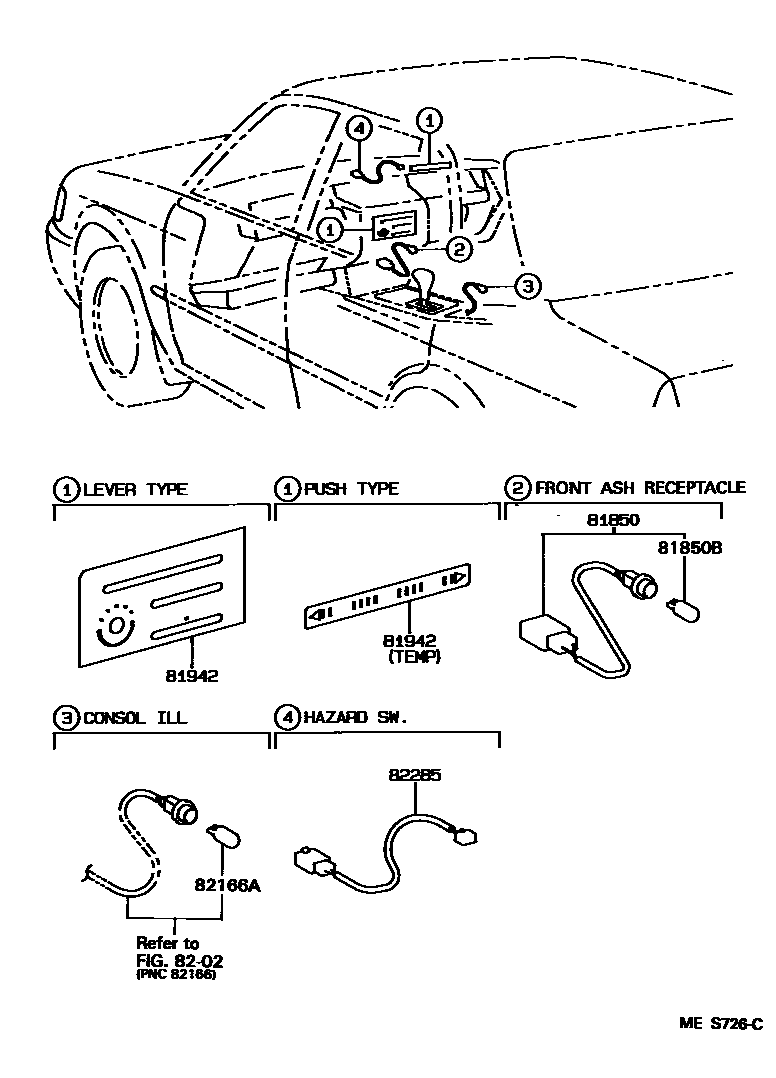

Toyota CROWN — INDICATOR

81850LAMP ASSY, INDICATOR

main81850-33010iGS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX199110

81850BBULB, INDICATOR LAMP

main90981-11014iGS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX199110

81942SHEET, HEATER CONTROL NAME

main81942-30060iYS130;GS130,136..STD199112-199512

main81942-30070iGS130,136..STD199110-199112

main81942-30080iGS130..DLX199110-199512

8202

82166ABULB, CONSOLE BOX

main90981-11014iGS130,JZS13#..4FC..(ROY,ROYG)199110

82285WIRE, ILLUMINATION

main82285-30060iGS13#,JZS13#,LS13#..(DLX,ROY,ROYG,SALEX,SDX)..(DSL,HTWC,TDE,TDEC,TWC)199110-199407

6 parts on this diagram · 1 diagram in section
