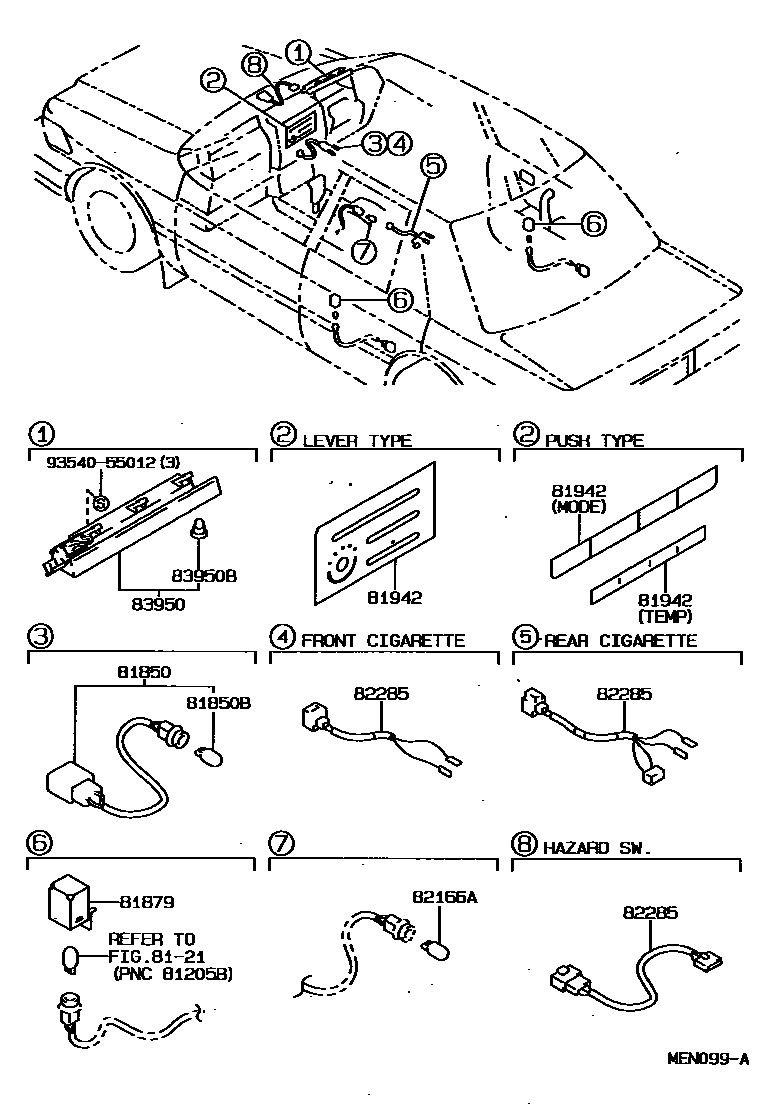

Toyota CROWN — INDICATOR

8121

81850LAMP ASSY, INDICATOR

main81850-30090iGS131..SSL..SPC;GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)198709-198809

81850BBULB, INDICATOR LAMP

main90981-11014iGS131..SSL..SPC;GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)198709-198809

81879BRACKET, INDICATOR LAMP

main81879-30010×2iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)198709-199110

main81879-30020×2iGS131..HT..ROY..SPC;GS130,131,LS130,MS135,137..HT..(EFI,TD,TDE,TWC)198808-198809

81942SHEET, HEATER CONTROL NAME

main81942-30060iYS130;GS130,136,LS130,136..STD198709-199110

main81942-30070iYS130;GS130,136,LS130,136..STD198709-199110

main81942-30080iGS130..WG..SDX;GS130,LS130..(DLX,SALEX)..(DSL,HTWC,TDE)198908-199110

main81942-30090iGS130..WG..SDX;GS130,LS130..(DLX,SALEX)..(DSL,HTWC,TDE)198908-199110

main81942-30100iGS130,131,LS130..HT..(4FC,5F)..(SALEX,SPE,SSL)198709-198908

main81942-30110iMS130..SDX;GS131..4HC..SALEX;GS130,LS130..(SED,WG)..(DLX,SAL,SALEX,SDX)198709-198908

main81942-30120iGS130,131,LS130..HT..(4FC,5F)..(SALEX,SPE,SSL)198709-198908

82166ABULB, CONSOLE BOX

main90981-11014iUZS131..4FC;GS130,131,JZS13#,MS135,137..4FC..(SPC,TWC)198709-199110

82285WIRE, ILLUMINATION

main82285-30010iGS130,131,MS135,137..4FC..(SPC,TWC)198709-198908

REAR CIGARETTE

main82285-30020iGS131,JZS131,MS135,137,UZS131..4HC;GS131,JZS131,MS135,137,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#,MS130,YS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)198709-199110

FRONT CIGARETTE

main82285-30030iGS131,LS131..HT..(4FC,5F)..SALEX198908-199110

REAR CIGARETTE

main82285-30040iGS130,136,LS130,136,YS130..STD198709-199110

FRONT CIGARETTE

main82285-30050iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)198709-198908

HAZARD SW.

main82285-30060iGS131,MS13#,UZS131..4HC;GS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,LS13#..(SED,V,WG)..(DLX,ROY,SALEX,SDX)198908-199008

HAZARD SW.

main82285-30070iUZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC)198908-199110

REAR CIGARETTE

83950LAMP ASSY, TELLTALE

main83950-30010iGS131..HT..4FC..SPC;MS135,137..4FC..WIB198709-198908

main83950-30020iGS131..HT..4FC..SPC;JZS131,MS13#,UZS131..4FC..WIB199008-199110

83950BBULB, TELLTALE LAMP

main84999-50140×8iMS135,137..4FC..WIB198709-198908

main84999-50190×9iGS131..WIB198908-199008

main84999-50330×4iMS135,137..4FC..WIB198709-198908

12V 1.4W,ORANGE CAP

main90072-02021×4iGS131..WIB198908-199008

9354055012

main93540-55012

10 parts on this diagram · 1 diagram in section
