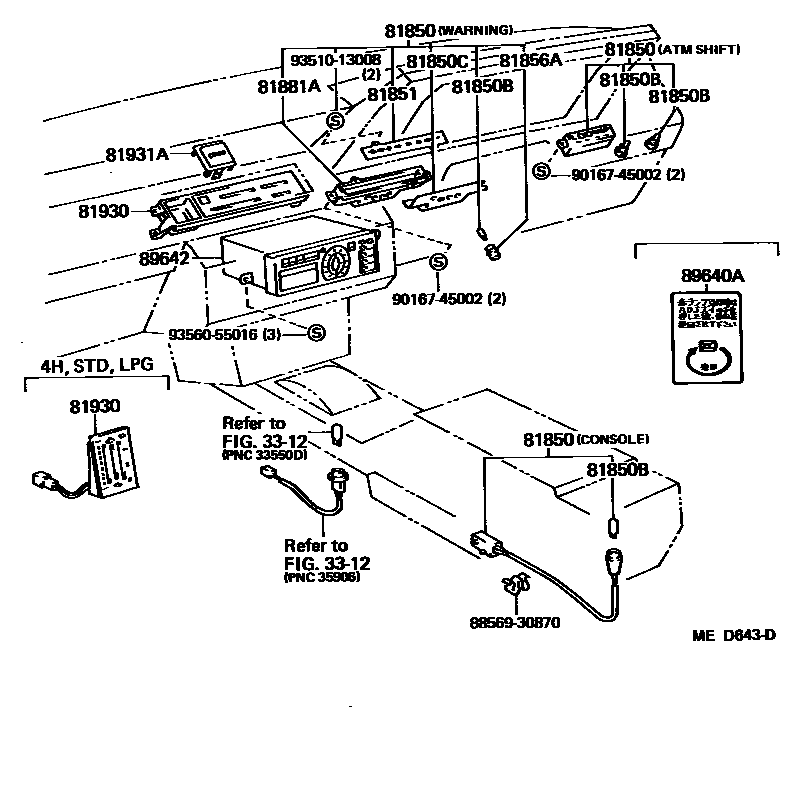

Toyota CROWN — INDICATOR

3312

81850LAMP ASSY, INDICATOR

main81850-30130iGS126..5F198308-198708

WARNING

main81850-30140iGS120,121,MS12#..(SED,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(EFI,TBO,TWC)198308-198708

WARNING

main81850-30150iGS121..4HC;GS121..SED..4FC..SPC198509-198708

WARNING,W/*AL

main81850-30160iLS12#..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SDX)198308-198708

WARNING

main81850-30240iGS121..HT..4HC;MS123,125..4HC;MS123,125..SED..4FC;GS121,MS120..SED..(ROY,SAL)198308-198708

ATM SHIFT

main81850-30250iLS12#..(SED,V,WG)..4FC198612-198708

ATM SHIFT

main81850-30260iGS120..HT..4FC198509-198612

ATM SHIFT

main81850-30270iGS121,MS12#..HT..4FC198308-198708

ATM SHIFT

main81850-30310iGS12#,LS12#,MS120,YS120..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL,STD)198308-198708

CONSOLE

81850BBULB, INDICATOR LAMP

main84999-20020×7iGS120,LS120..HT..4FC198308-198509

ATM SHIFT,12V 1.4W

main84999-20030iGS120,LS120..HT..4FC198308-198509

ATM SHIFT,12V 1.4W W/GREEN CAP

main84999-40010×2iGS120..HT..4HC;GS120..(SED,WG)..ATM198509-198708

ATM SHIFT,1.12W BASE OD=10

main90981-11018×8iGS12#,LS12#,MS12#,YS120..4FC,4HC,5F198308-198708

main90981-11024×6iGS120..HT..4HC;GS120..(SED,WG)..ATM198509-198708

81850CPLATE, INDICATOR LAMP

main83247-3A170iGS121..4HC;GS121..SED..4FC..SPC198509-198708

W/*AL

main83247-3A190iGS120,121,MS12#..(SED,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(EFI,TBO,TWC)198308-198708

main83247-3A230iGS126..5F198308-198708

main83247-3A290iLS12#..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SDX)198308-198708

81851LENS, INDICATOR LAMP

main83145-30010iGS121..4HC;GS121..SED..4FC..SPC198509-198708

W/*AL

main83145-30030iGS120,121,MS12#..(SED,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(EFI,TBO,TWC)198308-198708

main83145-30050iGS126..5F198308-198708

main83145-30150iLS12#..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SDX)198308-198708

81856ASOCKET, INDICATOR LAMP

main83101-14040×8iGS12#,LS12#,MS12#..(SED,V,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)198308-198708

81881ACOVER, INDICATOR LAMP

main83132-30550iGS12#,LS12#,MS12#..(SED,V,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)198308-198708

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-30170iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198509

main81930-30171iLS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198509-198708

main81930-30180iGS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198503

main81930-30181iGS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198503-198509

main81930-30190iGS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198503

W/*AIC

main81930-30191iGS120,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE)..(EFI,TBO,TD,TDE,TWC)198503-198509

W/*AAC

main81930-30200iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE)..(EFI,TBO,TD,TDE,TWC)198308-198502

W/*AAC

main81930-30210iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)198509-198708

main81930-30220iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)198509-198708

W/COOLER

main81930-30231iGS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198503-198509

W/*AIC

81931ACOVER, COOLER SWITCH HOLE

main55538-30070iGS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198509

main55538-30071iGS12#,LS12#..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)198509-198708

89640APLATE, CAUTION

main74526-30010iGS121,MS12#..ROY,SAL198308-198708

89642CLUSTER, COMPASS DISPLAY

main89642-30040iGS121,MS12#..ROY,SAL198308-198509

main89642-30050iGS121,MS125..TWC198509-198708

main89642-30060iGS121..SPC198509-198708

8856930870CLAMP (FOR COOLER RELAY)

main88569-30870

9016745002

main90167-45002

9351013008

main93510-13008

9356055016

main93560-55016

15 parts on this diagram · 1 diagram in section
