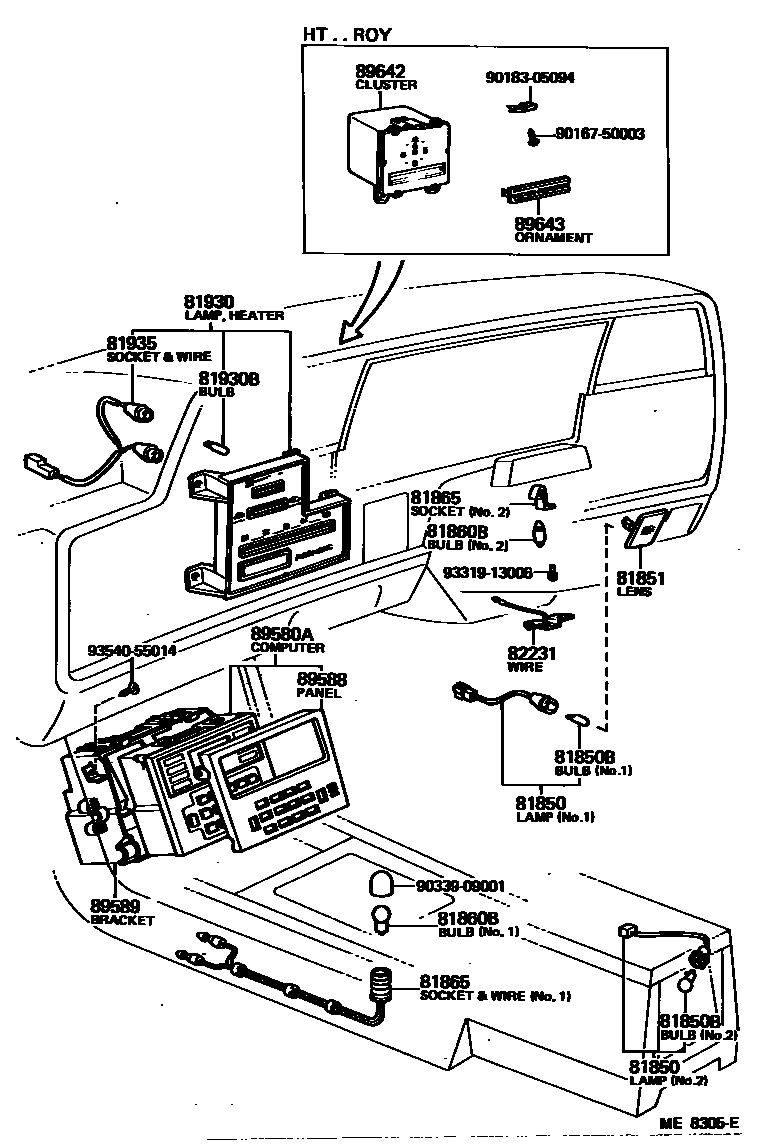

Toyota CROWN — INDICATOR

0001 1 0002 1

81850LAMP ASSY, INDICATOR

main81850-12050iLS110,MS110,112..ROY,SAL,SDX,SPE197909-198108

NO.1

main81850-30050iGS117,LS11#,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,SAL,SDX,SPE,STD)197909-198307

NO.2

main81850-30120iGS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE198108-198307

NO.1

81850BBULB, INDICATOR LAMP

main90981-11018iGS117,LS11#,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,SAL,SDX,SPE,STD)197909-198307

main99132-12034iGS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE197909-198307

81851LENS, INDICATOR LAMP

main55497-30010iGS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE197909-198307

81860LAMP ASSY, TRANSMISSION INDICATOR

main81823-30010-03iGS110,LS11#,MS110,112..ATM..(DSL,EFI,LPG,TBO,TDE)198108-198307

GRAY,GRAY,TRIM1#

main81823-30010-04iGS110,LS11#,MS110,112..ATM..(DSL,EFI,LPG,TBO,TDE)198108-198307

BLUE,BLUE,TRIM8#

main81823-30010-05iGS110,LS11#,MS110,112..ATM..(DSL,EFI,LPG,TBO,TDE)198108-198307

BEIGE,BEIGE,TRIM4#

main81823-30020-03iMS112..TWC198108-198307

GRAY,GRAY,TRIM1#

main81823-30020-04iMS112..TWC198108-198307

BLUE,BLUE,TRIM8#

main81823-30020-05iMS112..TWC198108-198307

BEIGE,BEIGE,TRIM4#

81860BBULB, TRANSMISSION INDICATOR LAMP

main90981-11006iLS110,MS110,112..3HC,4HC197909-198108

main90981-11014iMS112..TWC198108-198307

main90981-11024iGS110,LS11#,MS110,112..ATM..(DSL,EFI,LPG,TBO,TDE)198108-198307

main99132-11034iLS11#,MS110,112..3FC,4FC197909-198307

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-30040iGS110,LS11#,MS110,112..3FC,4FC197909-198307

NO.1

sub35906-12030

main35963-30030iLS110,MS110,112..3HC,4HC197909-198108

NO.2

main83101-14010iMS112..TWC198108-198307

NO.2

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-30080iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD197909-198307

W/*SEP

main81930-30100iGS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE)197909-198307

W/*AAC

main81930-30140iRS110;MS110..DLX..LPG;LS110,MS110..BTP,STD197909-198307

W/*IT

81930BBULB, HEATER CONTROL INDICATOR LAMP

main81936-30080iGS117,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198307

81935SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP

main81935-30080iGS117,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198307

82231WIRE, POSITION INDICATOR LAMP

main35977-30040iLS110,MS110,112..3HC,4HC197909-198108

89580ACOMPUTER ASSY, CRUISE PILOT

main89580-30010iMS112..ROY197909-198108

main89580-30020iGS110..SAL198108-198305

*EXT

main89580-30021iGS110..SAL198305-198307

*EXT

main89580-30030iMS112..TWC198108-198305

*EXT

main89580-30031iMS112..TWC198305-198307

*EXT

89588PANEL, CRUISE PILOT COMPUTER

main89588-30010iMS112..ROY197909-198108

main89588-30020iMS112..TWC198108-198305

*EXT

main89588-30021iMS112..TWC198305-198307

*EXT

89589BRACKET, CRUISE PILOT COMPUTER

main89589-30010iMS112..ROY197909-198108

main89589-30020iMS112..TWC198108-198307

*EXT

89642CLUSTER, COMPASS DISPLAY

main89642-30010iMS112..HT..ROY198010-198108

main89642-30020iMS112..HT..TWC198108-198204

main89642-30030iMS112..HT..TWC198204-198307

89643ORNAMENT, COMPASS DISPLAY

main89643-30010iMS112..HT..ROY198010-198108

main89643-30020iMS112..HT..TWC198108-198307

9016750003

main90167-50003

9018305094

main90183-05094

9033909001

main90339-09001

9331913006

main93319-13006

9354055014

main93540-55014

20 parts on this diagram · 2 diagrams in section
