Toyota CROWN — HORN

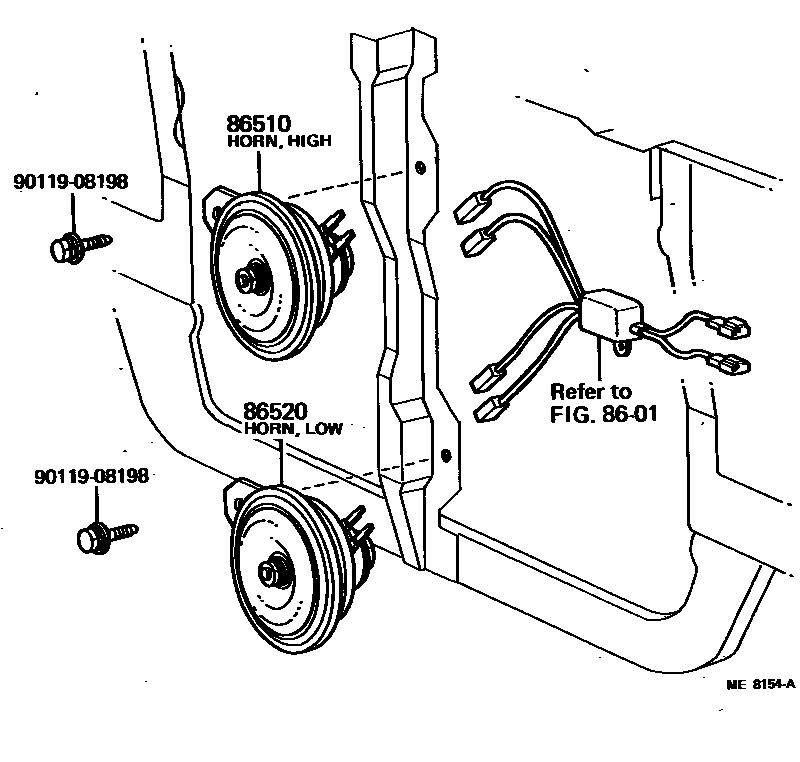

Parts diagram
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
→ Go to FIG 86-01
86510HORN ASSY, HIGH PITCHED
main86510-30280i197909-198108
DENSO
main86510-30290i197909-198108
MARUKO
main86510-30350i198108-198307
DENSO
main86510-30360i198108-198307
MARUKO
86520HORN ASSY, LOW PITCHED
main86520-30280i197909-198108
DENSO
main86520-30290i197909-198108
MARUKO
main86520-30350i198108-198307
DENSO
main86520-30360i198108-198307
MARUKO
9011908198
main90119-08198

4 parts on this diagram · 1 diagram in section

HORN for Toyota CROWN

This section contains 4 genuine Toyota parts for the HORN system of the Toyota CROWN. Key components include: RADIO RECEIVER & AMPLIFIER & CONDENSER, HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
