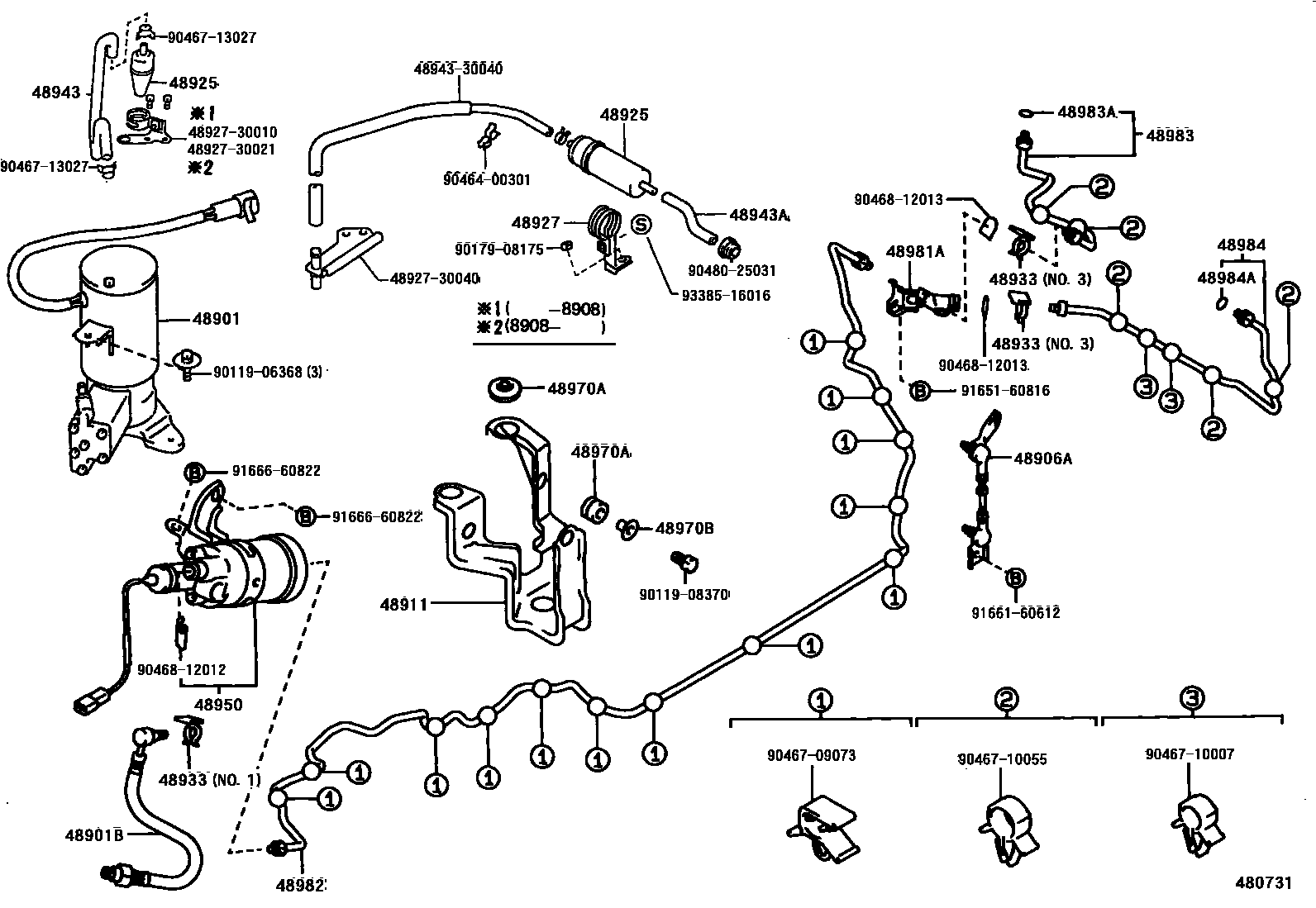

Toyota CROWN — HEIGHT CONTROL (AUTO-LEVELER)
48901COMPRESSOR SUB-ASSY, HEIGHT CONTROL
TOKICO
TOKICO
48901BHOSE, FLEXIBLE(FOR HEIGHT CONTROL COMPRESSOR)
48906ALINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR
48911BRACKET, HEIGHT CONTROL COMPRESSOR
48925FILTER, HEIGHT CONTROL
48927BRACKET, HEIGHT CONTROL AIR CLEANER, NO.1
48933HOLDER, AIR CONNECTOR CLIP
48943HOSE, HEIGHT CONTROL, NO.1
TOKICO
TOKICO
TOKICO
48943AHOSE, HEIGHT CONTROL, NO.3
48950DRYER ASSY, HEIGHT CONTROL
AISIN(BODY:WHITE)
TOKICO(BODY:BLACK)
48970ABUSH(FOR HEIGHT CONTROL COMPRESSOR)
OD=22,T=15.7
AISIN,OD=30,T=15
48970BSPACER(FOR HEIGHT CONTROL COMPRESSOR BRACKET)
48981AWAY, 3(FOR HEIGHT CONTROL TUBE)
48982TUBE, HEIGHT CONTROL, NO.2
48983TUBE, HEIGHT CONTROL, NO.3
48983ARING, O(FOR HEIGHT CONTROL TUBE NO.3)
48984TUBE, HEIGHT CONTROL, NO.4
48984ARING, O(FOR HEIGHT CONTROL TUBE NO.4)
4892730010BRACKET, HEIGHT CONTROL AIR CLEANER, NO.1
main48927-30010
4892730021BRACKET, HEIGHT CONTROL AIR CLEANER, NO.1
main48927-30021
4892730040BRACKET, HEIGHT CONTROL AIR CLEANER, NO.1
main48927-30040
4894330040HOSE, HEIGHT CONTROL, NO.1
main48943-30040
9011906368
main90119-06368
9011908370
main90119-08370
9017908175
main90179-08175
9046400301
main90464-00301
9046709073
main90467-09073
9046710007
main90467-10007
9046710055
main90467-10055
9046713027
main90467-13027
9046812012
main90468-12012
9046812013
main90468-12013
9048025031
main90480-25031
9165160816
main91651-60816
9166160612
main91661-60612
9166660822
main91666-60822
9338516016
main93385-16016
37 parts on this diagram · 5 diagrams in section
HEIGHT CONTROL (AUTO-LEVELER) for Toyota CROWN
This section contains 76 genuine Toyota parts for the HEIGHT CONTROL (AUTO-LEVELER) system of the Toyota CROWN. Key components include: VALVE SUB-ASSY, HEIGHT CONTROL, NO.1, VALVE SUB-ASSY, HEIGHT CONTROL, NO.2, BRACKET SUB-ASSY, PNEUMATIC TANK, NO.1, BRACKET SUB-ASSY, PNEUMATIC TANK, NO.2, COMPRESSOR SUB-ASSY, HEIGHT CONTROL.
