Toyota CROWN — HEATING & AIR CONDITIONING - COMPRESSOR

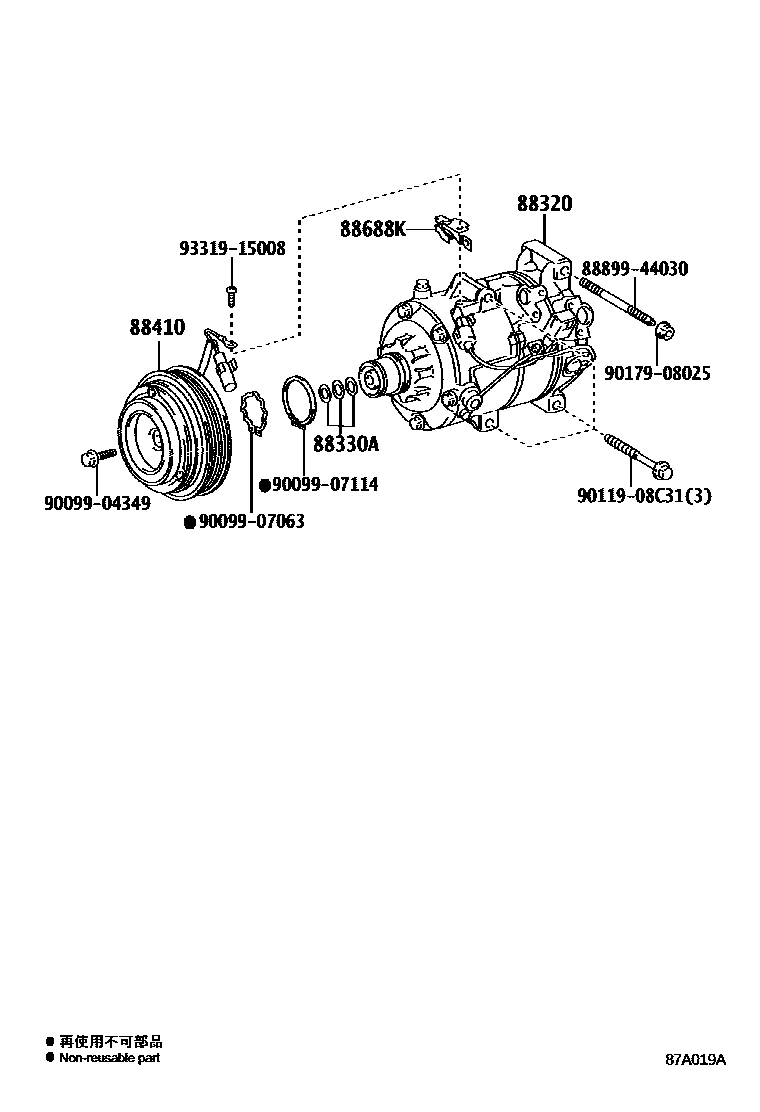

Parts diagram

88320COMPRESSOR ASSY, COOLER

main88320-3A300i201002-201212

main88320-3A310i200802-201002

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i201002-201212

88410CLUTCH ASSY, MAGNET

main88410-3A300i200802-201002

88688KBRACKET, COOLER COMPRESSOR

main88688-33460i200802-201002

8889944030COVER, EVAPORATOR

main88899-44030

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C31

main90119-08C31

9017908025

main90179-08025

9331915008

main93319-15008

11 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CROWN

This section contains 14 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CROWN. Key components include: COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), COMPRESSOR ASSY, W/MOTOR, CLUTCH ASSY, MAGNET, BRACKET, COOLER COMPRESSOR.
