Toyota CROWN — HEATING & AIR CONDITIONING - COMPRESSOR

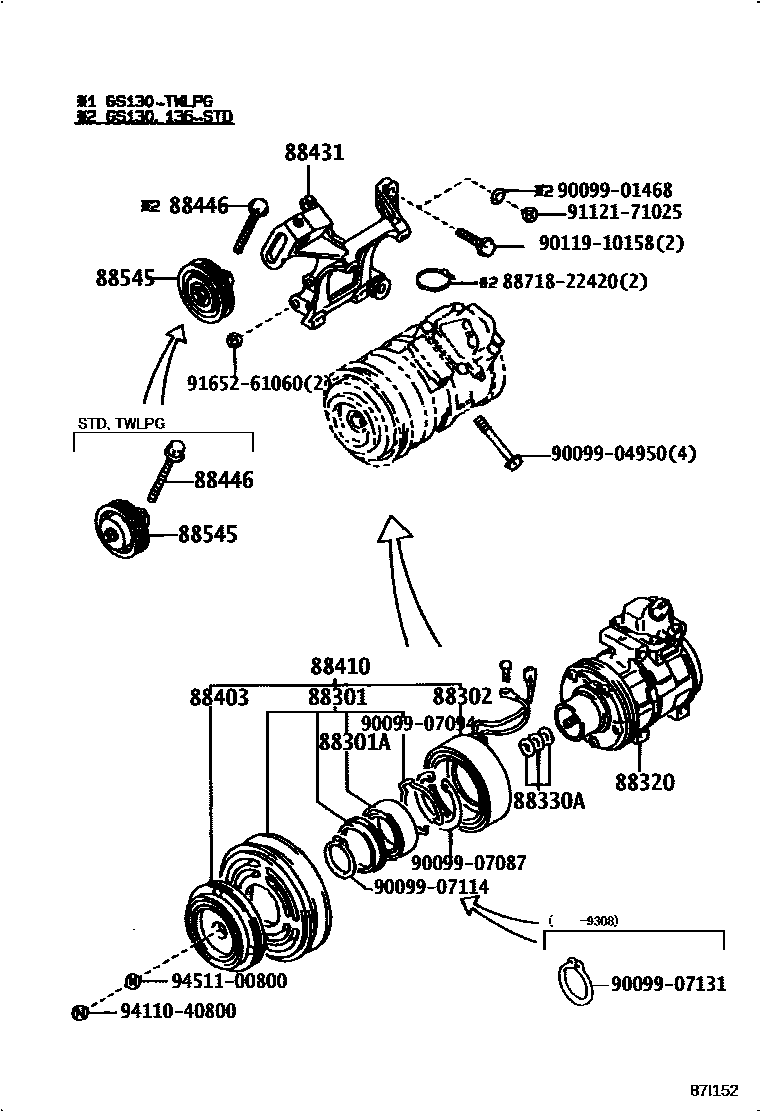

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12160i199110

main88412-22050i199110-199308

main88412-22250i199308-199512

main88412-2A030i199609

main88412-30400i199112-199308

main88412-30410i199110-199609

main88412-30430i199110-199409

main88412-30470i199308-199512

88301ABEARING (FOR MAGNET CLUTCH)

main90099-10133i199110-199308

main90099-10207i199112-199308

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-20180i199110-199308

main88411-2A030i199609

main88411-2B040i199308

main88411-30500i199112-199308

main88411-30510i199110-199308

main88411-30540i199110-199308

main88411-30560i199110-199409

main88411-30570i199308-199512

main88411-3A010i199509-199512

main88411-3A020i199308-199512

main88411-3A050i199502-199609

88320COMPRESSOR ASSY, COOLER

main88320-22700i199308-199512

main88320-30421i199110-199308

main88320-30550i199110-199308

main88320-30570i199110-199308

main88320-30610i199112-199308

main88320-30640i199110-199301

main88320-30641i199301-199308

main88320-30651i199308-199512

main88320-30670i199110-199308

main88320-3A010i199308-199609

main88320-3A020i199308-199409

main88320-3A030i199308-199512

main88320-3A040i199308-199904

main88320-3A160i199609-199904

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050i199112-199512

main88335-14020i199110

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030i199110-199112

main88403-16011i199110-199308

main88403-30290i199308-199502

main88403-3A020i199502-199609

main88403-3A040i199308-199502

main88403-3A060i199110-199308

88410CLUTCH ASSY, MAGNET

main88410-30590i199110-199308

main88410-30640i199110-199308

main88410-30650i199112-199308

main88410-30670i199110-199308

main88410-30710i199308-199502

main88410-30740i199110-199308

main88410-30770i199609

main88410-3A010i199308-199502

main88410-3A020i199308-199409

main88410-3A030i199308-199512

main88410-3A040i199308

main88410-3A090i199308-199512

main88410-3A100i199502-199512

main88410-3A180i199502-199609

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-22270i199110-199308

main88431-22330i199110-199201

main88431-22331i199201

main88431-24041i199112-199308

main88431-24060i199110

main88431-30490i199112-199512

main88431-30620i199112-199512

88446BOLT, IDLE PULLEY

main90099-04306i199110-199904

main90099-04417i199110-199409

88545PULLEY ASSY, IDLE

main88440-17010i199110

main88440-24010i199110-199308

main88440-35010i199110-199409

main88440-35020i199112-199512

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

9009901468

main90099-01468

9009904950

main90099-04950

9009907087

main90099-07087

9009907094

main90099-07094

9009907114

main90099-07114

9009907131

main90099-07131

9011910158

main90119-10158

9112171025

main91121-71025

9165261060

main91652-61060

9411040800

main94110-40800

9451100800

main94511-00800

22 parts on this diagram · 6 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CROWN

This section contains 53 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CROWN. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, BEARING (FOR MAGNET CLUTCH), STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH).
