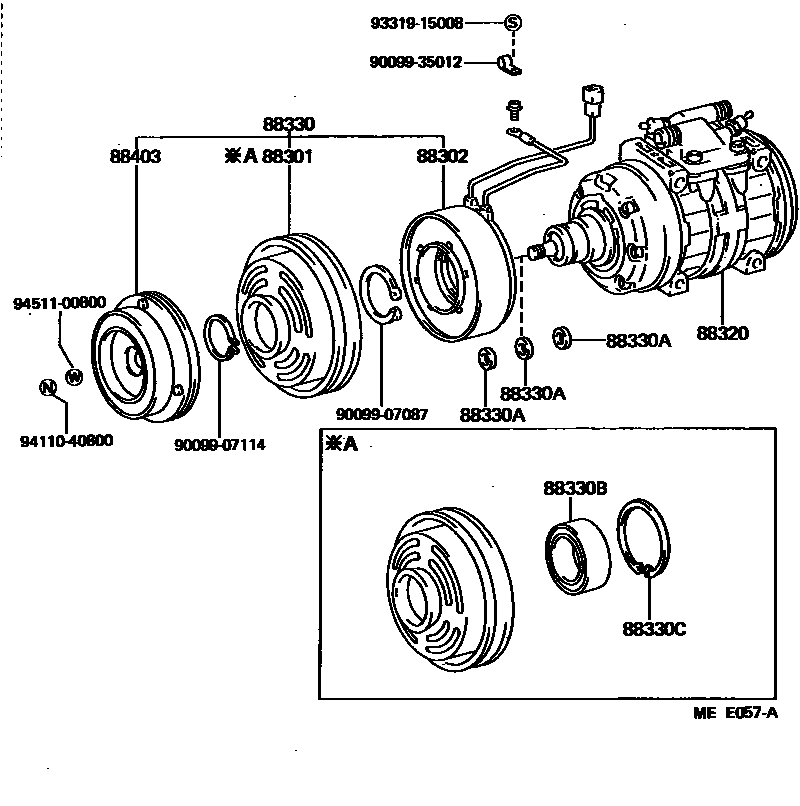

Toyota CROWN — HEATING & AIR CONDITIONING - COMPRESSOR
88301ROTOR SUB-ASSY, MAGNET CLUTCH
88302STATOR SUB-ASSY, MAGNET CLUTCH
88320COMPRESSOR ASSY, COOLER
W/*MPAAC
TAXI SPEC
TAXI SPEC
88330CLUTCH ASSY, MAGNET
88330AWASHER (FOR MAGNET CLUTCH)
main90099-01108iGS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG)198308-198509
T=0.5
main90099-01350iGS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG)198308-198509
T=0.1
main90099-01351iGS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG)198308-198509
T=0.2
88330BBEARING, MAGNET CLUTCH
88330CRING, SNAP (FOR MAGNET CLUTCH)
88403HUB SUB-ASSY, MAGNET CLUTCH
9009907087
main90099-07087
9009907114
main90099-07114
9009935012
main90099-35012
9331915008
main93319-15008
9411040800
main94110-40800
9451100800
main94511-00800
14 parts on this diagram · 4 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CROWN
This section contains 56 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CROWN. Key components include: V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, CLUTCH ASSY, MAGNET.
