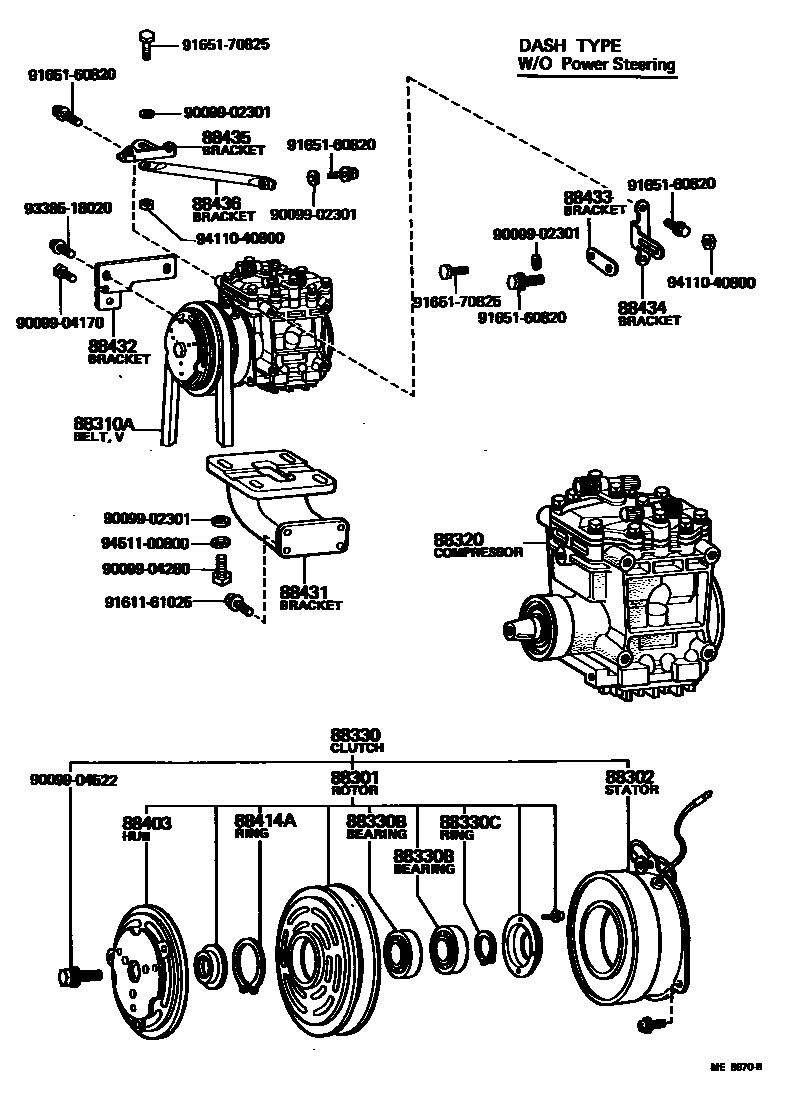

Toyota CROWN — HEATING & AIR CONDITIONING - COMPRESSOR
88301ROTOR SUB-ASSY, MAGNET CLUTCH
W/PS
W/AIR CONDITIONER,W/O PS
W/DASH TYPE COOLER,W/O PS
88302STATOR SUB-ASSY, MAGNET CLUTCH
W/AIR CONDITIONER OR PS
W/DASH TYPE COOLER,W/O PS
W/DASH TYPE COOLER
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
W/AIR CONDITIONER,W/O PS
W/DASH TYPE COOLER,W/O PS
W/PS
88320COMPRESSOR ASSY, COOLER
W/DASH TYPE COOLER
88330CLUTCH ASSY, MAGNET
W/PS
W/AIR CONDITIONER,W/O PS
W/DASH TYPE COOLER,W/O PS
W/DASH TYPE COOLER
88330BBEARING, MAGNET CLUTCH
88330CRING, SNAP (FOR MAGNET CLUTCH)
W/DASH TYPE COOLER,W/O PS
88403HUB SUB-ASSY, MAGNET CLUTCH
W/DASH TYPE COOLER,W/O PS
W/DASH TYPE COOLER
88414ARING, SHIELD SNAP
88431BRACKET, COMPRESSOR MOUNTING, NO.1
W/PS
88432BRACKET, COMPRESSOR MOUNTING, NO.2
88433BRACKET, COMPRESSOR MOUNTING, NO.3
W/PS
88434BRACKET, COMPRESSOR MOUNTING, NO.4
88435BRACKET, COMPRESSOR MOUNTING, NO.5
88436BRACKET, COMPRESSOR MOUNTING, NO.6
W/PS
9009902301
main90099-02301
9009904170
main90099-04170
9009904280
main90099-04280
9009904522
main90099-04522
9161161025
main91611-61025
9165160820
main91651-60820
9165170825
main91651-70825
9338518020
main93385-18020
9411040800
main94110-40800
9451100800
main94511-00800
25 parts on this diagram · 7 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CROWN
This section contains 68 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CROWN. Key components include: RADIATOR & WATER OUTLET, BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), POWER STEERING TUBE, HEATING & AIR CONDITIONING - COMPRESSOR.
