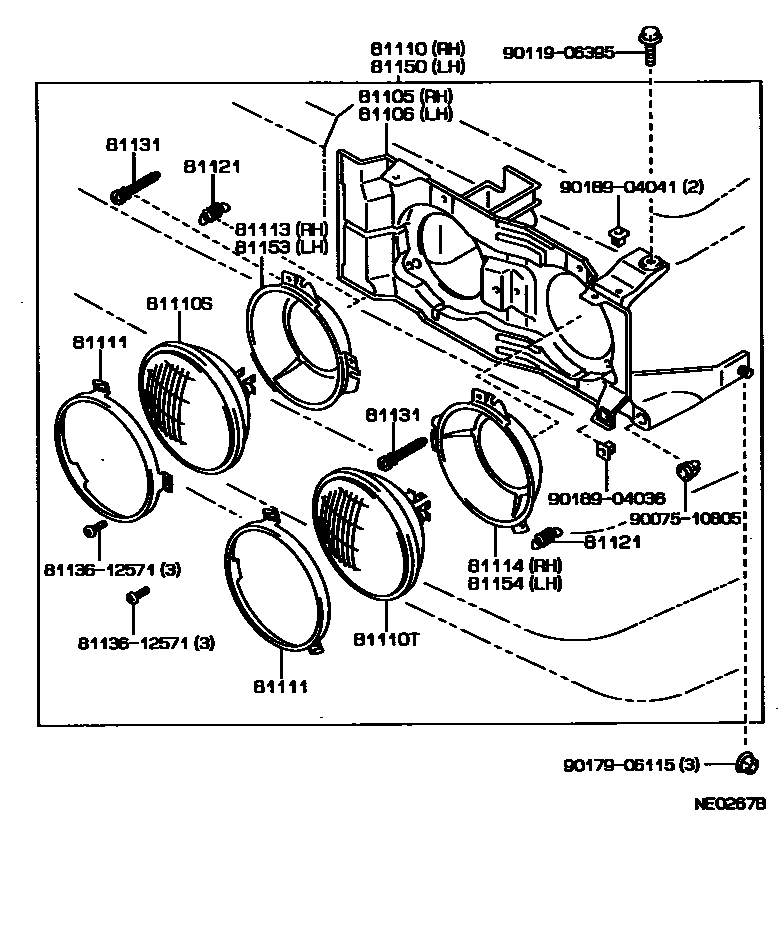

Toyota CROWN — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
main81120-30780iGS130,131,LS130,MS13#,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX); GS130,LS130..WG..(ROY,SALEX); GS130..WG..SDX198709-198709
main81120-30781iGS130..WG..(ROY,SALEX);LS130..(SED,WG)..(DLX,SALEX,SDX);GS130,131,MS13#,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX); GS130..WG..SDX198709-198908
main81120-30782iGS130..SED..SDX;GS130..DLX,ROY,SALEX;GS131,JZS13#,LS130,131,MS13#,UZS131,YS130..(SED,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX); GS130..WG..SDX198908-199110
81110SSEALED BEAM UNIT, NO.1
81110TSEALED BEAM UNIT, NO.2
81111RING, SEALED BEAM RETAINING
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81114RING, SEALED BEAM MOUNTING, NO.2 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
main81160-30780iGS130,131,LS130,MS135,137..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX); GS130,LS130..WG..(ROY,SALEX); GS130..WG..SDX198709-198709
main81160-30781iGS130..WG..(ROY,SALEX);LS130..(SED,WG)..(DLX,SALEX,SDX);GS130,131,MS135,137..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX); GS130..WG..SDX198709-198908
main81160-30782iGS130..SED..SDX;GS130..DLX,ROY,SALEX;GS131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX); GS130..WG..SDX198908-199110
81153RING, SEALED BEAM MOUNTING, NO.1 LH
81154RING, SEALED BEAM MOUNTING, NO.2 LH
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9007510805
main90075-10805
9011906395
main90119-06395
9017906115
main90179-06115
9018904036
main90189-04036
9018904041
main90189-04041
19 parts on this diagram · 4 diagrams in section
HEADLAMP for Toyota CROWN
This section contains 34 genuine Toyota parts for the HEADLAMP system of the Toyota CROWN. Key components include: RADIATOR GRILLE, HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1).
