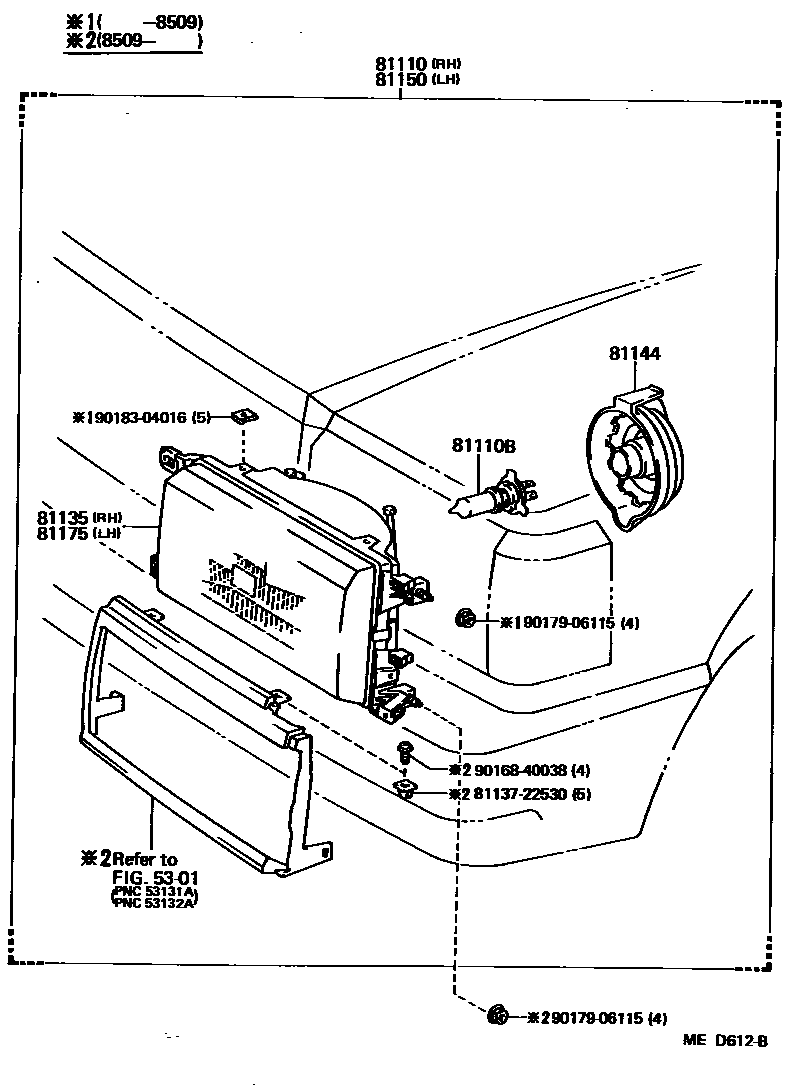

Toyota CROWN — HEADLAMP
5301RADIATOR GRILLE
81110HEADLAMP ASSY, RH
12V 60/55W,HALOGEN
12V 60/55W,HALOGEN
12V 65/60W
12V 60/55W,HALOGEN
81110BBULB(FOR HEADLAMP, NO.1)
81135UNIT ASSY, HEADLAMP, RH
12V 60/55W,HALOGEN
12V 65/60W
12V 60/55W,HALOGEN
81144COVER, HEADLAMP, NO.1
main81139-30590iGS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX); GS120,121,LS120,MS125..HT198509-198510
RH; RH & LH
LH
81150HEADLAMP ASSY, LH
12V 60/55W,HALOGEN
12V 60/55W,HALOGEN
12V 65/60W
12V 60/55W,HALOGEN
81175UNIT ASSY, HEADLAMP, LH
12V 60/55W,HALOGEN
12V 65/60W
12V 60/55W,HALOGEN
8113722530PROTECTOR, HEADLAMP, NO.2 RH
main81137-22530
9016840038
main90168-40038
9017906115
main90179-06115
9018304016
main90183-04016
11 parts on this diagram · 3 diagrams in section
HEADLAMP for Toyota CROWN
This section contains 27 genuine Toyota parts for the HEADLAMP system of the Toyota CROWN. Key components include: RADIATOR GRILLE, HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1).
