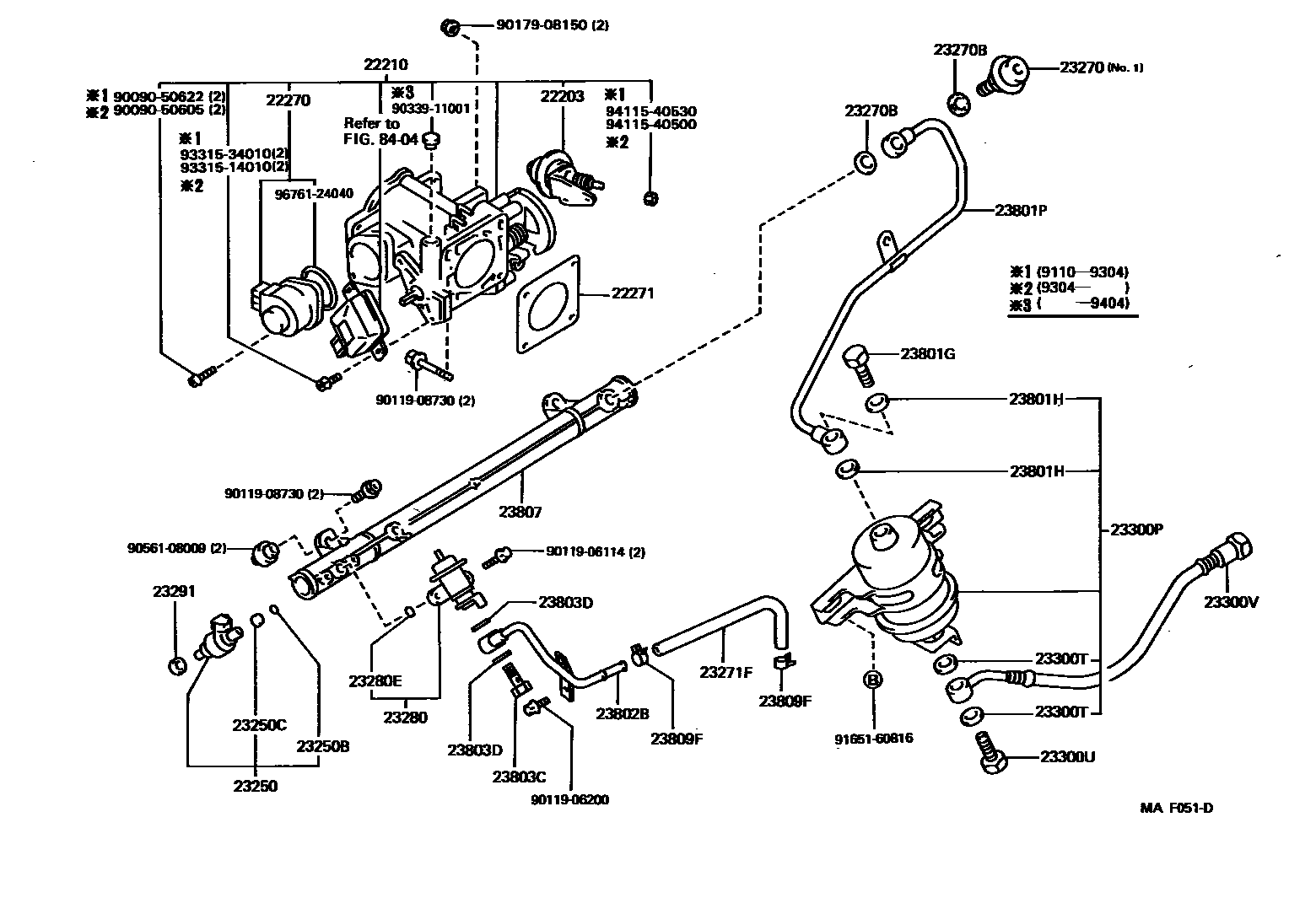

Toyota CROWN — FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
NO.1
NO.1
NO.2
23270BGASKET(FOR PULSATION DAMPER HOSE)
DAMPER SIDE
DELIVERY PIPE SIDE
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23300VHOSE, FUEL(FOR FUEL INLET)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807PIPE SUB-ASSY, FUEL DELIVERY
23809FCLIP(FOR FUEL PIPE SUPPORT)
RETURN TUBE SIDE
8404ELECTRONIC FUEL INJECTION SYSTEM
9009050605
main90090-50605
9009050622
main90090-50622
9011906114
main90119-06114
9011906200
main90119-06200
9011908730
main90119-08730
9017908150
main90179-08150
9033911001
main90339-11001
9056108009
main90561-08009
9165160816
main91651-60816
9331514010
main93315-14010
9331534010
main93315-34010
9411540500
main94115-40500
9411540530
main94115-40530
9676124040
main96761-24040
40 parts on this diagram · 8 diagrams in section
FUEL INJECTION SYSTEM for Toyota CROWN
This section contains 108 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota CROWN. Key components include: DASH POT SUB-ASSY(FOR THROTTLE BODY), BODY ASSY, THROTTLE, THERMOSTAT, MANIFOLD, BRACKET, THROTTLE BODY, VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY).
