Toyota CROWN — FUEL FILTER

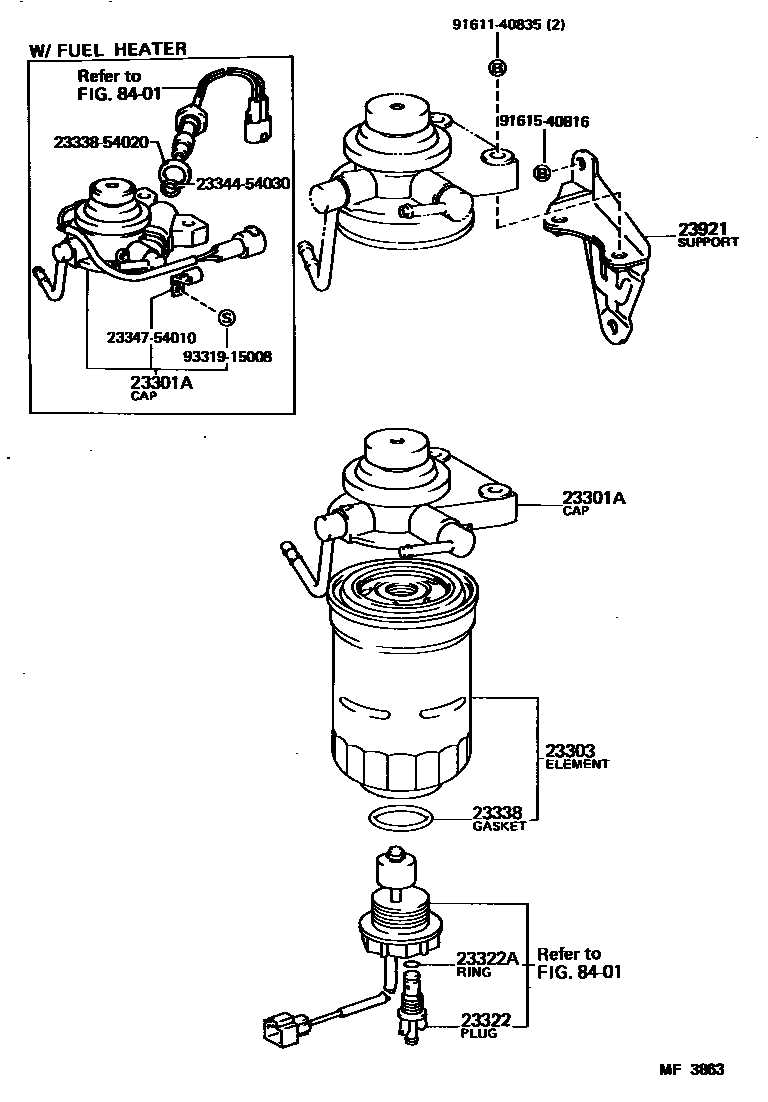

Parts diagram

23301ACAP ASSY, FUEL FILTER

main23301-54350i198709-199110

main23301-54360i198709-199110

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i198709-199110

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i198709-199110

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i198709-199110

23338GASKET(FOR WARNING SWITCH)

main23344-64010i198709-199110

23921SUPPORT, FUEL FILTER

main23921-54240i198709-199110

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2333854020GASKET(FOR WARNING SWITCH)

main23338-54020

2334454030GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-54030

2334754010CLIP, CORD

main23347-54010

9161140835

main91611-40835

9161540816

main91615-40816

9331915008

main93319-15008

13 parts on this diagram · 2 diagrams in section

FUEL FILTER for Toyota CROWN

This section contains 16 genuine Toyota parts for the FUEL FILTER system of the Toyota CROWN. Key components include: CAP ASSY, FUEL FILTER, ELEMENT SUB-ASSY, FUEL FILTER, PLUG, DRAIN(FOR FUEL FILTER), RING, O(FOR DRAIN PLUG), GASKET(FOR WARNING SWITCH).
