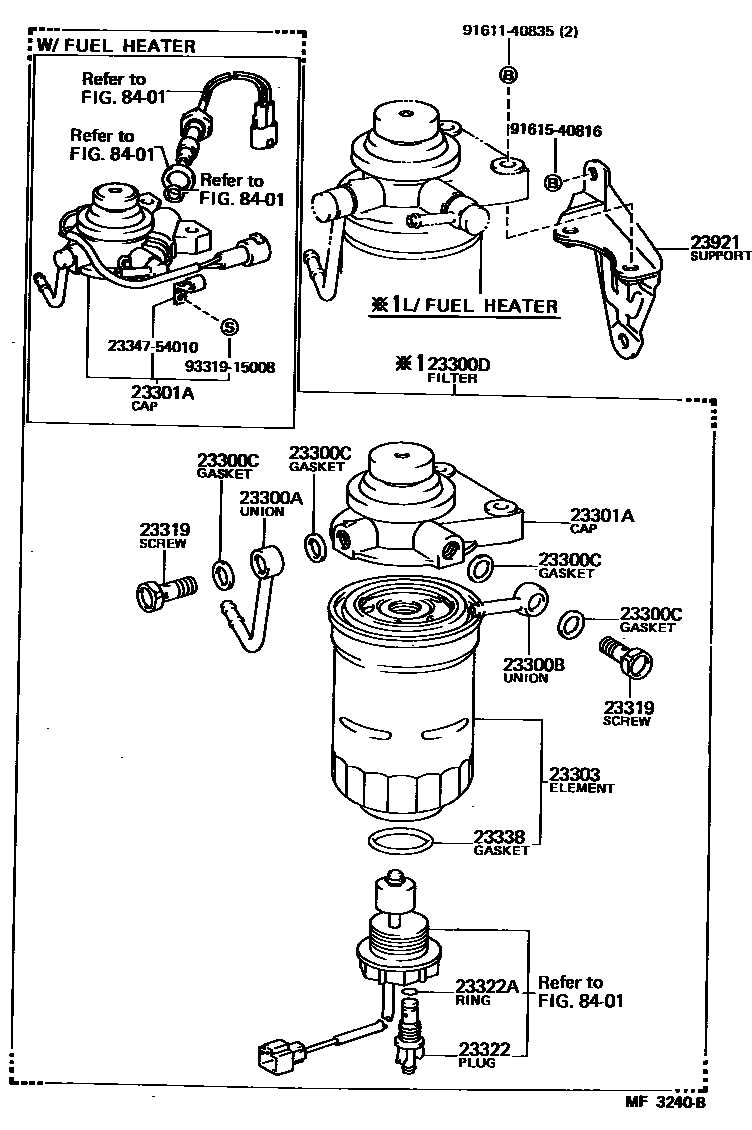

Toyota CROWN — FUEL FILTER

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main23323-54040i198308-198606

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main90405-08016i198308-198606

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030×4i198308-198606

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-54150i198308-198606

23301ACAP ASSY, FUEL FILTER

main23301-54180i198509-198708

W/FUEL HEATER

main23301-54260i198606-198708

main23301-64010i198308-198606

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i198308-198708

23319SCREW, FUEL PIPE FOLLOW

main90099-18011×2i198308-198609

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i198308-198708

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i198308-198708

23338GASKET(FOR WARNING SWITCH)

main23344-64010i198308-198708

23921SUPPORT, FUEL FILTER

main23921-54120i198308-198509

main23921-54121i198509-198708

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2334754010CLIP, CORD

main23347-54010

9161140835

main91611-40835

9161540816

main91615-40816

9331915008

main93319-15008

16 parts on this diagram · 2 diagrams in section

FUEL FILTER for Toyota CROWN

This section contains 18 genuine Toyota parts for the FUEL FILTER system of the Toyota CROWN. Key components include: UNION, NIPPLE(FOR FUEL FILTER INLET), UNION, NIPPLE(FOR FUEL FILTER OUTLET), GASKET, NIPPLE UNION(FOR FUEL), FILTER ASSY, FUEL(FOR DIESEL), CAP ASSY, FUEL FILTER.
