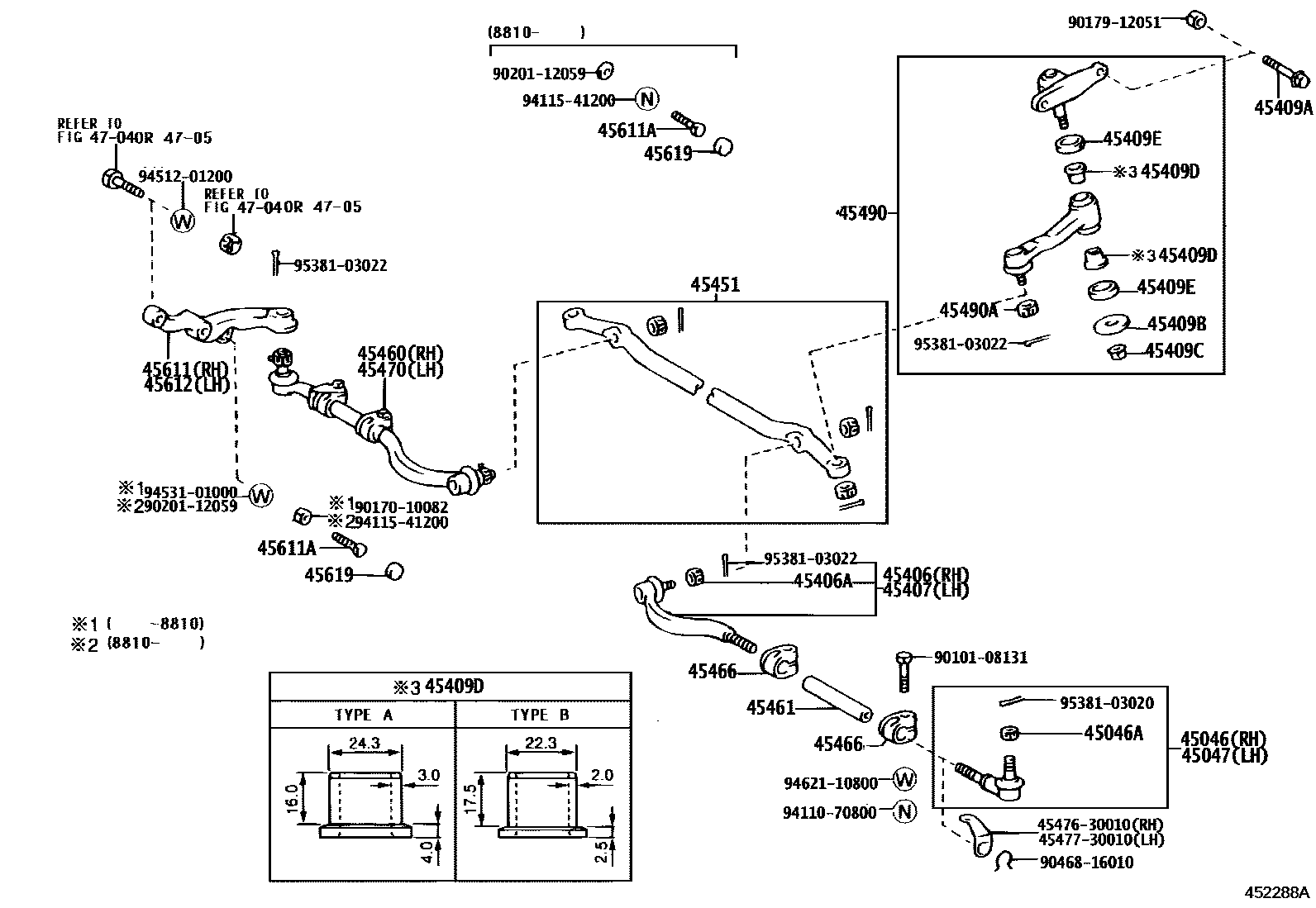

Toyota CROWN — FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
main45046-39155iGS130..WG..MTM;GS130,LS130..STD;GS136,LS136,YS130;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
main45046-39195iGS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL; LS130..STD;YS130..4HC;GS136,LS136;GS130..WG..MTM;GS130,MS130,YS130..4H..DLX..(LPEFI,LPG,TWLPG); YS130..MTM..STD198709-199110
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
main45046-39155iGS130..WG..MTM;GS130,LS130..STD;GS136,LS136,YS130;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
main45046-39195iGS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL; LS130..STD;YS130..4HC;GS136,LS136;GS130..WG..MTM;GS130,MS130,YS130..4H..DLX..(LPEFI,LPG,TWLPG); YS130..MTM..STD198709-199110
45406ROD SUB-ASSY, TIE, RH
45406ANUT, CASTLE(FOR TIE ROD)
45407ROD SUB-ASSY, TIE, LH
45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)
45409CNUT(FOR IDLER ARM SUPPORT)
45409DBUSH(FOR IDLER ARM)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
45409ESEAL, DUST(FOR IDLER ARM SUPPORT)
45451ROD, STEERING RELAY
main45451-39035iLS130..STD;YS130..4HC;GS136,LS136;GS130..WG..MTM;GS130,MS130,YS130..4H..DLX..(LPEFI,LPG,TWLPG); YS130..MTM..STD198709-199110
main45451-39055iGS130..WG..MTM;GS130,LS130..STD;GS136,LS136,YS130;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
45460ROD ASSY, TIE, RH
main45460-39265iGS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL; LS130..STD;YS130..4HC;GS136,LS136;GS130..WG..MTM;GS130,MS130,YS130..4H..DLX..(LPEFI,LPG,TWLPG); YS130..MTM..STD198709-199110
main45460-39275iGS130..WG..MTM;GS130,LS130..STD;GS136,LS136,YS130;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
45461ROD, STEERING TIE
main45465-30031×2iGS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL; LS130..STD;YS130..4HC;GS136,LS136;GS130..WG..MTM;GS130,MS130,YS130..4H..DLX..(LPEFI,LPG,TWLPG); YS130..MTM..STD198709-199110
main45465-30041×2iGS130..WG..MTM;GS130,LS130..STD;GS136,LS136,YS130;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
45466CLAMP, TIE ROD END
main45466-22020×2iGS130,LS130..STD; GS130..4H..DLX..TWLPG; GS130..WG..MTM; GS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL; GS136,LS136,YS130; MS130..4H..DLX198709-199110
main45466-30030×2iGS136,LS130,136,YS130;GS130,131,JZS13#,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110
45470ROD ASSY, TIE, LH
main45460-39275iGS130..WG..MTM;GS130,LS130..STD;GS136,LS136,YS130;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
main45470-39065iGS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL; LS130..STD;YS130..4HC;GS136,LS136;GS130..WG..MTM;GS130,MS130,YS130..4H..DLX..(LPEFI,LPG,TWLPG); YS130..MTM..STD198709-199110
45490ARM ASSY, STEERING IDLER
main45490-39265iGS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL; LS130..STD;GS130..WG..MTM;GS136,LS136,YS130;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
main45490-39285iGS130..WG..MTM;GS130,LS130..STD;GS136,LS136,YS130;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
45490ANUT, CASTLE(FOR IDLER ARM)
45611ARM, STEERING KNUCKLE, RH
main45611-30120iLS130..4H..STD; LS130..5F..STD; MS130..4H..SDX;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL; YS130..4HC;GS136,LS136;GS130..WG..MTM;MS130,YS130..4H..DLX; YS130..MTM..STD198709-198810
main45611-30121iGS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL; LS130..4H..STD; LS130..5F..STD; YS130..4HC;GS136,LS136;GS130..WG..MTM;GS130,MS130,YS130..4H..DLX..(LPEFI,LPG,TWLPG)198810-199110
main45611-30130iGS130..WG..MTM;MS130..4H..DLX;GS130,LS130..STD;GS136,LS136,YS130; LS130..4H..STD198709-198810
45611ABOLT, KNUCKLE STOPPER
45612ARM, STEERING KNUCKLE, LH
main45612-30120iLS130..4H..STD; LS130..5F..STD; MS130..4H..SDX;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL; YS130..4HC;GS136,LS136;GS130..WG..MTM;MS130,YS130..4H..DLX; YS130..MTM..STD198709-198810
main45612-30121iGS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL; LS130..5F..STD; YS130..4HC;GS136,LS136;GS130..WG..MTM;GS130,MS130,YS130..4H..DLX..(LPEFI,LPG,TWLPG)198810-199110
main45612-30130iGS130..WG..MTM;MS130..4H..DLX;GS130,LS130..STD;GS136,LS136,YS130; LS130..4H..STD198709-198810
45619COVER, KNUCKLE STOPPER
4704FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
4547630010PLATE, TURNING STOPPER
main45476-30010
4547730010PLATE, STOPPER
main45477-30010
9010108131
main90101-08131
9017010082
main90170-10082
9017912051
main90179-12051
9020112059
main90201-12059
9046816010
main90468-16010
9411070800
main94110-70800
9411541200
main94115-41200
9451201200
main94512-01200
9453101000
main94531-01000
9462110800
main94621-10800
9538103020
main95381-03020
9538103022
main95381-03022
37 parts on this diagram · 10 diagrams in section
FRONT STEERING GEAR & LINK for Toyota CROWN
This section contains 94 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota CROWN. Key components include: GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL), GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE, VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE, SEAT, UNION(PRESSURE CONTROL VALVE ASSY), SEAT, UNION(FOR VALVE BODY HOUSING).
