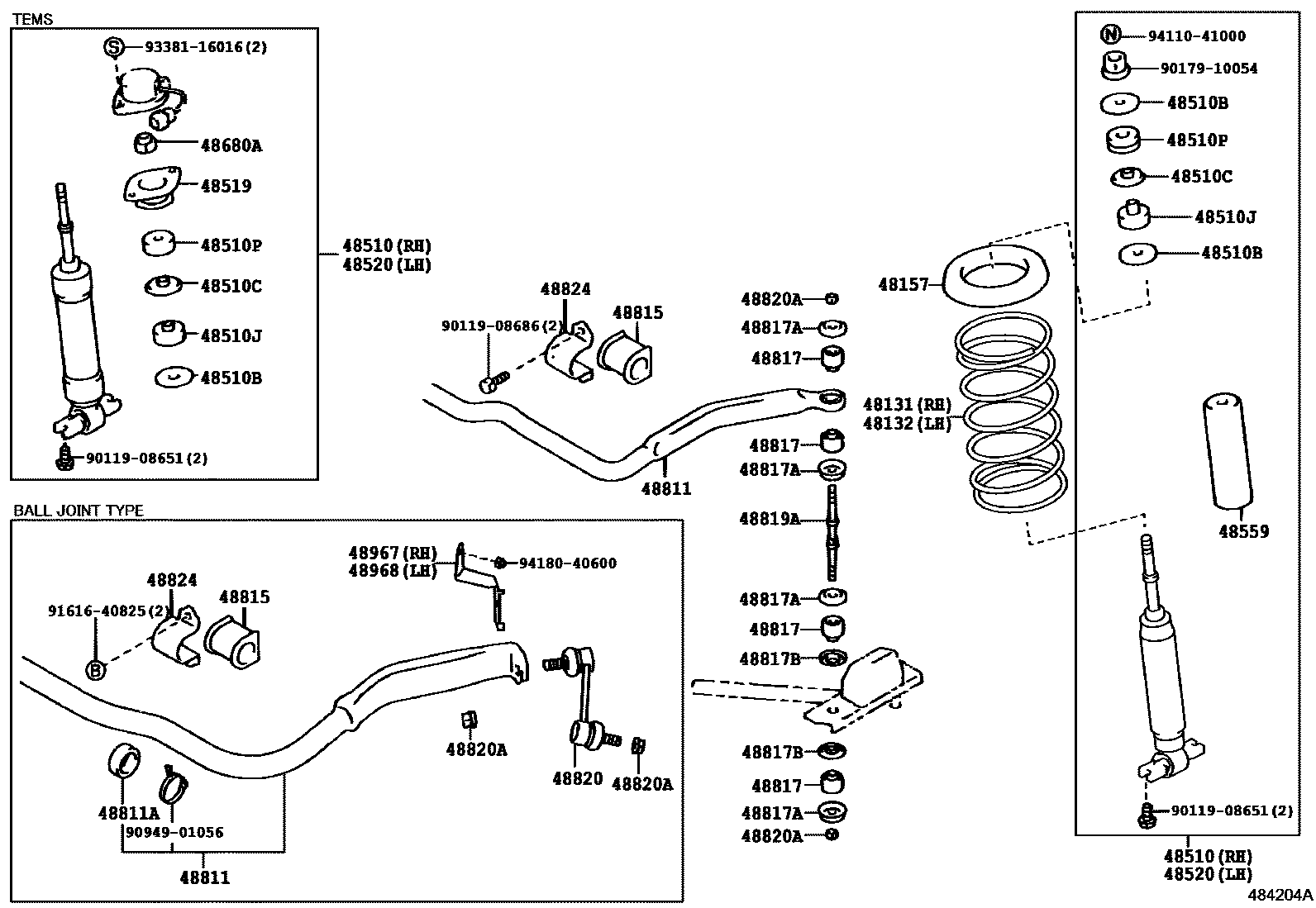

Toyota CROWN — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48131SPRING, FRONT COIL, RH

main48131-30590iYS130198908-199110

main48131-30600iLS130,MS130..DSL,LPG198709-198908

main48131-30610iGS13#..HTWC,TWC198908-199110

main48131-30620iGS131,LS136..DSL,TWC198709-198908

main48131-30640iLS130..4H..STD198908-199110

sub48131-30740

main48131-30650iMS135..ROY198709-199110

sub48131-30750

main48131-30670iGS131,LS130..SPC,TD,TDE198709-198908

main48131-30680iGS130,LS130,136..DSL,TWLPG198908-199110

main48131-30690iGS131,JZS131..(ROY,SSL)..WIB198908-199110

main48131-30700iMS135..SALEX198908-199110

W(TEMS)

sub48131-30540

48132SPRING, FRONT COIL, LH

main48131-30590iGS136198709-198908

main48131-30600iLS130,MS130..DSL,LPG198709-198908

main48131-30610iGS13#..HTWC,TWC198908-199110

main48131-30620iGS131,LS136..DSL,TWC198709-198908

main48131-30640iJZS13#..ROY,SSL;GS130,131,LS130,131..SPC,TD,TDE198908-199110

sub48131-30740

main48131-30650iMS135..ROY198709-199110

sub48131-30750

main48131-30670iGS131,LS130..SPC,TD,TDE198709-198908

main48131-30680iGS130,LS130,136..DSL,TWLPG198908-199110

main48131-30690iGS131,JZS131..(ROY,SSL)..WIB198908-199110

main48131-30700iMS135..SALEX198908-199110

W(TEMS)

sub48131-30540

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-30030×2iGS13#,JZS13#,LS13#,MS130,135,YS130198709-199110

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-39055iGS130,JZS130,LS130..DSL,EFI,HTWC,SPC,TD,TDE,TWC198709-199110

sub48510-39056

main48510-39065iGS136,LS136198709-199110

sub48510-39066

main48510-39085iGS131,LS131;JZS131,MS135..ROY,SSL198709-199110

sub48510-39086

main48510-39095iLS130..4H..STD198709-199110

sub48510-39096

main48510-39105iMS135;GS131..ROY..SPC..NOB198908-198909

main48510-39106iGS131..ROY..SPC;JZS131,MS135..ROY,SSL198909-199110

sub48510-39107

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02072×2iJZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC198709-199110

main90948-02091×2iGS131..ROY..SPC;JZS131,MS135,137,UZS131198709-199110

main90948-02116×2iJZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130198709-199110

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02092×2iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC198709-199110

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01033×2iGS131..ROY..SPC;JZS131,MS135..ROY,SSL198709-199110

main90948-01034×2iMS137,UZS131198709-199110

main90948-01038×2iJZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC198709-199110

48510PCUSHION, FRONT SHOCK ABSORBER, NO.2

main90948-01034×2iGS131..ROY..SPC;JZS131,MS135..ROY,SSL198709-199110

main90948-01037×2iJZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130198709-199110

48519BRACKET, ACTUATOR SUPPORT, FRONT

main48519-30020×2iGS131..ROY..SPC;JZS131,MS135,137,UZS131198709-199110

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-39055iGS130,JZS130,LS130..DSL,EFI,HTWC,SPC,TD,TDE,TWC198709-199110

sub48510-39056

main48510-39065iGS136,LS136198709-199110

sub48510-39066

main48510-39085iGS131,LS131;JZS131,MS135..ROY,SSL198709-199110

sub48510-39086

main48510-39095iLS130..4H..STD198709-199110

sub48510-39096

main48510-39105iMS135;GS131..ROY..SPC..NOB198908-198909

main48510-39106iGS131..ROY..SPC;JZS131,MS135..ROY,SSL198909-199110

sub48510-39107

48559COVER, SHOCK ABSORBER, DUST

main48559-30020×2iGS13#,JZS13#,LS13#,MS130,135,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC198709-199110

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94187-11200×2iGS131..ROY..SPC;JZS131,MS135,137,UZS131198709-199110

sub90177-12002

48811BAR, STABILIZER, FRONT

main48811-30240iLS130..4H..STD198709-198908

main48811-30260iGS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198709-199110

main48811-30270iLS136;LS130..STD198709-198908

main48811-30310iGS131,MS135,137;GS130,LS130..WG..ATM198709-198908

main48811-30320iGS131,MS135..ROY..WIB198908-199110

main48811-30340iJZS13#199008-199110

48811ABUSH(FOR FRONT STABILIZER BAR)

main90385-26002×2iGS136..EFI;GS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198709-199110

main90385-28002×2iLS13#..HT,SED,V198709-198908

main90385-29002×2iGS130,LS130..WG;GS131,MS135,137198709-198908

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30131×2iLS130..4H..STD198709-198908

main48815-30151×2iGS136198709-198908

main48815-30161×2iGS136;LS130..STD198908-199110

main48815-30171×2iLS136;GS130..WG..MTM198908-199110

main48815-30230×2iGS131,MS135..ROY..WIB198908-199110

main48815-30240×2iJZS13#199008-199110

48817CUSHION, FRONT STABILIZER

main48817-30020×8iLS130..4H..STD198709-198908

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032×8iLS130..4H..STD198709-198908

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015×4iLS130..4H..STD198709-198908

48819ABOLT, FRONT STABILIZER

main48819-30020×2iLS130..4H..STD198709-198908

48820LINK ASSY, FRONT STABILIZER

main48810-30030iGS131,136,JZS13#,LS13#,MS13#,UZS131;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC)199106-199110

LH

main48820-30010iGS131,136,JZS13#,LS13#,MS135,137,UZS131198709-199106

main48820-30020iGS131,136,JZS13#,LS13#,MS135,137,UZS131;GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,HTWC,SPC)198709-199106

main48820-30050iGS130..WG199106-199110

RH

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-08034×4iLS130..4H..STD198709-198908

main90179-12047×4iLS130..STD;GS136,LS136;GS130..WG..MTM198709-199110

48824BRACKET, STABILIZER, FRONT

main48824-30061×2iLS130..4H..STD198709-198908

48967END, SENSOR CONNECTING ROD, NO.1

main48967-30011iMS137,UZS131198709-199110

48968END, SENSOR CONNECTING ROD, NO.2

main48968-30011iMS137,UZS131198709-199110

9011908651

main90119-08651

9011908686

main90119-08686

9017910054

main90179-10054

9094901056

main90949-01056

9161640825

main91616-40825

9338116016

main93381-16016

9411041000

main94110-41000

9418040600

main94180-40600

32 parts on this diagram · 3 diagrams in section
