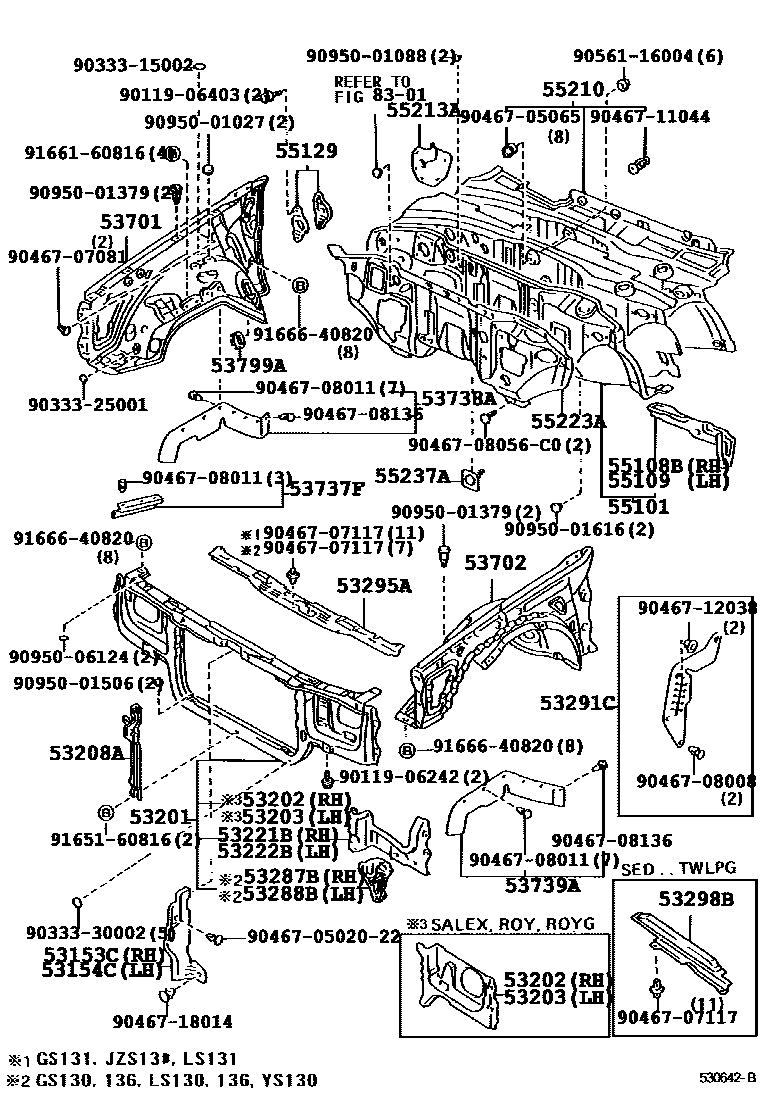

Toyota CROWN — FRONT FENDER APRON & DASH PANEL

53153CGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-30040iGS131,JZS13#,LS130,131..ROY,ROYG,SALEX199110

main53153-30050iGS130..ROY199112-199512

53154CGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-30040iGS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG)199110

53201SUPPORT SUB-ASSY, RADIATOR

main53201-30330iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112

main53201-30350iYS130..DLX,DLXA199112-199512

main53201-30380iGS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX199110

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-30020iGS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX199110

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-30020iGS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX199110

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53209-30120iGS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX199110

main53209-30130iGS130,136,LS130,136..DLX,SDX,STD199110-199112

53221BBRACE, RADIATOR SUPPORT APRON, RH

main53221-30900iGS13#,JZS13#,LS13#,YS130199112

53222BBRACE, RADIATOR SUPPORT APRON, LH

main53222-30900iGS13#,JZS13#,LS13#199110-199112

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-30040iGS136;GS130,LS136..DLX,STD199110-199112

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-30040iGS136;GS130,LS136..DLX,STD199110-199112

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-30040iGS130,136,LS130,136..DLX,SDX,STD199110-199112

main53292-30050iGS130,136,LS130,136..DLX,SDX,STD199110-199112

53295ADEFLECTOR, RADIATOR UPPER AIR

main53293-30040iGS130,JZS13#..4FC..(ROY,ROYG)199110-199512

main53293-30050iLS130..SDX;GS130,136,LS136..DSL,HTWC199110-199308

main53293-30060iGS130,YS130..(DLX,DLXA,SDX,STD)..(LPEFI,TWLPG)199112-199308

main53293-30070iJZS13#..4HC;GS131,JZS130,131,LS130,131..4FC..SALEX199110-199512

53298BPROTECTOR, RADIATOR HOSE, NO.2

main53298-30050iGS130..ROY199112-199308

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-3A010iJZS135199110-199512

main53701-3A011iGS130,JZS130,LS130199609

main53701-3A030iGS13#,JZS130,131,133,LS13#,YS130199112-199512

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-30510iYS130199112-199512

main53702-30620iGS13#,JZS13#,LS13#199110

53737FSEAL, FRONT FENDER TO FRAME, NO.2

main53737-30040×2iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112

53738ASEAL, FRONT FENDER APRON, REAR RH

main53738-30060iGS13#,JZS13#,LS130,131199110

main53738-30070iLS136199110-199112

53739ASEAL, FRONT FENDER APRON, REAR LH

main53739-30040iGS13#,JZS13#,LS130,131199110

main53739-30050iLS136,YS130199112-199512

53799ACOVER, STEERING GEAR BOX SERVICE HOLE

main53799-30030iGS13#,JZS13#,LS13#199110-199112

55101PANEL SUB-ASSY, DASH

main55101-30632iLS136..5F199110-199409

main55101-30642iLS13#..4FC199110

main55101-30752iGS130,131,JZS13#..ATM..(HTWC,TWC)199110

main55101-30762iGS130,136..4H..HTWC199110-199512

main55101-30792iGS130,136..5F199110

main55101-30802iGS130,YS130..ATM..(LPEFI,TWLPG)199112-199512

main55101-30822iGS130,YS130..4H..(LPEFI,TWLPG)199112-199512

main55101-3A060iGS136..SDX199110

55108BBRACE SUB-ASSY, DASH TO FRAME, RH

main55108-30070iGS13#,JZS13#,LS13#199110-199112

55129COVER, DASH PANEL HOLE

main55129-30010iGS130,LS136..DSL,TWLPG199110-199512

55210INSULATOR ASSY, DASH PANEL

main55211-30550iGS13#,JZS130,131199110-199112

main55211-30570iJZS133,135,LS13#199110

55213APAD, DASH PANEL SILENCER

main55213-30260iGS130,136,JZS130,131,YS130..4H,4HC199112

main55213-30270iGS13#,JZS130,131,YS130..4FC,5F199110

main55213-30300iJZS133,135..4HC199110-199512

main55213-30310iJZS133,135,LS13#..4FC,5F199110

55223AINSULATOR, DASH PANEL, OUTER

main55223-30100iGS130..SED..SALEX;GS131,JZS13#,LS13#199110

55237APLATE, DASH PANEL INSULATOR, NO.1

main55237-30010iGS130..SED..SALEX;GS131,JZS13#,LS13#199110

8301

9011906242

main90119-06242

9011906403

main90119-06403

9033315002

main90333-15002

9033325001

main90333-25001

9033330002

main90333-30002

904670502022

main90467-0502022

9046705065

main90467-05065

9046707081

main90467-07081

9046707117

main90467-07117

9046708008

main90467-08008

9046708011

main90467-08011

9046708056C0

main90467-08056C0

9046708136

main90467-08136

9046711044

main90467-11044

9046712038

main90467-12038

9046718014

main90467-18014

9056116004

main90561-16004

9095001027

main90950-01027

9095001088

main90950-01088

9095001379

main90950-01379

9095001506

main90950-01506

9095001616

main90950-01616

9095006124

main90950-06124

9165160816

main91651-60816

9166160816

main91661-60816

9166640820

main91666-40820

53 parts on this diagram · 1 diagram in section
