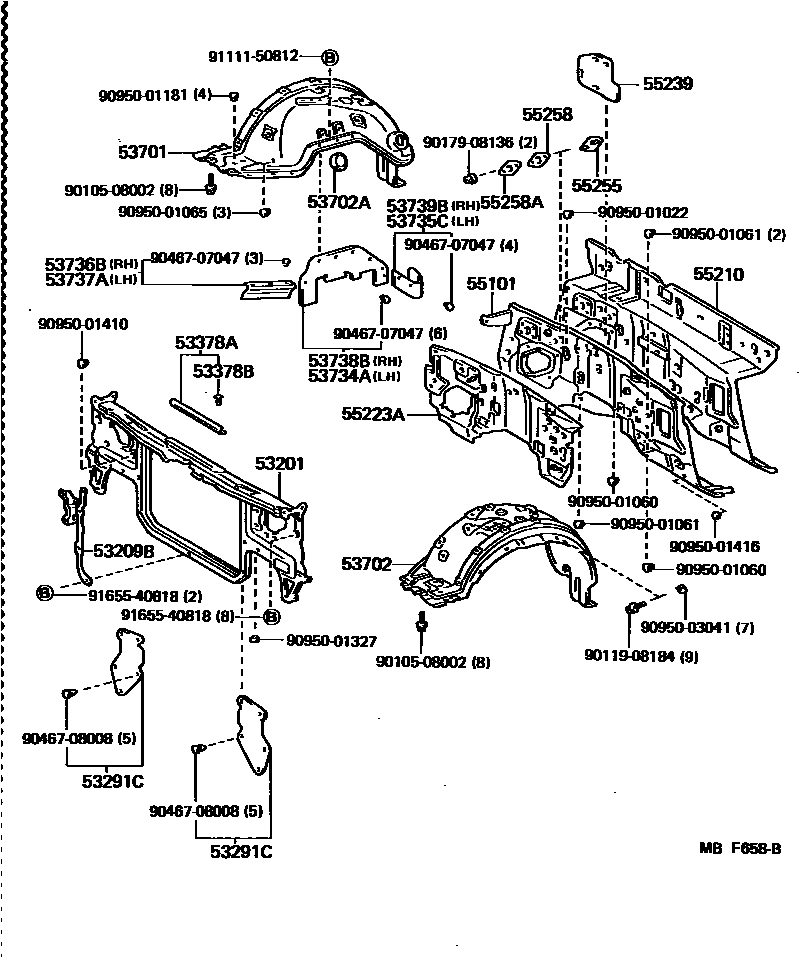

Toyota CROWN — FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-30900iGS120,121,LS120,MS12#..ROY,SAL,SDX,SPE198308-198506

main53201-30901iGS126,LS126;GS120,LS120,YS120..STD198308-198509

main53201-30902iGS120,LS120,MS120,YS120..DLX198308-198506

main53201-30903iGS120,121,LS120,MS12#..ROY,SAL,SDX,SPE198506-198509

main53201-30904iGS120,LS120,MS120,YS120..DLX198506-198509

main53201-30905iGS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL198509-198511

main53201-30906iGS126,LS126;GS120,LS120,YS120..STD198509-198708

main53201-30907iGS120,LS120,MS120,YS120..DLX198509-198511

main53201-30908iGS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL198511-198708

main53201-30909iGS120,LS120,MS120,YS120..DLX198511-198708

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-30060iGS12#,LS12#,MS12#,YS120198308-198509

sub53209-30070

main53209-30061iGS12#,LS12#,MS12#,YS120198509-198609

main53209-30071iGS12#,LS12#,MS12#,YS120198609-198708

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-30030iGS12#,LS12#,MS12#,YS120198308-198708

RH

main53292-30030iGS12#,LS12#,MS12#,YS120198308-198708

LH

53378ASEAL, HOOD AIR INTAKE DUCT

main53378-30020iGS12#,LS12#,MS12#198308-198708

53378BCLIP(FOR HOOD AIR INTAKE DUCT SEAL)

main90467-08008×3iGS12#,LS12#,MS12#198308-198708

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-30530iGS120,126198308-198708

main53701-30580iLS12#198308-198708

main53701-30590iMS120..SAL198308-198509

W/AUTO DRIVE

main53701-30640iMS12#,YS120198308-198412

main53701-30660iMS123,125198308-198412

W/ESC

main53701-30670iGS121198308-198708

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-30410iMS120..TBO198308-198509

main53702-30430iMS120,YS120..LPG198308-198708

main53702-30440iLS12#198308-198708

main53702-30450iGS12#,MS123,125198308-198708

53702ACOVER, FRONT FENDER APRON(FOR SERVICE HOLE)

main53799-30021iGS12#,LS12#,MS12#,YS120198308-198708

53734ASEAL, FRONT FENDER APRON TO FRAME, NO.2 LH

main53734-30030iGS12#,LS12#,MS12#,YS120198308-198708

53735CSEAL, FRONT FENDER APRON TO FRAME, NO.3 LH

main53735-30030iGS12#,LS12#,MS12#,YS120198308-198708

53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH

main53736-30030iGS12#,LS12#,MS12#,YS120198308-198708

53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH

main53736-30030iGS12#,LS12#,MS12#,YS120198308-198708

53738BSEAL, FRONT FENDER APRON TO FRAME, NO.2 RH

main53738-30050iGS12#,LS12#,MS12#,YS120198308-198708

53739BSEAL, FRONT FENDER APRON TO FRAME, NO.3 RH

main53739-30030iGS12#,LS12#,MS12#,YS120198308-198708

55101PANEL SUB-ASSY, DASH

main55101-30560iGS120,121,MS12#..ATM..(ROY,SAL,SSL)198308-198708

W/AUTO DRIVE

main55101-30570iGS120,121..5F..(ROY,SAL,SSL)198308-198708

W/AUTO DRIVE

main55101-30650iLS120..SAL..TD198308-198509

W/AUTO DRIVE

main55101-30660iLS12#..4FC198308-198708

main55101-30670iLS12#..MTM198308-198708

main55101-30680iLS120..SAL..TDE198308-198708

W/AUTO DRIVE

main55101-30690iMS120,YS120..MTM198308-198708

main55101-30710iGS120,121,MS12#..ATM198308-198412

main55101-30720iGS12#..MTM198308-198708

55210INSULATOR ASSY, DASH PANEL

main55211-30390iGS121,MS123,125..ROY198308-198509

main55211-30400iGS120,126,LS12#,MS120,YS120198509-198708

main55211-30430iGS121,MS125198509-198708

55223AINSULATOR, DASH PANEL, OUTER

main55223-30050iGS121,LS12#198308-198509

main55223-30051iGS121,LS12#,MS125198509-198708

55239SILENCER, STEERING COLUMN HOLE COVER

main55213-30190iGS12#,LS12#,MS12#,YS120..4H,4HC198308-198509

main55213-30200iGS12#,LS12#,MS12#,YS120..4FC,5F198308-198509

main55213-30230iGS121,MS125..4HC198509-198708

main55213-30241iGS121,MS125..4FC198509-198708

main55213-30250iGS120,126,LS12#,MS120,YS120..4FC,5F198509-198708

55255COVER, CLUTCH MASTER CYLINDER HOLE

main55255-30040iLS126..4FC198308-198509

55258SEAL, CLUTCH MASTER CYLINDER HOLE

main55258-30020iGS120,LS12#..(V,WG)..ATM198308-198509

55258APLATE, CLUTCH MASTER CYLINDER HOLE SEAL

main46151-30010iGS120,LS12#..(V,WG)..ATM198308-198509

9010508002

main90105-08002

9011908184

main90119-08184

9017908136

main90179-08136

9046707047

main90467-07047

9046708008

main90467-08008

9095001022

main90950-01022

9095001060

main90950-01060

9095001061

main90950-01061

9095001065

main90950-01065

9095001181

main90950-01181

9095001327

main90950-01327

9095001410

main90950-01410

9095001416

main90950-01416

9095003041

main90950-03041

9111150812

main91111-50812

9165540818

main91655-40818

37 parts on this diagram · 1 diagram in section
