Toyota CROWN — FRONT DOOR WINDOW REGULATOR & HINGE

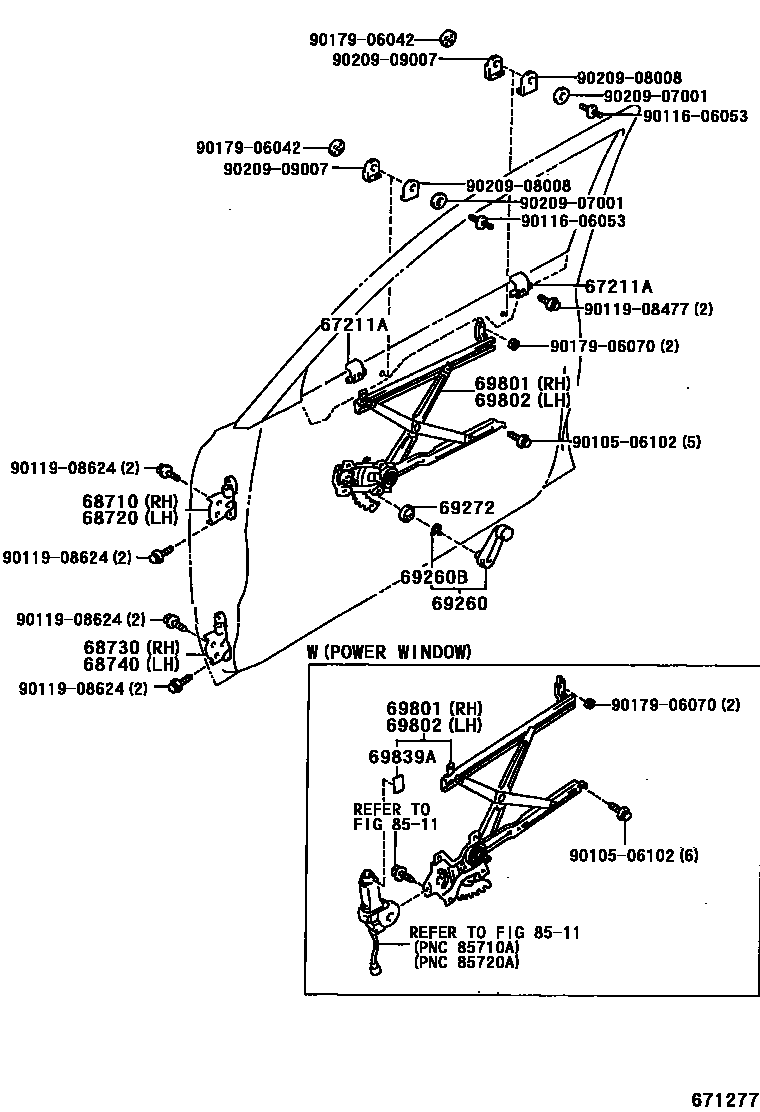

Parts diagram

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-30090×2i199110-199112

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-30090i199110

main68710-30120i199110-199112

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-30030i199110-199112

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-30080i199112-199512

main68730-30090i199110-199112

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-30050i199110-199112

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-E1×2i199110-199512

QUARTZ,TRIM4#

main69260-22030-W3×2i199110-199112

DK.BLUE,TRIM8#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2i199110-199112

main90520-01274×2i199512

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2i199110-199112

NATURAL WHITE,TRIM8#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30171i199110

main69810-30251i199110-199112

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30171i199110

main69820-30231i199110-199112

69839APAD, FRONT DOOR WINDOW REGULATOR

main69839-95800i199112-199512

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506102

main90105-06102

9011606053

main90116-06053

9011908477

main90119-08477

9011908624

main90119-08624

9017906042

main90179-06042

9017906070

main90179-06070

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

21 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota CROWN

This section contains 21 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota CROWN. Key components include: STOP, FRONT DOOR WINDOW, UPPER, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
