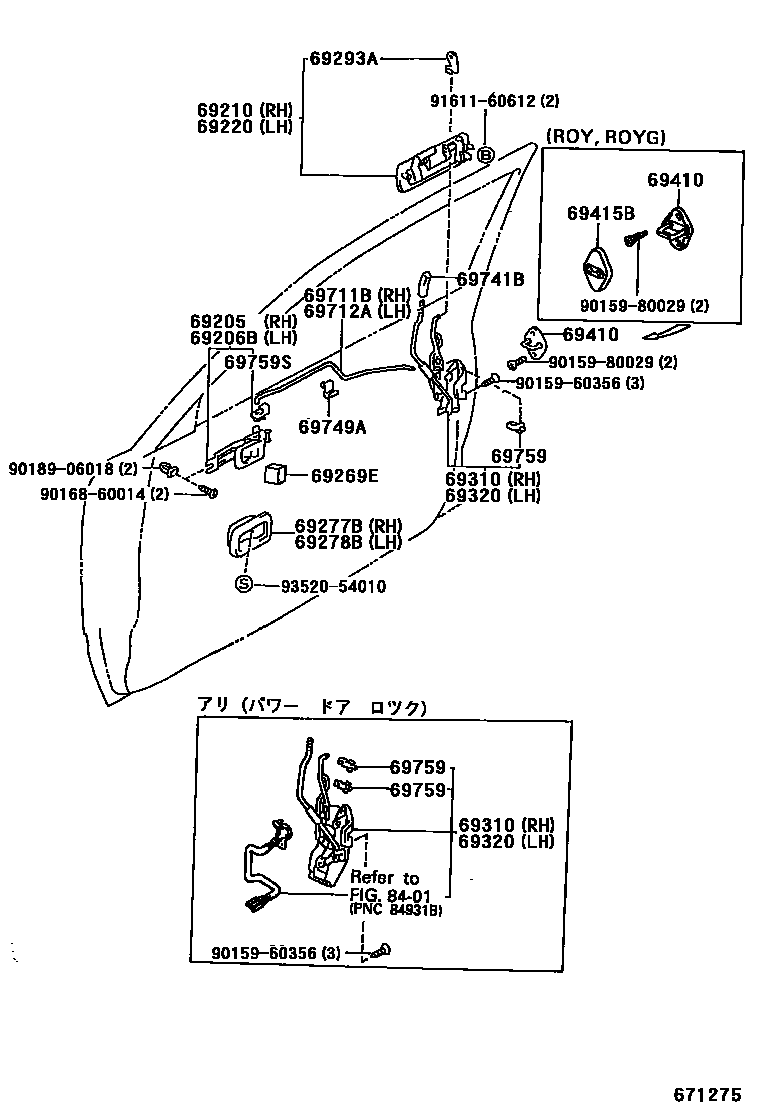

Toyota CROWN — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69269ESEAL, FRONT DOOR INSIDE HANDLE
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
SHADOW GRAY,TRIM1#
main69277-30060-E0iGS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512
QUARTZ,TRIM4#
DK.BLUE,TRIM8#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
SHADOW GRAY,TRIM1#
QUARTZ,TRIM4#
DK.BLUE,TRIM8#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69741BKNOB, FRONT DOOR LOCK CONTROL
SHADOW GRAY,TRIM1#
main69741-30030-E0×2iGS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512
QUARTZ,TRIM4#
DK.BLUE,TRIM8#
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
69759SSNAP, FRONT DOOR INSIDE HANDLE
NATURAL
9015960356
main90159-60356
9015980029
main90159-80029
9016860014
main90168-60014
9018906018
main90189-06018
9161160612
main91611-60612
9352054010
main93520-54010
24 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota CROWN
This section contains 24 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CROWN. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, HANDLE ASSY, FRONT DOOR OUTSIDE, LH, SEAL, FRONT DOOR INSIDE HANDLE.
