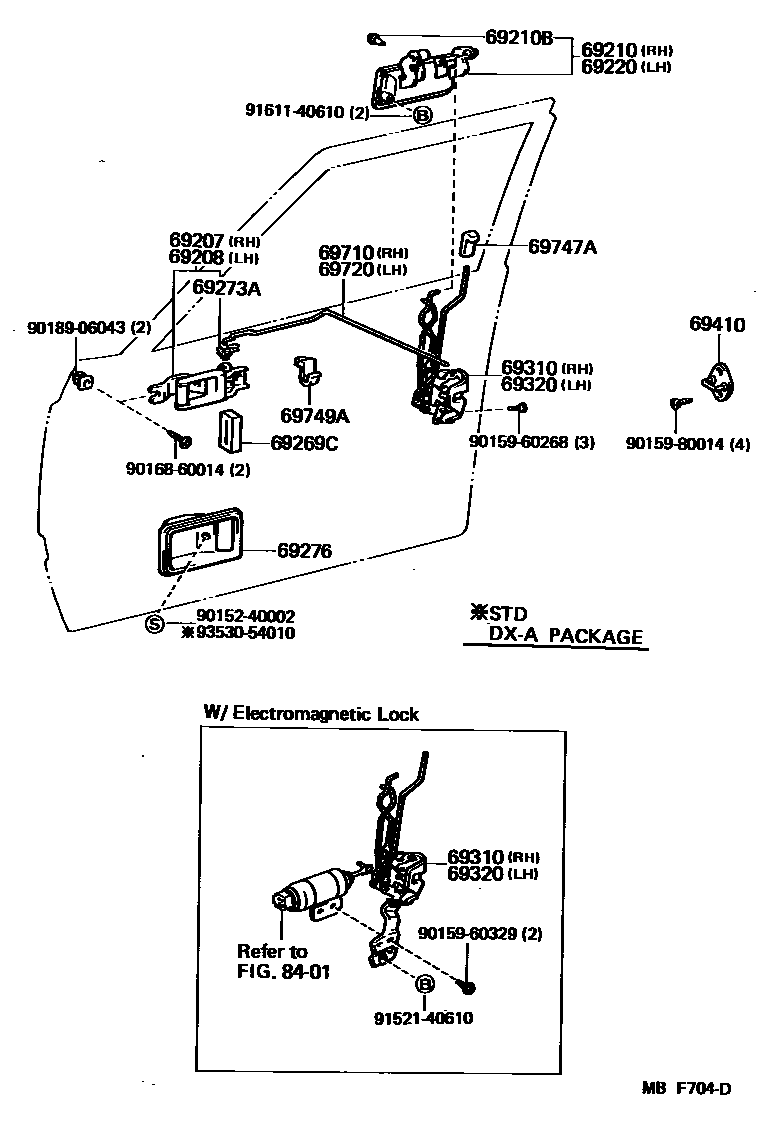

Toyota CROWN — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
COLD SPEC
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
RH
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
THE 30TH LIMITED
DX-A PACKAGE,BLUE,BLUE,TRIM8#
DX-A PACKAGE,BLUE,BLUE,TRIM8#
69310LOCK ASSY, FRONT DOOR, RH
main69310-30560iLS120..DLX,SDX;GS120,LS120..WG..(EFI,TDE);GS120,MS120,YS120..SED..(DLX,SDX)198509-198708
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
main69741-30030-05×2iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198509
BEIGE,BEIGE,TRIM4#
main69741-30030-06×2iGS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL); GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX)198509-198708
BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
8401SWITCH & RELAY & COMPUTER
9015240002
main90152-40002
9015960268
main90159-60268
9015960329
main90159-60329
9015980014
main90159-80014
9016860014
main90168-60014
9018906043
main90189-06043
9152140610
main91521-40610
9161140610
main91611-40610
9353054010
main93530-54010
25 parts on this diagram · 2 diagrams in section
FRONT DOOR LOCK & HANDLE for Toyota CROWN
This section contains 25 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CROWN. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE), HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
