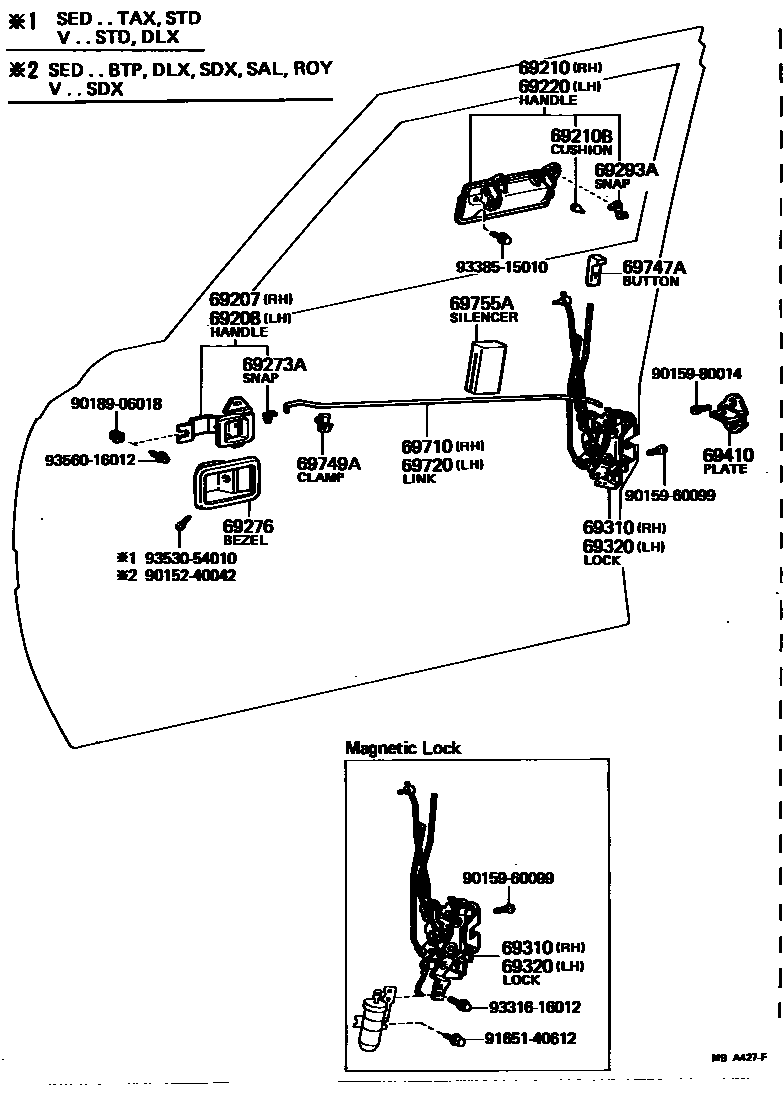

Toyota CROWN — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
W/LAMP SWITCH
W/LAMP SWITCH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
RH
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GREIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
main69277-30030×2iGS110,LS110,111,MS110,112,RS110..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..4D; GS110,MS110,112..2D; GS117,MS117..SDX197909-198307
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
LH
RH
69310LOCK ASSY, FRONT DOOR, RH
TAXI SPEC
69320LOCK ASSY, FRONT DOOR, LH
TAXI SPEC
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GREIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69755ASILENCER, FRONT DOOR LOCK LINK
9015240042
main90152-40042
9015960099
main90159-60099
9015980014
main90159-80014
9018906018
main90189-06018
9165140612
main91651-40612
9331616012
main93316-16012
9338515010
main93385-15010
9353054010
main93530-54010
9356016012
main93560-16012
25 parts on this diagram · 3 diagrams in section
FRONT DOOR LOCK & HANDLE for Toyota CROWN
This section contains 32 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CROWN. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE), HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
