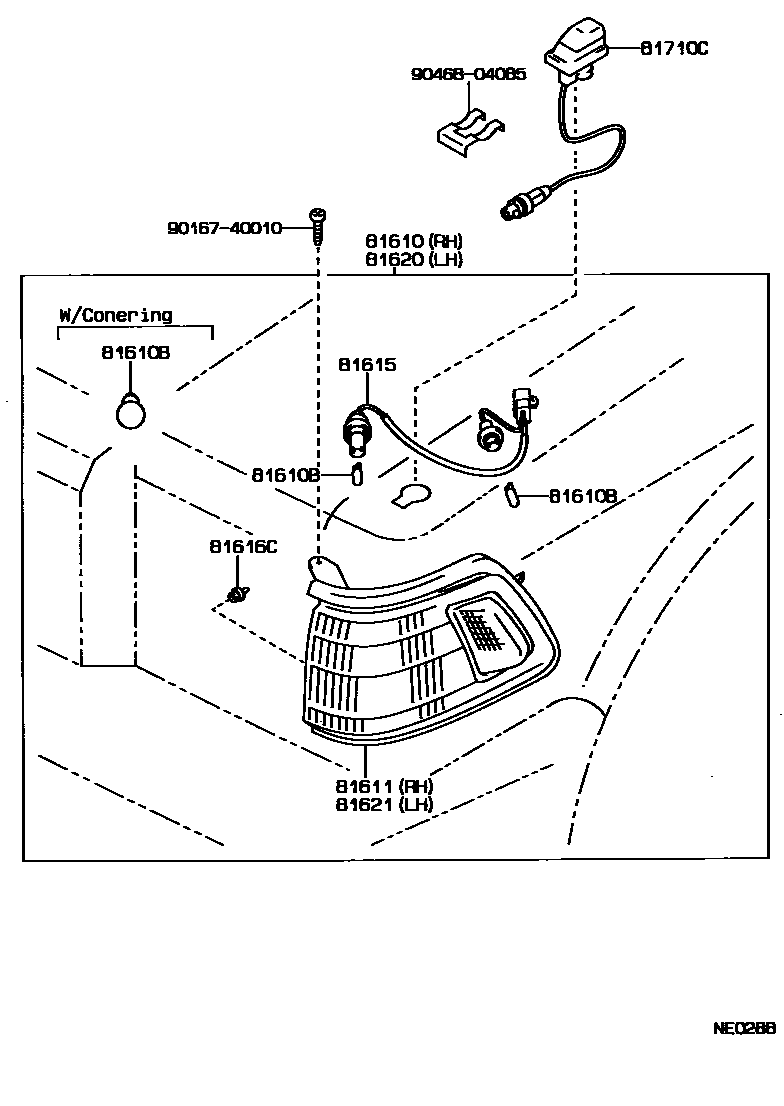

Toyota CROWN — FRONT CLEARANCE LAMP
81610LAMP ASSY, PARKING & CLEARANCE, RH
main81610-30251iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)198908-199110
81610BBULB(FOR PARKING & CLEARANCE LAMP)
main90981-13036×2iGS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110
main99132-12050×2iGS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL; GS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110
81611LENS, PARKING & CLEARANCE LAMP, RH
main81611-30251iGS136..SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130..(SED,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)198908-199110
81615SOCKET AND WIRE, CLEARANCE LAMP
main81615-30250×2iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)198709-199110
81616CBUSHING, CLEARNCE LAMP
81620LAMP ASSY, PARKING & CLEARANCE, LH
main81620-30251iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)198908-199110
81621LENS, PARKING & CLEARANCE LAMP, LH
main81621-30251iGS136..SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130..(SED,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)198908-199110
81710CMARKER ASSY, FENDER
9016740010
main90167-40010
9046804085
main90468-04085
10 parts on this diagram · 2 diagrams in section
FRONT CLEARANCE LAMP for Toyota CROWN
This section contains 10 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CROWN. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, BUSHING, CLEARNCE LAMP.
