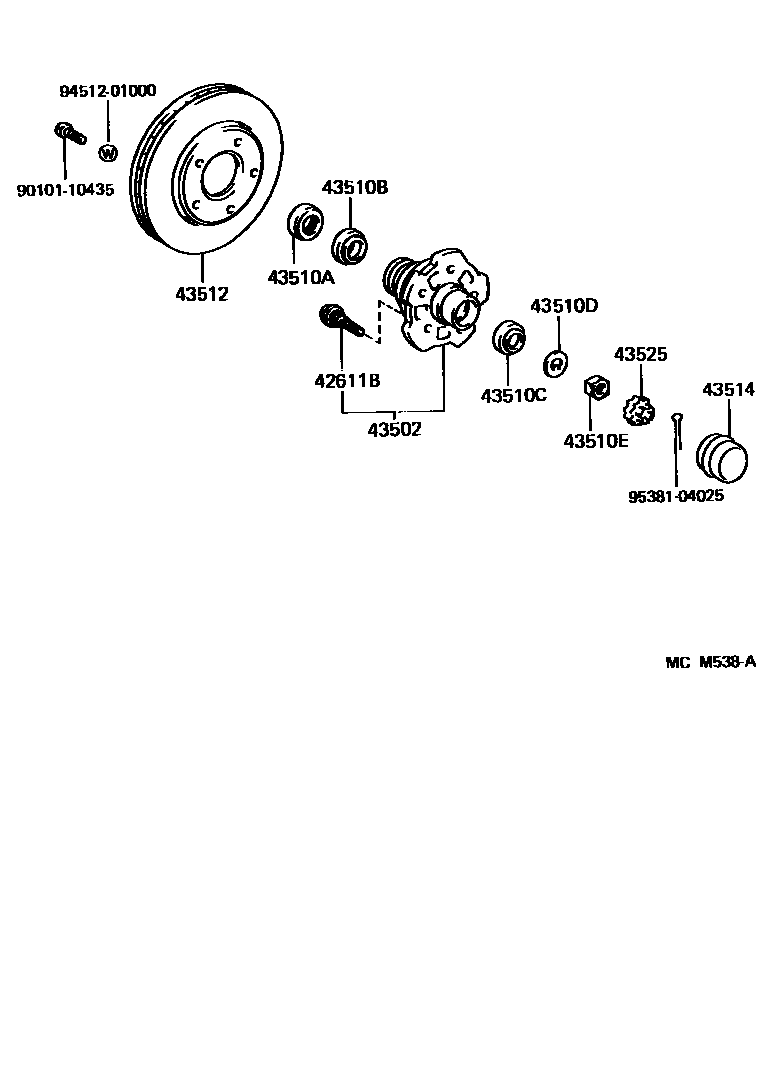

Toyota CROWN — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02048×10i199110-199112

43502HUB SUB-ASSY, FRONT AXLE

main43502-30090×2i199110-199308

main43502-30100×2i199110-199308

main43502-30110×2i199110-199512

main43503-30030×2i199110-199509

main43503-30040×2i199508-199512

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001×2i199112

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34083×2i199110-199112

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21082×2i199110-199112

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005×2i199110-199112

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2i199110-199112

43512DISC, FRONT

main43512-30220×2i199210

main43512-30260×2i199110-199210

main43512-30270×2i199110-199112

43514CAP, FRONT HUB GREASE

main43514-22020×2i199110-199112

main43514-30040×2i199402

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2i199110-199112

9010110435

main90101-10435

9451201000

main94512-01000

9538104025

main95381-04025

13 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CROWN

This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CROWN. Key components include: BOLT, HUB (FOR FRONT AXLE), HUB SUB-ASSY, FRONT AXLE, SEAL, OIL (FOR FRONT AXLE HUB), BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING), BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING).
