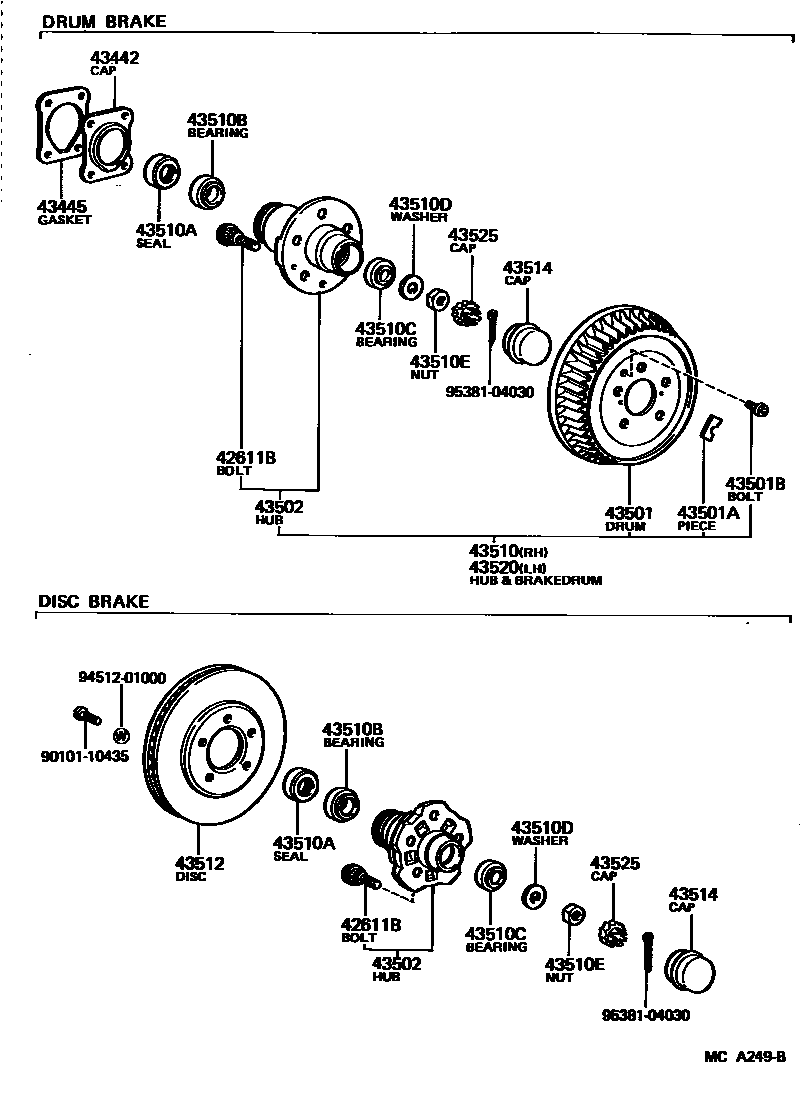

Toyota CROWN — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02048×10i198308-198708

FR DISC BRAKE

main90942-02049×10i198308-198708

FR DRUM BRAKE

43442CAP, KNUCKLE GREASE RETAINER, INNER

main43442-30031×4i198308-198708

43445GASKET, KNUCKLE GREASE RETAINER CAP

main43445-30021×4i198308-198708

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-30060×2i198308-198708

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100i198308-198708

main90937-01117i198308-198708

main90937-01118i198308-198708

main90937-01119i198308-198708

main90937-01146i198308-198708

main90937-01178i198308-198708

main90937-01179i198308-198708

main90937-01180i198308-198708

main90937-01181i198308-198708

main90937-01182i198308-198708

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007×2i198308-198708

43502HUB SUB-ASSY, FRONT AXLE

main43502-30010×2i198308-198708

FR DRUM BRAKE

main43502-30020×2i198308-198708

W/ESC

main43502-30030×2i198308-198708

FR DISC BRAKE

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-30120i198308-198708

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001×2i198308-198708

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34083×2i198308-198708

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21082×2i198308-198708

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005×2i198308-198708

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2i198308-198708

43512DISC, FRONT

main43512-30110×2i198308-198312

40FIN

main43512-30111×2i198312-198606

33FIN

main43512-30112×2i198606-198708

43514CAP, FRONT HUB GREASE

main43514-22020×2i198308-198708

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-30120i198308-198708

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2i198308-198708

9010110435

main90101-10435

9451201000

main94512-01000

9538104030

main95381-04030

20 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CROWN

This section contains 20 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CROWN. Key components include: BOLT, HUB (FOR FRONT AXLE), CAP, KNUCKLE GREASE RETAINER, INNER, GASKET, KNUCKLE GREASE RETAINER CAP, DRUM SUB-ASSY, FRONT BRAKE, PIECE, BALANCE (FOR FRONT BRAKE DRUM).
