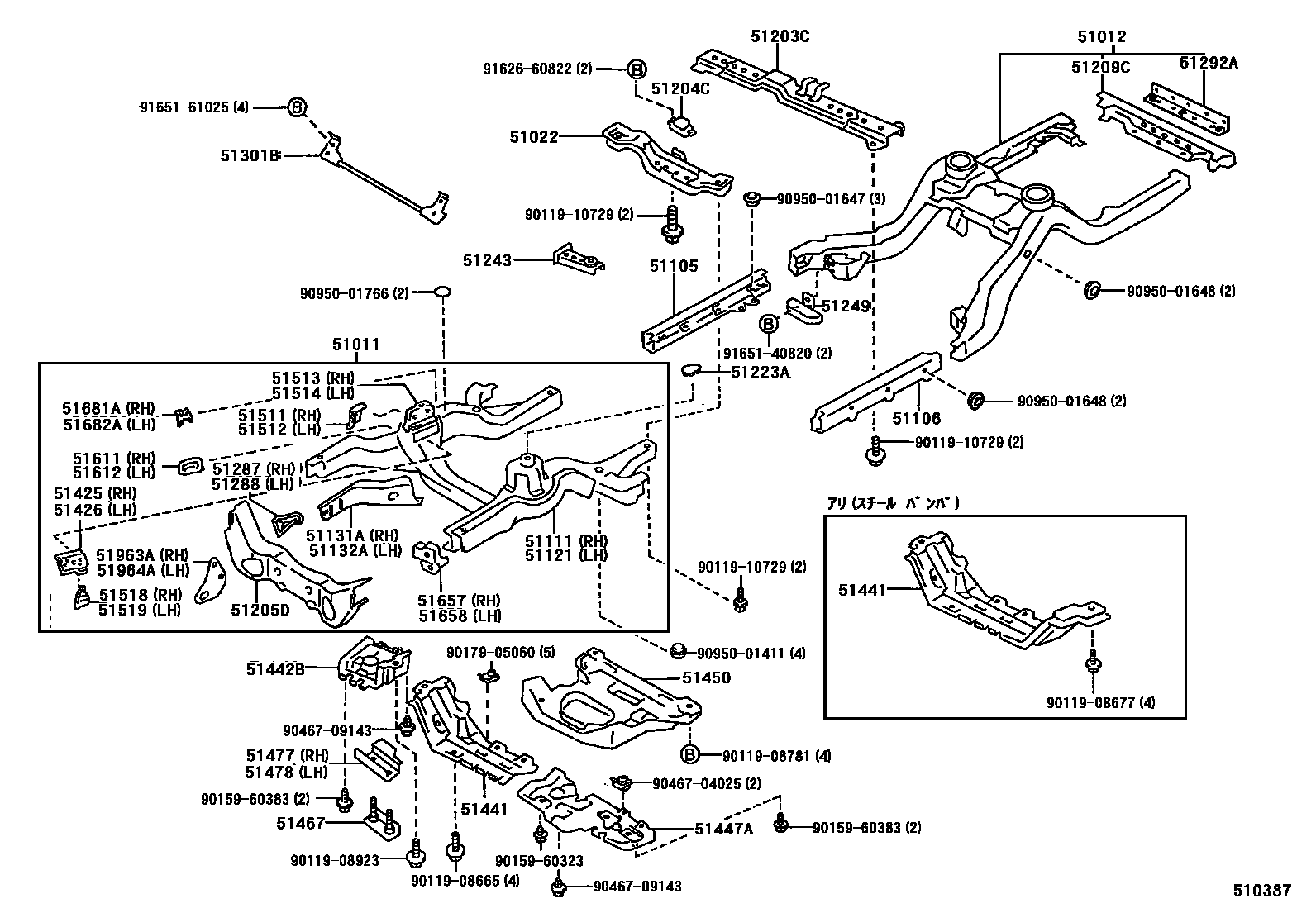

Toyota CROWN — FRAME
51011RAIL SUB-ASSY, FRONT FRAME
51012RAIL SUB-ASSY, REAR FRAME
51022MEMBER SUB-ASSY, ENGINE REAR SUPPORT
51105RAIL SUB-ASSY, CENTER FRAME, RH
51106RAIL SUB-ASSY, CENTER FRAME, LH
51111RAIL, FRONT FRAME, NO.1 RH
51121RAIL, FRONT FRAME, NO.1 LH
51131ARAIL, FRONT FRAME, NO.5 RH
51132ARAIL, FRONT FRAME, NO.5 LH
51203CCROSSMEMBER SUB-ASSY, CENTER BEARING SUPPORT
51204CDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER
51205DSUPPORT SUB-ASSY, STRUT BAR
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51223ACOVER, ENGINE MOUNTING HOLE
51243MEMBER, ANTI SHAKE
51249DAMPER, REAR SUSPENSION MEMBER
51287GUSSET, STRUT BAR BRACKET, LOWER RH
51288GUSSET, STRUT BAR BRACKET, LOWER LH
51292AEXTENSION, FRAME REAR CROSSMEMBER
51301BROD SUB-ASSY, FRONT FRAME
51425BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT RH
51426BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT LH
51441COVER, ENGINE UNDER, NO.1
51442BCOVER, AIR TANK, RH
51447ACOVER, AIR TANK, LH
51450COVER ASSY, ENGINE UNDER, REAR
51467RETAINER, ENGINE UNDER COVER
51477PLATE, ENGINE SIDE UNDER COVER, UPPER RH
51478PLATE, ENGINE SIDE UNDER COVER, UPPER LH
51511GUSSET, UPPER CONTROL ARM SUPPORT, RH
51512GUSSET, UPPER CONTROL ARM SUPPORT, LH
51513SUPPORT, UPPER CONTROL ARM, RH
51514SUPPORT, UPPER CONTROL ARM, LH
51518BRACKET, LOWER ARM, RH
51519BRACKET, LOWER ARM, LH
51611STOPPER, FRONT SUSPENSION BOUND, RH
51612STOPPER, FRONT SUSPENSION BOUND, LH
51657BRACKET, FRONT BUMPER ARM, RH
51658BRACKET, FRONT BUMPER ARM, LH
51681ABRACKET, FLEXIBLE HOSE
51682APLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
51963AHOOK, TRANSPORT, FRONT RH
51964AHOOK, TRANSPORT, FRONT LH
9011908665
main90119-08665
9011908677
main90119-08677
9011908781
main90119-08781
9011908923
main90119-08923
9011910729
main90119-10729
9015960323
main90159-60323
9015960383
main90159-60383
9017905060
main90179-05060
9046704025
main90467-04025
9046709143
main90467-09143
9095001411
main90950-01411
9095001647
main90950-01647
9095001648
main90950-01648
9095001766
main90950-01766
9162660822
main91626-60822
9165140820
main91651-40820
9165161025
main91651-61025
60 parts on this diagram · 3 diagrams in section
FRAME for Toyota CROWN
This section contains 96 genuine Toyota parts for the FRAME system of the Toyota CROWN. Key components include: RAIL SUB-ASSY, FRONT FRAME, RAIL SUB-ASSY, REAR FRAME, MEMBER SUB-ASSY, ENGINE REAR SUPPORT, RAIL SUB-ASSY, CENTER FRAME, RH, RAIL SUB-ASSY, CENTER FRAME, LH.
