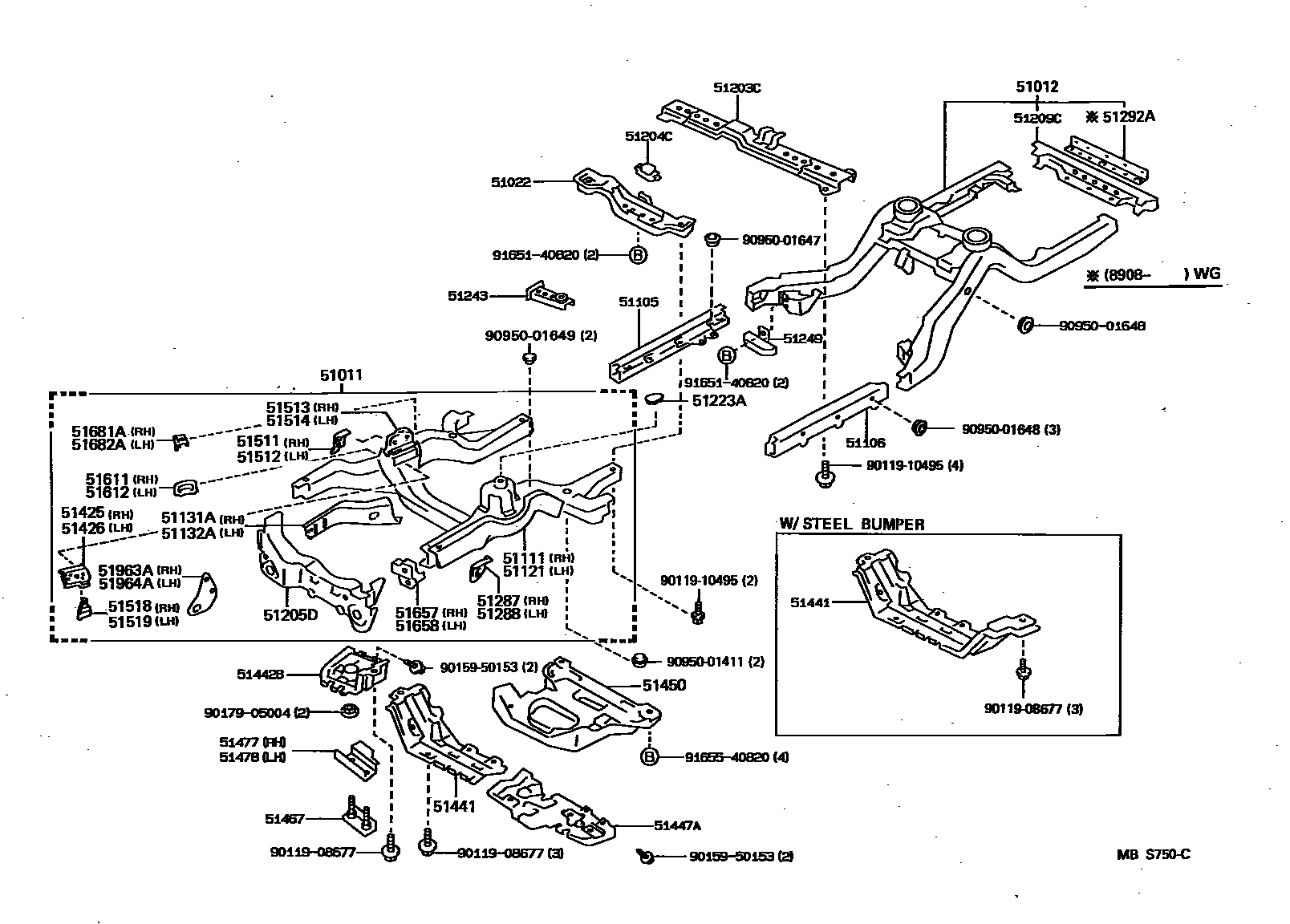

Toyota CROWN — FRAME

0001 1 0002 1 0003 1

51011RAIL SUB-ASSY, FRONT FRAME

main51011-30360iUZS131198908-199110

sub51011-30361

sub52203-30060

sub52204-30040

sub90119-10694

sub91616-61022

main51011-30370iMS137198709-198810

sub48660-30060

sub48670-30070

sub48674-30060

sub48674-30070

sub90179-18012

sub90387-18013

sub90948-02071

main51011-30371iMS137198810-199110

sub51011-30372

sub52203-30060

sub52204-30040

sub90119-10694

sub91616-61022

main51011-30380iJZS131,MS135;GS131..EFI,HTWC198709-199110

sub51011-30381

sub52203-30060

sub52204-30040

sub90119-10694

sub91616-61022

main51011-30390iGS130,131..SPC,TWC,TWLPG198709-199110

sub51011-30391

sub52203-30060

sub52204-30040

sub90119-10694

sub91616-61022

main51011-30400iLS13#198709-199110

sub51011-30401

sub52203-30060

sub52204-30040

sub90119-10694

sub91616-61022

main51011-30410iYS130198709-199110

sub51011-30411

sub52203-30060

sub52204-30040

sub90119-10694

sub91616-61022

main51011-30420iGS130,136,JZS130,MS130..EFI,HTWC,LPG,TWC198709-199110

sub51011-30421

sub52203-30060

sub52204-30040

sub90119-10694

sub91616-61022

51012RAIL SUB-ASSY, REAR FRAME

main51012-30310iMS137198709-199110

main51012-30320iGS131,JZS131,LS131,MS135198709-199110

sub51012-30370

main51012-30330iGS130,LS130,MS130,YS130..HT,SED198709-199110

main51012-30340iUZS131198908-199110

sub51012-30360

main51012-91705iGS136,LS136198709-199110

main51012-91706iGS130,JZS130,LS130..WG198709-199110

51022MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main51022-30060iUZS131;GS13#,LS130,131..5F..(EFI,HTWC,TD,TWC)198709-199110

main51022-30070iGS130,131,JZS13#,LS130,131,MS13#..ATM198709-199110

main51022-30080iLS130,136,YS130..4H198709-199110

main51022-30090iLS130,136,YS130..5F..(DSL,LPEFI,LPG)198709-199110

main51022-30100iLS136,YS130..ATM198709-199110

main57255-30010iGS130,136,MS130..4H198709-199110

51105RAIL SUB-ASSY, CENTER FRAME, RH

main51105-30060iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51106RAIL SUB-ASSY, CENTER FRAME, LH

main51106-30060iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51111RAIL, FRONT FRAME, NO.1 RH

main51111-30080iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199012

main51111-30081iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130199012-199105

main51111-30100iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130199105-199110

sub51111-30101

51121RAIL, FRONT FRAME, NO.1 LH

main51121-30080iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199012

main51121-30081iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130199012-199105

main51121-30100iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130199105-199110

sub51121-30101

51131ARAIL, FRONT FRAME, NO.5 RH

main51131-30040iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

sub51131-30041

51132ARAIL, FRONT FRAME, NO.5 LH

main51132-30040iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

sub51132-30041

51203CCROSSMEMBER SUB-ASSY, CENTER BEARING SUPPORT

main51203-30090iYS130..4HC,5F;YS130..4H..DLX;GS130,136,JZS130,LS130,136,MS130198709-199110

main51240-30010iGS131,JZS131,LS131,MS135,137,UZS131198709-199105

main51240-30011iGS131,JZS131,LS131,MS13#,UZS131199105-199110

51204CDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-30070iLS13#198709-199110

51205DSUPPORT SUB-ASSY, STRUT BAR

main51205-30070iMS137198709-198810

main51205-30080iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

sub51205-30900

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51207-30070iUZS131198908-199110

sub51207-30071

main51209-30020iGS136,LS136198709-199110

main51291-30100iGS130,131,LS130,MS13#,YS130..HT,SED198709-198908

sub51291-30101

main51291-30900iGS130,LS130..WG198709-198908

51223ACOVER, ENGINE MOUNTING HOLE

main51223-30010×2iLS130,136,YS130199005-199110

51243MEMBER, ANTI SHAKE

main51243-30030×2iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51249DAMPER, REAR SUSPENSION MEMBER

main51249-91701×2iGS130,JZS130,LS130..WG198709-199110

51287GUSSET, STRUT BAR BRACKET, LOWER RH

main51287-30060iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51288GUSSET, STRUT BAR BRACKET, LOWER LH

main51288-30040iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51292AEXTENSION, FRAME REAR CROSSMEMBER

main51292-30020iGS130,JZS130,LS130..WG198908-199110

51425BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT RH

main51401-30090iGS130,131..(HT,SED)..(SPC,TWC,TWLPG)198709-199110

main51401-30100iYS130198709-199110

main51425-30140iJZS131,MS135;GS130,131,MS130,137..(HT,SED)..(DLX,ROYG,SAL,SALEX,SDX,SPE,SSL,STD)..(EFI,HTWC,LPG,TWC)198709-199110

main51425-30150iUZS131198908-199110

main51425-30180iLS130,131..HT,SED198709-199110

51426BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT LH

main51402-30090iGS130,131..(HT,SED)..(SPC,TWC,TWLPG)198709-199110

main51402-30100iYS130198709-199110

main51426-30140iJZS131,MS135;GS130,131,MS130,137..(HT,SED)..(DLX,ROYG,SAL,SALEX,SDX,SPE,SSL,STD)..(EFI,HTWC,LPG,TWC)198709-199110

main51426-30150iUZS131198908-199110

main51426-30180iLS130,131..HT,SED198709-199110

51441COVER, ENGINE UNDER, NO.1

main51441-30090iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

main51441-30100iGS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

51442BCOVER, AIR TANK, RH

main51442-30030iYS130..DLX..LPEFI;GS130,131,LS130,131,MS130..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB198709-199110

main51442-30040iMS135,137198709-198908

main51442-30050iGS131,JZS131,MS13#,UZS131..WIB198908-199110

51447ACOVER, AIR TANK, LH

main51447-30010iYS130..DLX..LPEFI;GS130,131,LS130,131,MS130..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB198709-199110

main51447-30020iMS135,137198709-198908

main51447-30030iGS131,JZS131,MS13#,UZS131..WIB198908-199110

51450COVER ASSY, ENGINE UNDER, REAR

main51450-30010iLS130,131198709-199110

main51450-30020iLS136198709-199110

51467RETAINER, ENGINE UNDER COVER

main51467-30010×2iYS130..DLX198908-199110

51477PLATE, ENGINE SIDE UNDER COVER, UPPER RH

main51477-30020iMS137..NOB;GS130,131,LS130,MS130,135..ROY,SAL,SALEX,SDX,SPE,SSL198709-198908

51478PLATE, ENGINE SIDE UNDER COVER, UPPER LH

main51478-30030iMS137..NOB;GS130,131,LS130,MS130,135..ROY,SAL,SALEX,SDX,SPE,SSL198709-198908

51511GUSSET, UPPER CONTROL ARM SUPPORT, RH

main51511-30030iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51512GUSSET, UPPER CONTROL ARM SUPPORT, LH

main51512-30030iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51513SUPPORT, UPPER CONTROL ARM, RH

main51513-30070iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51514SUPPORT, UPPER CONTROL ARM, LH

main51514-30060iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51518BRACKET, LOWER ARM, RH

main51518-30040iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51519BRACKET, LOWER ARM, LH

main51519-30040iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51611STOPPER, FRONT SUSPENSION BOUND, RH

main51611-30050iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51612STOPPER, FRONT SUSPENSION BOUND, LH

main51612-30030iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51657BRACKET, FRONT BUMPER ARM, RH

main51657-30010iGS13#,LS13#,MS13#,YS130198709-198907

main51657-30011iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198907-199110

51658BRACKET, FRONT BUMPER ARM, LH

main51658-30010iGS13#,LS13#,MS13#,YS130198709-198907

main51658-30011iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198907-199110

51681ABRACKET, FLEXIBLE HOSE

main51681-30060iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51682APLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-30040iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51963AHOOK, TRANSPORT, FRONT RH

main51963-30040iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

51964AHOOK, TRANSPORT, FRONT LH

main51964-30040iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

9011908677

main90119-08677

9011910495

main90119-10495

9015950153

main90159-50153

9017905004

main90179-05004

9095001411

main90950-01411

9095001647

main90950-01647

9095001648

main90950-01648

9095001649

main90950-01649

9165140820

main91651-40820

9165540820

main91655-40820

52 parts on this diagram · 3 diagrams in section
