Toyota CROWN — FOG LAMP

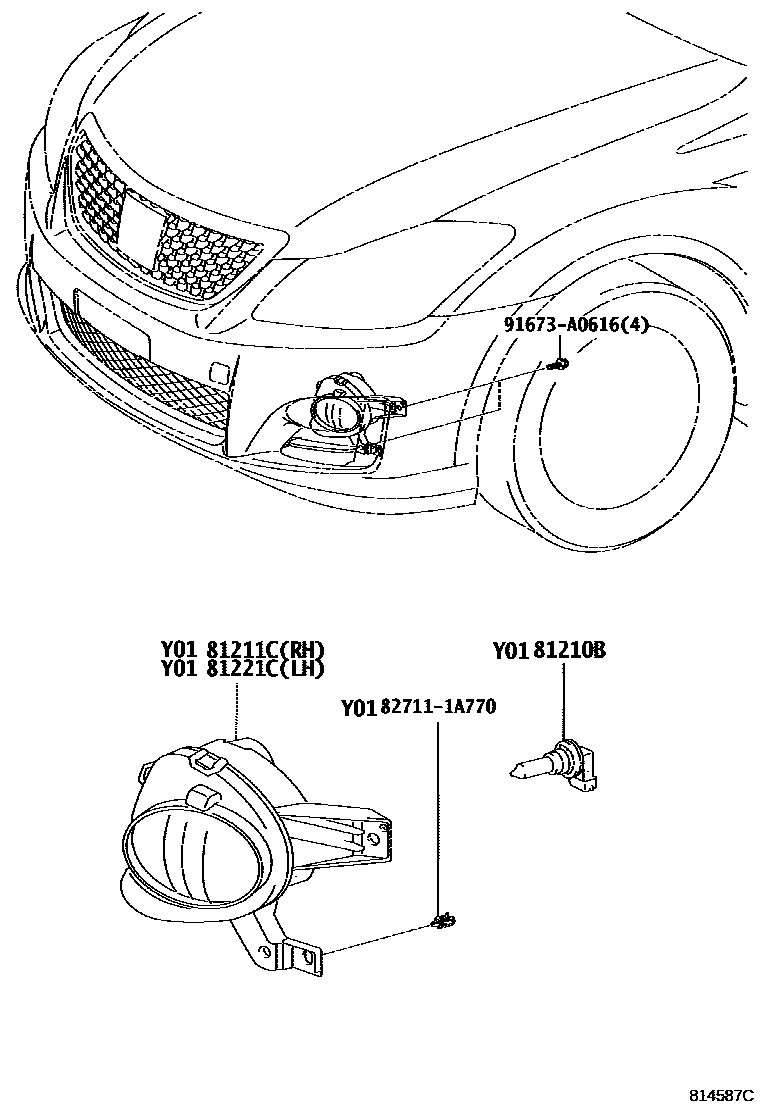

Parts diagram

81210BBULB, FOG LAMP

main90981-13083×2i200802-201002

81211CLAMP UNIT, FOG LAMP, RH

main81211-30320i200802-201002

main81211-30330i200802-201002

main81211-30350i201002-201212

main81211-30360i201002-201212

main81211-30400i201203-201212

81221CLAMP UNIT, FOG LAMP, LH

main81221-30290i200802-201002

main81221-30300i200802-201002

main81221-30320i201002-201212

main81221-30330i201002-201212

main81221-30350i201111-201204

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

91673A0616

main91673-A0616

5 parts on this diagram · 4 diagrams in section

FOG LAMP for Toyota CROWN

This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota CROWN. Key components include: BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, LAMP UNIT, FOG LAMP, LH, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
